5. System description
5.5

Electrical connections

5.5.1

Overview

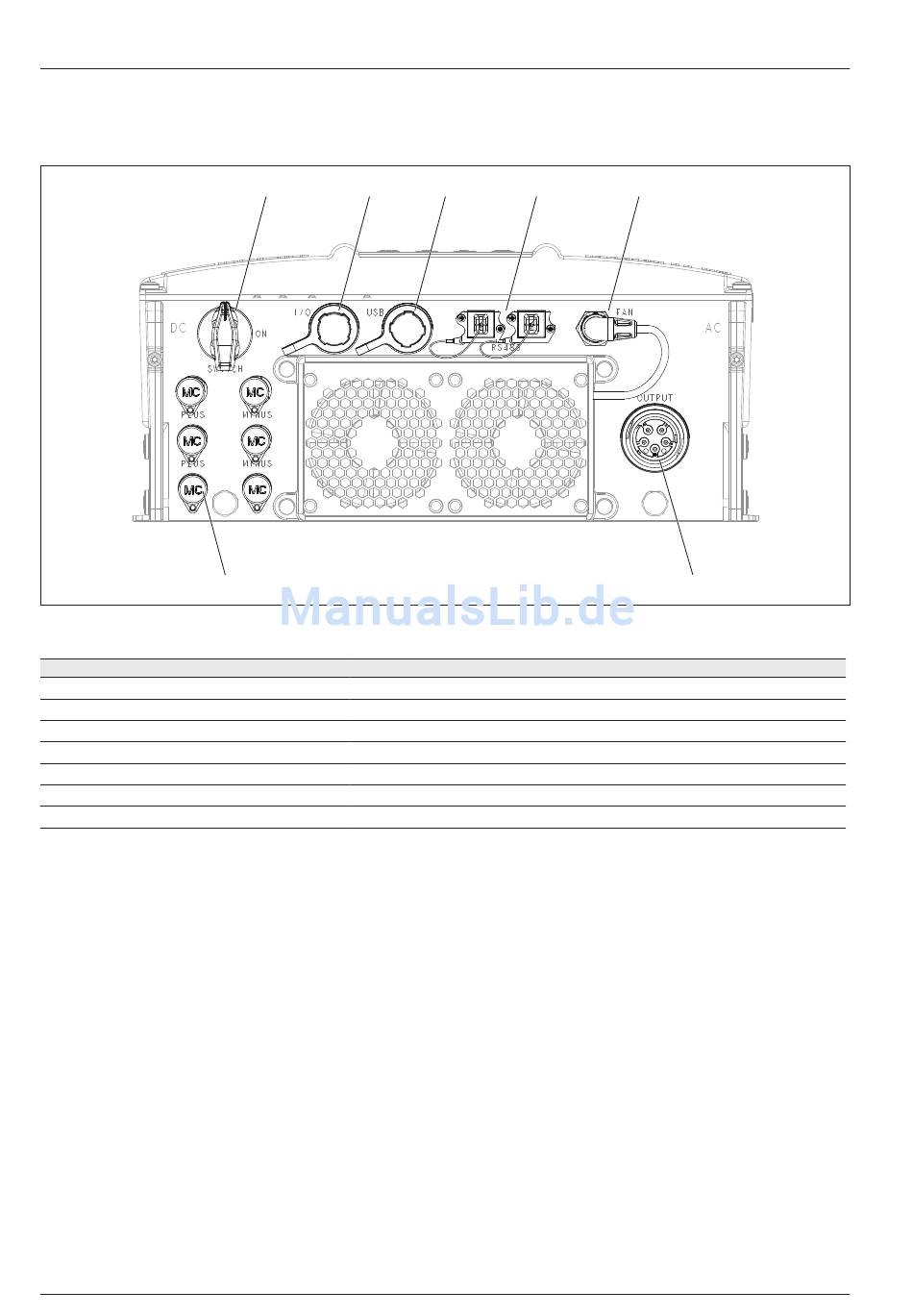

Fig. 5.6.: Electrical connections
No. Designation
DC connections
➀
AC connection
➁
Fan connection
➂
2 x RS485 interfaces
➃
USB interface
➄
I/O interface
➅
DC switch
➆
14
➆ ➅
➀
Description
"5.5.2 DC connections and DC switch", p. 15
"5.5.3 AC connection", p. 15
"5.6 Fan", p. 15
"5.5.4 RS485 interface (EIA485)", p. 15
"5.5.5 USB interface", p. 15
"5.5.6 I/O interface", p. 15
"5.5.2 DC connections and DC switch", p. 15
➄ ➃
Operation and installation manual for SOLIVIA 11 EU G4 TR
➂
➁
