System description

5.1

General overview

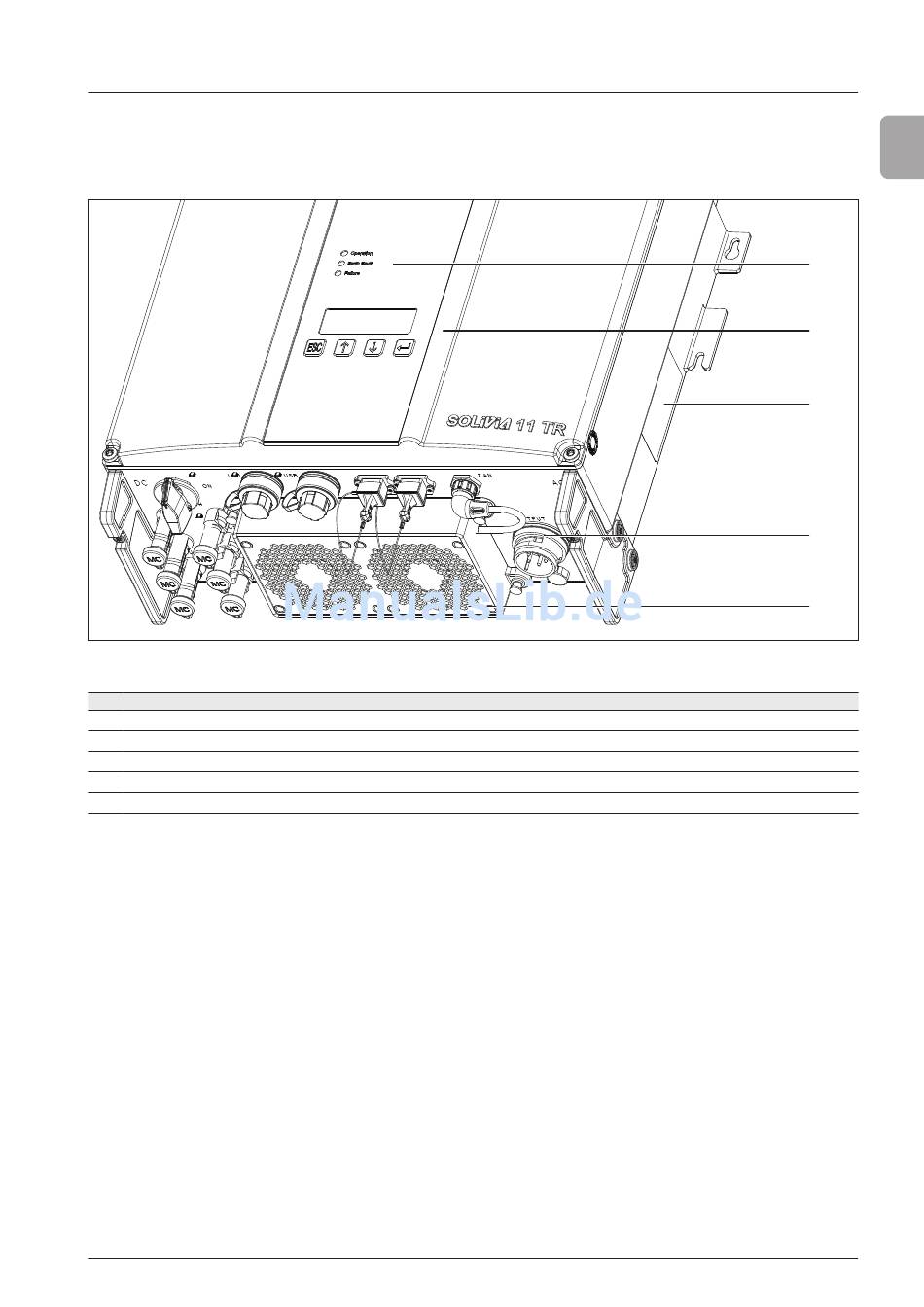

Fig. 5.1.: Components of the solar power inverter
No. Meaning
Status LEDs
➀
Display and buttons
➁
Type plate
➂
Electrical connections
➃
Fans
➄
Operation and installation manual for SOLIVIA 11 EU G4 TR
Description
"5.3 Status LEDs", p. 10
"5.4 Display and buttons", p. 10
"5.2 Type plate", p. 10
"5.5 Electrical connections", p. 14
"5.6 Fan", p. 15
5. System description
➀
➁
➂
➃
➄
