Adjustments

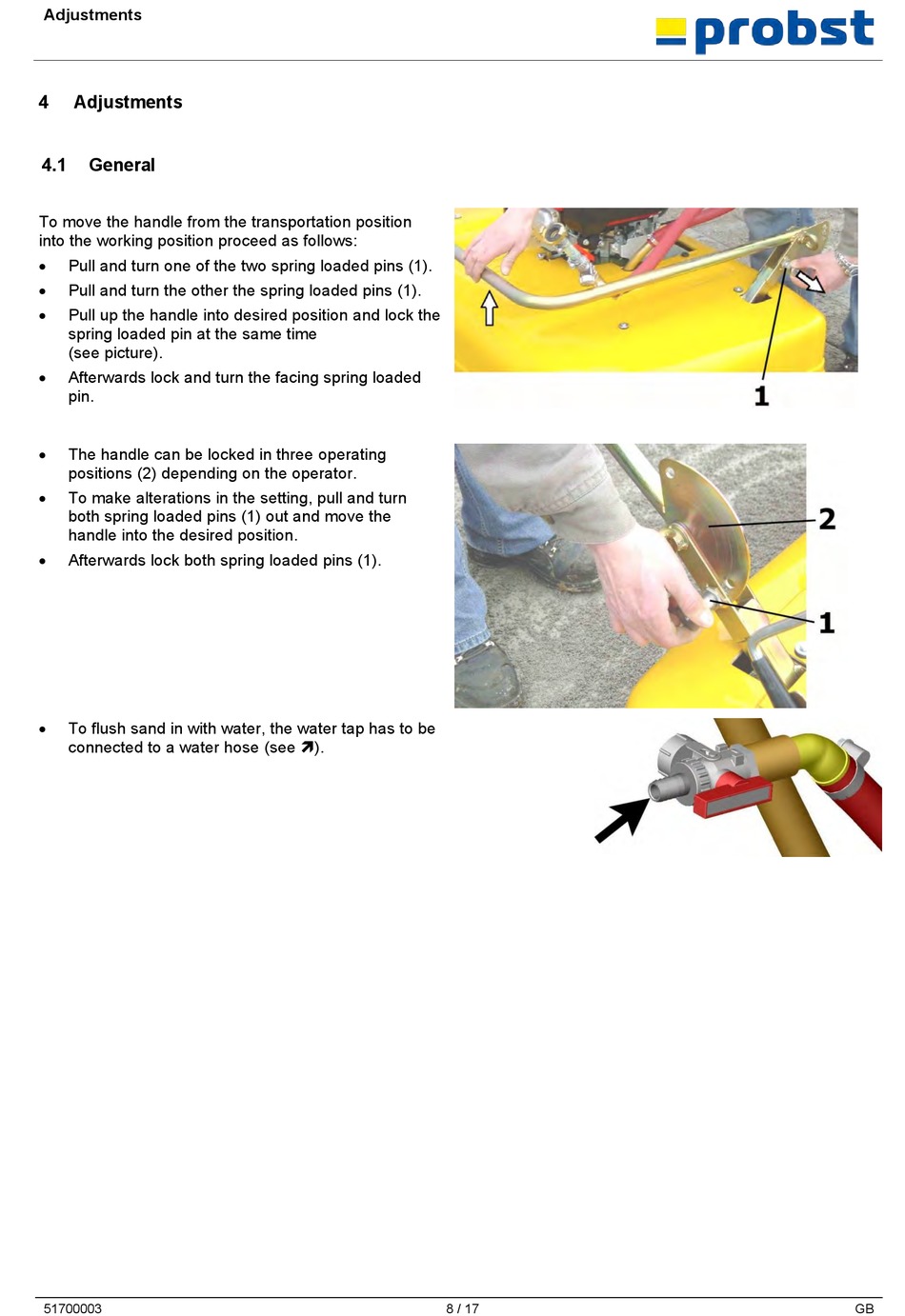

4 Adjustments
4.1

General

To move the handle from the transportation position
into the working position proceed as follows:
Pull and turn one of the two spring loaded pins (1).
•
Pull and turn the other the spring loaded pins (1).
•
• Pull up the handle into desired position and lock the
spring loaded pin at the same time
(see picture).
• Afterwards lock and turn the facing spring loaded
pin.
• The handle can be locked in three operating
positions (2) depending on the operator.
To make alterations in the setting, pull and turn
•
both spring loaded pins (1) out and move the
handle into the desired position.
Afterwards lock both spring loaded pins (1).
•
To flush sand in with water, the water tap has to be
•
connected to a water hose (see ).
51700003 8 / 17 GB
