8. FLYWHEEL BRAKE (Models equipped)

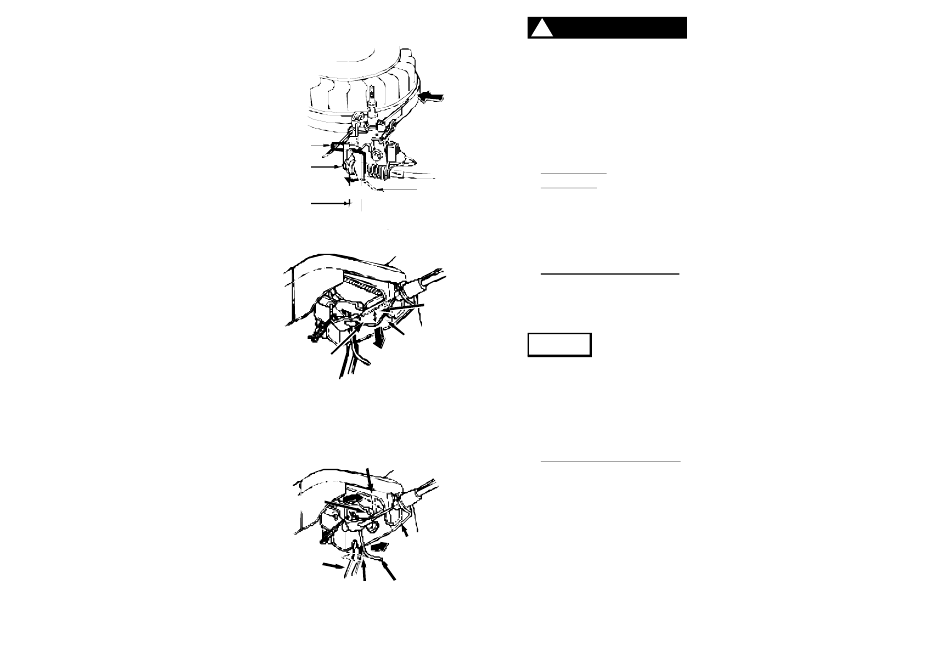

operation inspection
1.Release the flywheel brake lever
(located on equipment) and verify
that there is a strong resistance
when pulling on the recoil starter.
Also, verify that the governor arm (1)
is moved to the idle (slow) position
and there is freeplay in the brake
cable head (2) (GXV140) or the
cable deflects (6) 10 - 15 mm from
centerline as shown (4) when the
cable is new (GXV160K1).
2.Engage the flywheel brake lever to
release the flywheel brake and
verify that there is clearance (5)
between the governor arm and the
throttle return rod (3) when the
throttle is in the fast (or high)
position.
CAUTION :
• If necessary, the adjustment of the
flywheel brake system should be
made by an authorized Honda
dealer.

9. PRE-OPERATION CHECKS

Always check the following items
before you start the engine:
1.Fuel level (see page 16).
2.Oil level (see page 18).
3.Air cleaner (see page 20).
4.General inspection: check for fluid
leaks and loose or damaged parts.
(3)
(2)
(1)
(6)
GXV160K1
2 mm
BUTEE
BRAKE
CABLE
BRACKET
(1)
( 3 )
(5)
GXV160K1
7
! WARNING:
Read your equip ment user's instruction before operating the
engine

10. OPERATION

Starting
1.Turn the fuel shut-off valve:
GXV160K 1: Turn the fuel valve to the ON position.
GXV140: The fuel cock opens automatically.
(5)
2.Place the throttle lever :
Move the throttle control to the choke position. Do not use the
choke when the engine is warm. Move the throttle control slightly
past the idle position.
3.Flywheel brake model:
Move the flywheel brake (located on equipment) to release the

flywheel brake.

(4)
4.Pull the starter grip lightly until resistance is felt, then pull briskly.
NOTE
BRAKE
CABLE
Do not allow the starter grip to snap back against the engine.
Return it gently to prevent damage to the starter.
5.If the choke was used to start the engine, move the throttle to the
fast (or high) position as soon as the engine warms up enough to
run smoothly without use of the choke.
Flywheel brake model: Continue to hold the flywheel brake lever
(located on equipment).
The engine will stop if you release the flywheel brake lever.

Throttle lever

1.Position the throttle control for the desired engine speed. For
best engine performance, it is recommended that the engine be
operated with the throttle in the fast (or high) position.
CAUTION :
• For safety reasons, the maximum operating speed must be
adjusted with a special tool. Please consult your authorized
Honda dealer for this operation.
8
