Adjustments

3 Adjustments
3.1

General

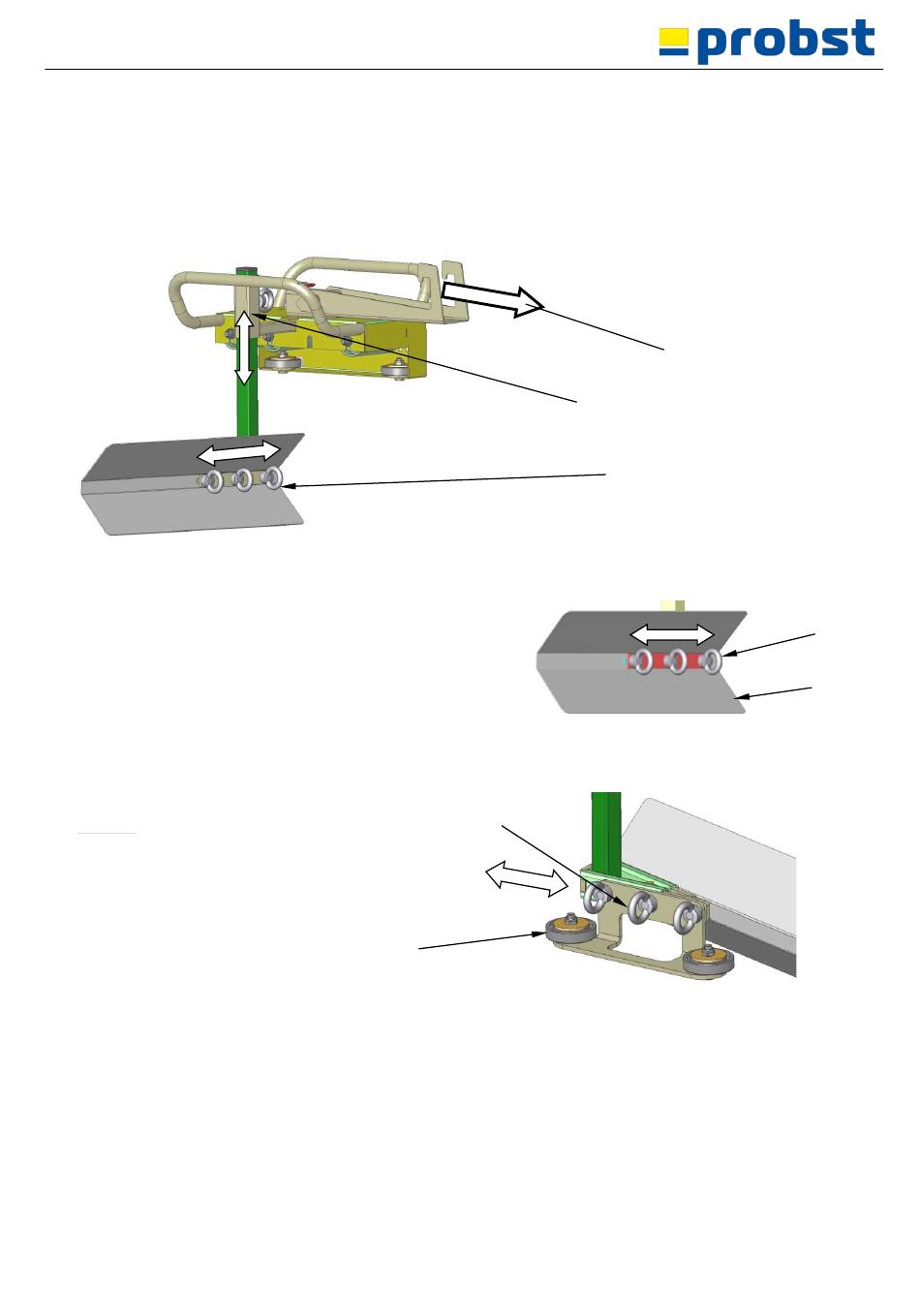

The device (RF-H) must be adjusted to the concrete subgrade removal height, concrete subgrade width and
kerbstone width before starting work. Caution: Risk of injury to hands!
3.1.1

Setting for concrete kerbs

•
Remove all three eyebolts (1).
Adjust to the specific width of the curb by sliding the puller
plate (2) back and forth.
•
Tighten the eyebolts (1) again.
3.1.2

Adjustment support rollers

The support roller (3) (rear side of the pull-off plate (2)
must be in direct contact with the curb as support for
the unit (RF-H).
Adjustment: loosen all 3 eyebolts (5); move support
roller (3) and tighten all 3 eyebolts (5) again.
51000064
5
3
7 / 11
Pulling direction
Adjustment of pull-off height
Setting for kerb width
1
2
