Technical Instructions

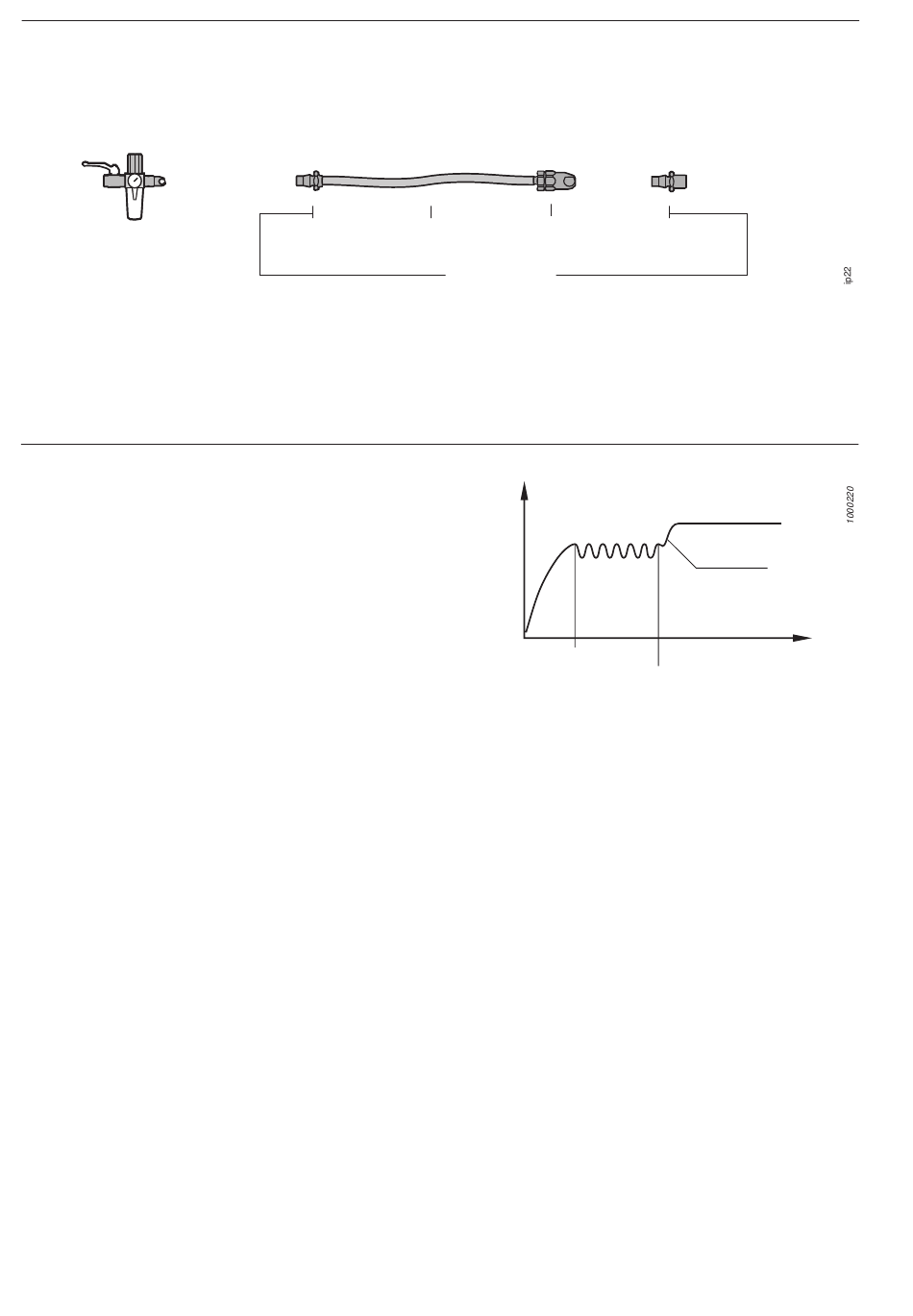

Fig. 27 Hose size
All models
BALL VALVE +
MIDI F/R 15 +
ERGOQIC 10
Fig. 28 Reporting, RE – signal, RE-versions
This RE-machine supplies an air pressure signal which can be
connected to a control unit to count the number of correct tightenings
and to detect premature shut offs, rehits and other improper
tightenings.
The RE-signal is received by using the nipple, the hose and the
connection, fig. 6, to the sensor of the control unit.
38
Installation proposal for a recommended air flow up to 8 l /s
Ordering No. see below.
For more information, please read Atlas Copco Airline Installations,
Ordering No. 9833 1191 01
ERGONIP 10
5 m CABLAIR 08
Atlas Copco Tools - No. 9836 1682 03
ERGOQIC 08
8202 1180 77
Air
pressure
Start pulsing
Air shut off
EP5/6PTS HRX
ERGONIP 08
Male 1/4" BSP
RE–signal
Time
