EP5/6PTS HRX

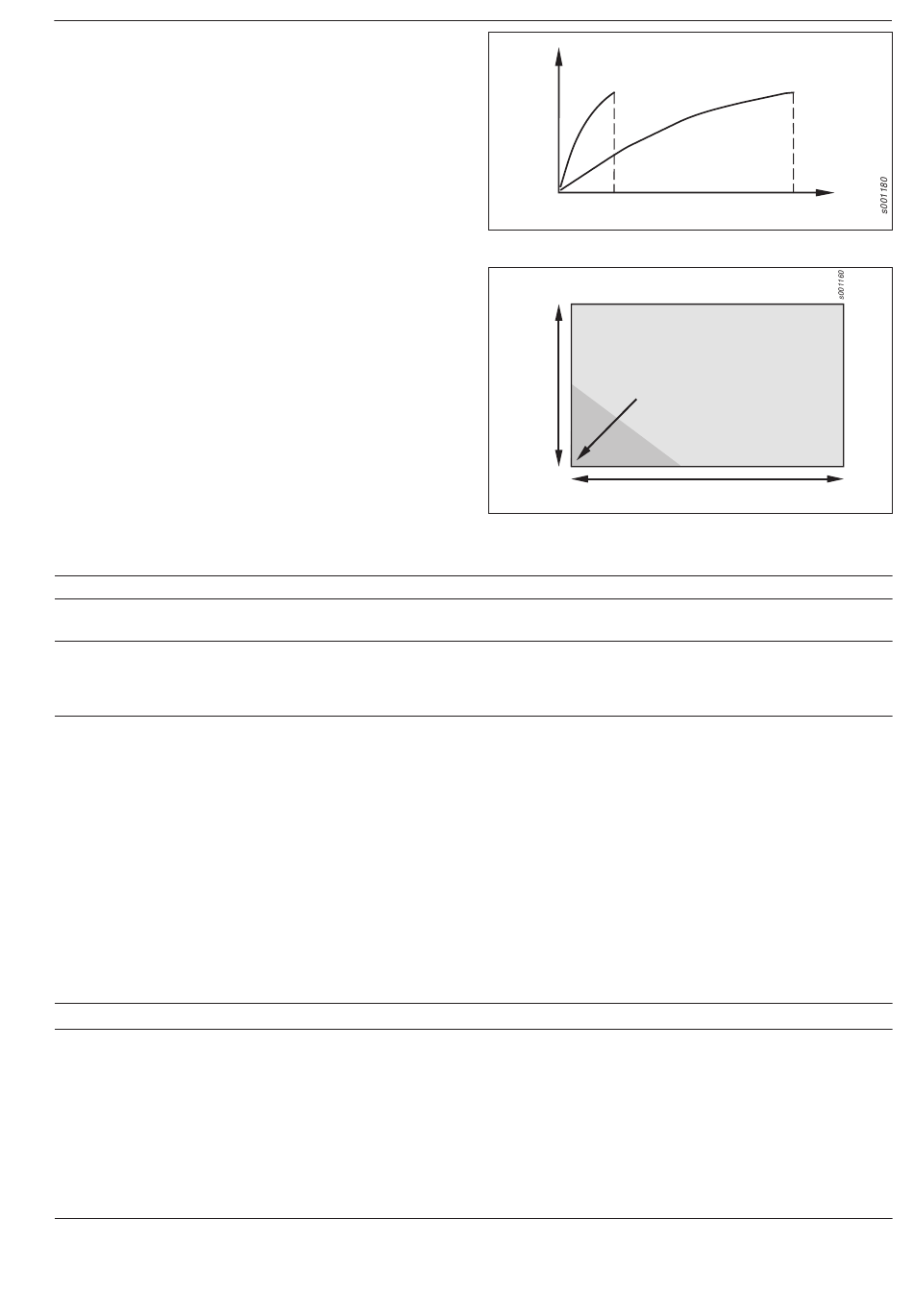

Fig. 18
Type of joint (Hard or Soft)
The tightening time (i.e. the number of pulses per tightening) is
depending on joint hardness. Hard joints gives short and soft joint
longer operation time, see fig.
Max. recommended tightening time is 3 seconds.
Min. recommended number of pulses per tightening is 3-5.
An increased number of pulses per tightening implies an improved
accuracy. Fewer pulses per tightening implies an increased scatter.
Fig. 19
Operating area
Max. recommended tightening time is 3 seconds. Longer time
indicates that the joint is too soft for the machine used. If so it is
recommended to choose a bigger size of machine or another type of
nutrunner.
Min. recommended number of pulses per tightening is 3-5.
In case with few pulses per tightening (low settings and on hard joints
- shaded area ), accuracy can be improved by.
- – Reducing free speed even further
– Reducing pulsing power = more pulses (only AT-versions)
Trouble shooting
Fault
The preset torque is decreasing and the
pulse frequency is slightly increasing
The machine does not reach the
expected torque
The machine does not shut off
Pulse frequency too low or too high
Accuracy not as good as expected
Torque
Cause
Low oil level in the pulse unit ?
Too soft joint ?
The yield point of the joint's screw
has been reached ?
Air pressure at the machine too low ?
Torque adjusting screw is set in a
too deep position ?
Stop pin is not correctly adjusted ?
Incorrect oil volume in pulse unit ?
Too soft joint ?
Too low rotary speed ?
Only AT versions: Auto Trim valve is not
operating correct
Incorrect oil volume in pulse unit ?
Very hard joint and min. torque setting ?
Too soft joint and max. torque setting ?
Stop pin is not correctly adjusted ?
Only AT versions: Auto Trim valve is not
operating correct
Atlas Copco Tools - No. 9836 1682 03
Hard joint
No. of pulses per tightening / Time
Max.
Recommended Operating Area
setting
T
o
r
q
u
e
Min.
setting
Hard joint Tightening
angle approx. 30°
Remedy
Refill oil according to fig. 20
See fig.19, Operating area. A bigger machine ?
Check the torque adjustment and the joint's
screw quality
Check the dimension of the hose and
coupling, increase air pressure
Adjust counter clockwise until the shut off is
distinct
Adjust according to the instructions, fig. 21
Refill oil according to fig. 20
Choose a bigger machine
Check the vane motor assembly - Check setting
of Trim valve
See Trouble Shooting - Auto Trim
Refill oil according to fig. 20
Check the setting of the Trim / AutoTrim valve,
fig. 19 Operating area
Check the setting of the Trim / AutoTrim valve.
Choose a bigger machine, fig. 19 Operating
area
Adjust according to the instructions, fig. 21
See Trouble Shooting - Auto Trim
Technical Instructions
Soft joint
Soft joint Tightening
angle approx. 300°
33
