Multi-line building package
MSH Basic FUBO SR4 BHP

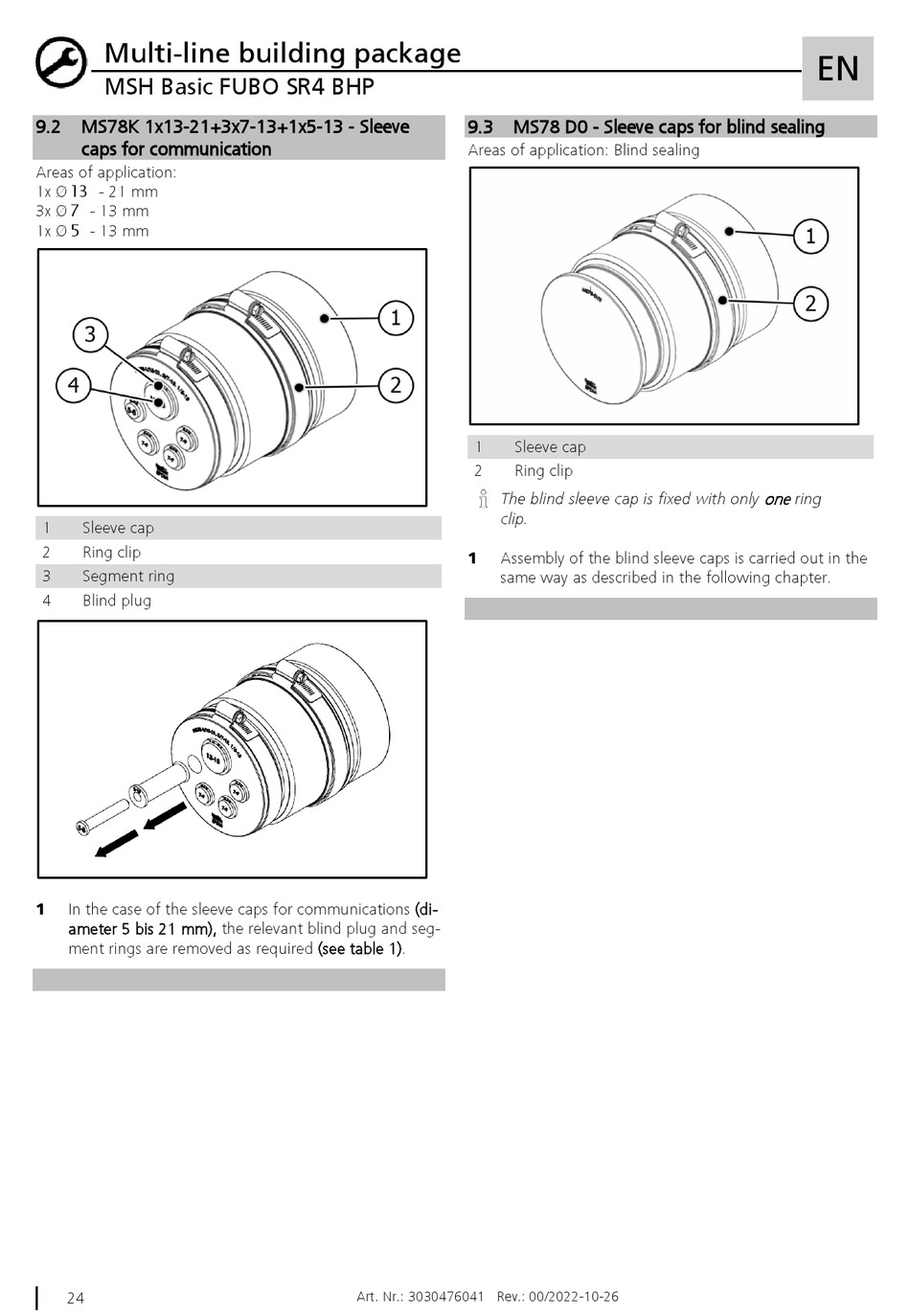

9.2 MS78K 1x13-21+3x7-13+1x5-13 - Sleeve
caps for communication
Areas of application:
1x Ø 13 - 21 mm
3x Ø 7 - 13 mm
1x Ø 5 - 13 mm
1 Sleeve cap
2 Ring clip
3 Segment ring
4 Blind plug
1 In the case of the sleeve caps for communications (di-
ameter 5 bis 21 mm), the relevant blind plug and seg-
ment rings are removed as required (see table 1).
24
9.3

MS78 D0 - Sleeve caps for blind sealing

Areas of application: Blind sealing
1 Sleeve cap
2 Ring clip
The blind sleeve cap is fixed with only
clip.
1 Assembly of the blind sleeve caps is carried out in the
same way as described in the following chapter.
Art. Nr.: 3030476041 Rev.: 00/2022-10-26
EN
one
ring
