Dimensions Of Msh Basic Fubo Sr4 Bhp (Basic Unit); Preparing For Installation; Installing The Basic Unit - Hauff-Technik MSH Basic FUBO SR4 BHP Montageanleitung

Multi-line building package
MSH Basic FUBO SR4 BHP

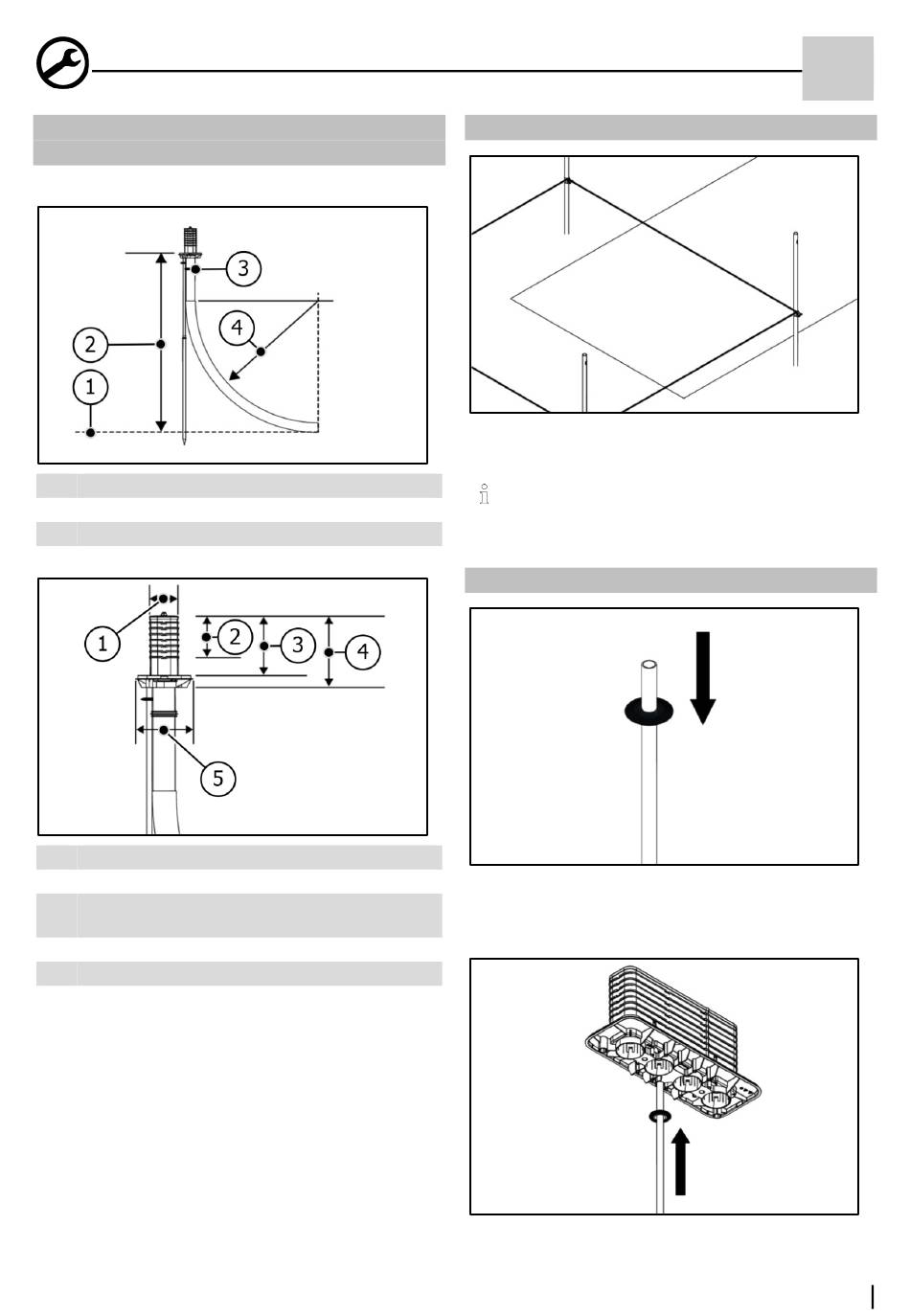

5 Dimensions of MSH Basic FUBO SR4 BHP
(basic unit)
Dimensions: MSH Basic FUBO SR4 BHP
1 Trench bottom
2 1500 mm
3 3-ribbed seal (adjustable)
4 Bend radius ≥1000 mm
1 L: 479 mm / W: 116 mm
2 155 mm range for shortening
3 Marking for upper unfinished floor edge ("OKRF")
225 mm, corresponds to upper flange edge
4 Basic unit H: 270 mm
5 Basic unit flange L: 579 mm / W: 216 mm
Art. Nr.: 3030476041 Rev.: 00/2022-10-26

6 Preparing for installation

1 For accurate positioning of the basic unit, a batter
board must be prepared on site.
The line ideally identifies both the upper edge of
the unfinished floor, as well as the wall inside
surface.

7 Installing the basic unit

1 Position the pre-assembled water barrier flange on
the installation fixture, approx. 15 cm from the edge
of the pipe.
