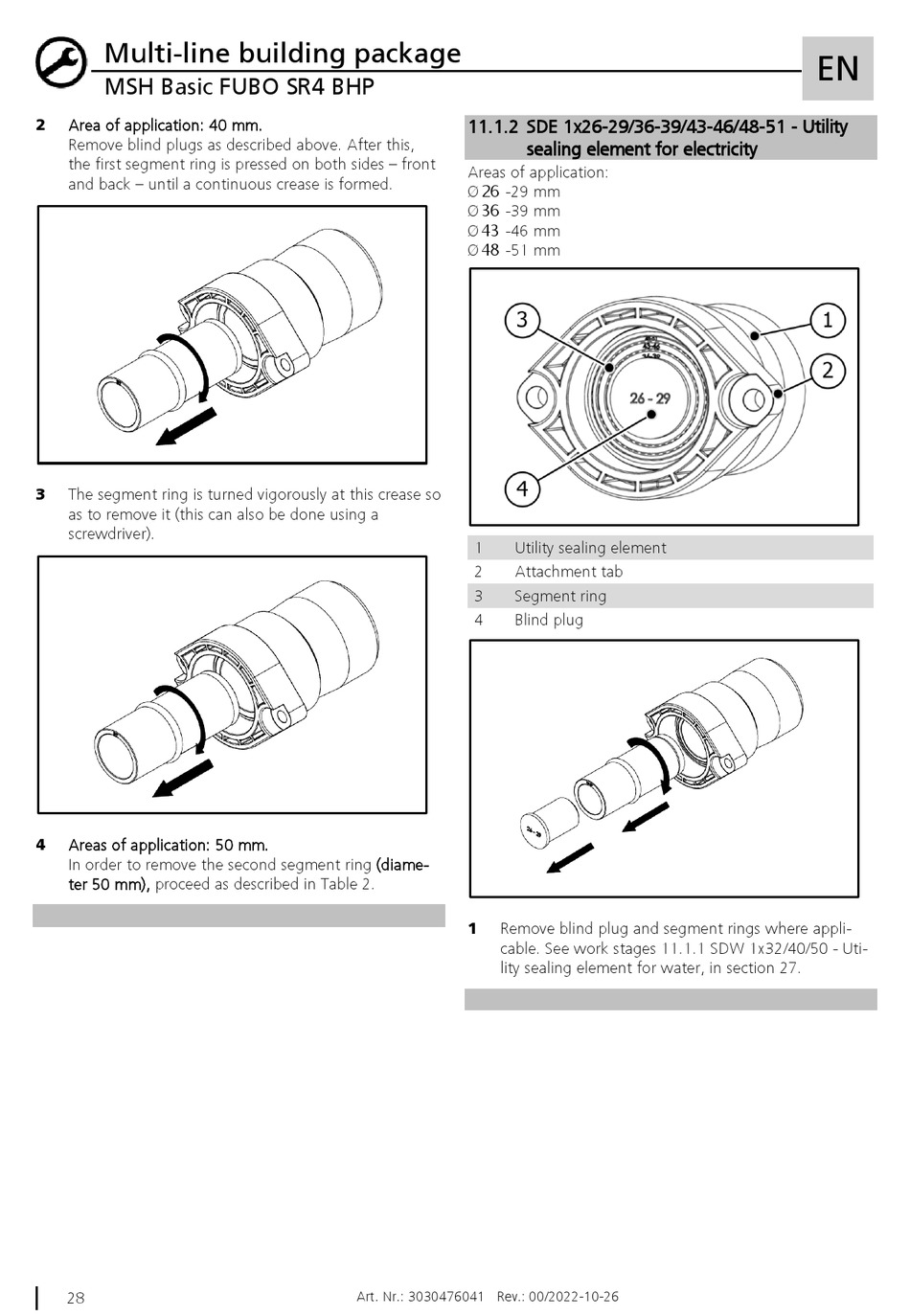

Multi-line building package
MSH Basic FUBO SR4 BHP
2 Area of application: 40 mm.
Remove blind plugs as described above. After this,
the first segment ring is pressed on both sides – front
and back – until a continuous crease is formed.
3 The segment ring is turned vigorously at this crease so
as to remove it (this can also be done using a
screwdriver).
4 Areas of application: 50 mm.
In order to remove the second segment ring (diame-
ter 50 mm), proceed as described in Table 2.
28
11.1.2 SDE 1x26-29/36-39/43-46/48-51 - Utility
sealing element for electricity
Areas of application:
Ø 26 -29 mm
Ø 36 -39 mm
Ø 43 -46 mm
Ø 48 -51 mm
1 Utility sealing element
2 Attachment tab
3 Segment ring
4 Blind plug
1 Remove blind plug and segment rings where appli-
cable. See work stages 11.1.1 SDW 1x32/40/50 - Uti-
lity sealing element for water, in section 27.
Art. Nr.: 3030476041 Rev.: 00/2022-10-26
