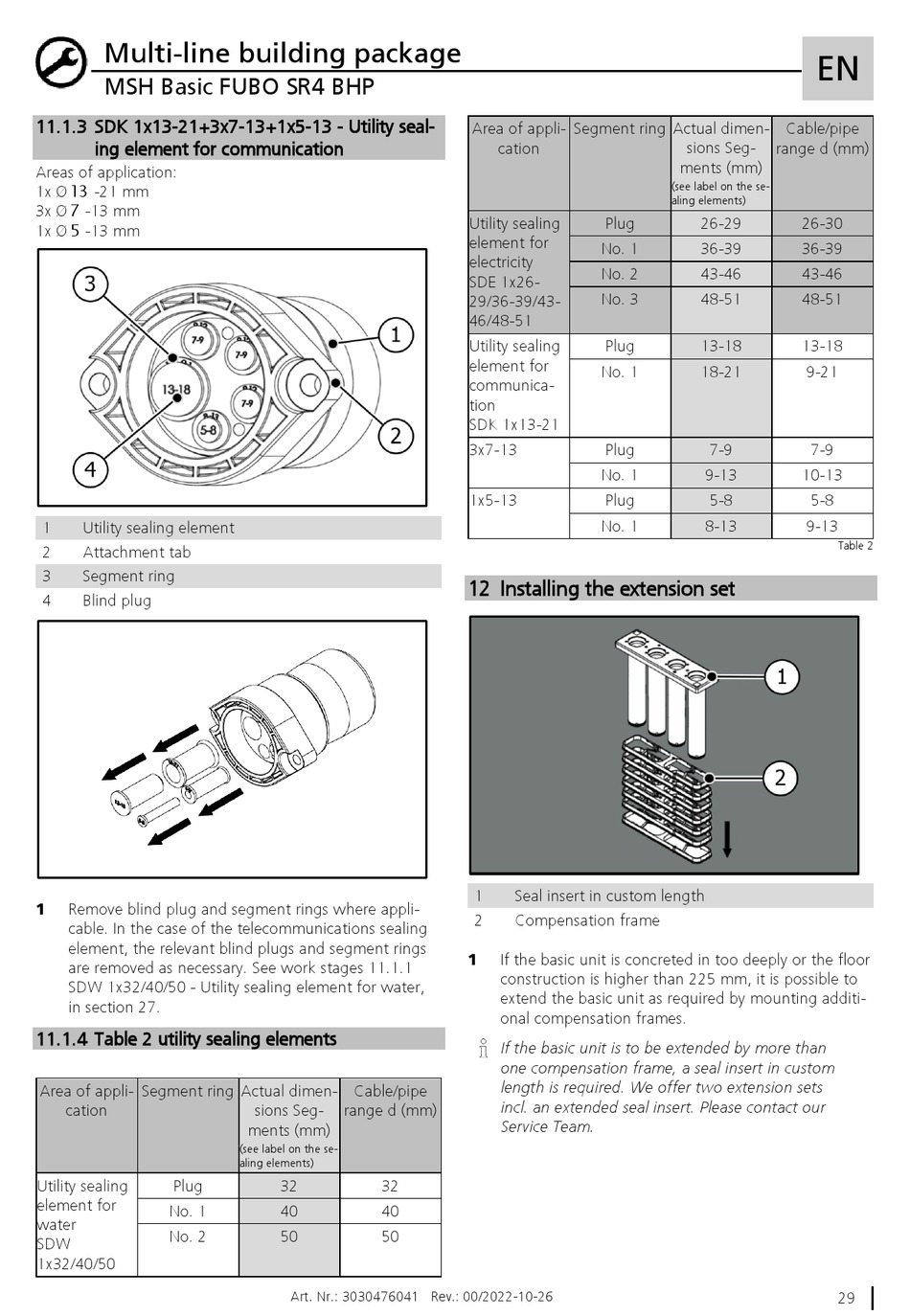

Multi-line building package
MSH Basic FUBO SR4 BHP
11.1.3 SDK 1x13-21+3x7-13+1x5-13 - Utility seal-
ing element for communication
Areas of application:
1x Ø 13 -21 mm
3x Ø 7 -13 mm
1x Ø 5 -13 mm
1 Utility sealing element
2 Attachment tab
3 Segment ring
4 Blind plug
1 Remove blind plug and segment rings where appli-
cable. In the case of the telecommunications sealing
element, the relevant blind plugs and segment rings
are removed as necessary. See work stages 11.1.1
SDW 1x32/40/50 - Utility sealing element for water,
in section 27.
11.1.4 Table 2 utility sealing elements
Area of appli- Segment ring Actual dimen-
cation
Utility sealing Plug
element for
No. 1
water
No. 2
SDW
1x32/40/50
Cable/pipe
sions Seg- range d (mm)
ments (mm)
(see label on the se-
aling elements)
32 32
40 40
50 50
Art. Nr.: 3030476041 Rev.: 00/2022-10-26
Area of appli- Segment ring Actual dimen-
cation
Utility sealing Plug
element for
No. 1
electricity
No. 2
SDE 1x26-
No. 3
29/36-39/43-
46/48-51
Utility sealing Plug
element for
No. 1
communica-
tion
SDK 1x13-21
3x7-13 Plug
No. 1
1x5-13 Plug
No. 1

12 Installing the extension set

1 Seal insert in custom length
2 Compensation frame
1 If the basic unit is concreted in too deeply or the floor
construction is higher than 225 mm, it is possible to
extend the basic unit as required by mounting additi-
onal compensation frames.
If the basic unit is to be extended by more than
one compensation frame, a seal insert in custom
length is required. We offer two extension sets
incl. an extended seal insert. Please contact our
Service Team.
EN
Cable/pipe
sions Seg- range d (mm)
ments (mm)
(see label on the se-
aling elements)
26-29 26-30
36-39 36-39
43-46 43-46
48-51 48-51
13-18 13-18
18-21 9-21
7-9 7-9
9-13 10-13
5-8 5-8
8-13 9-13
Table 2
