Multi-line building package
MSH Basic FUBO SR4 BHP

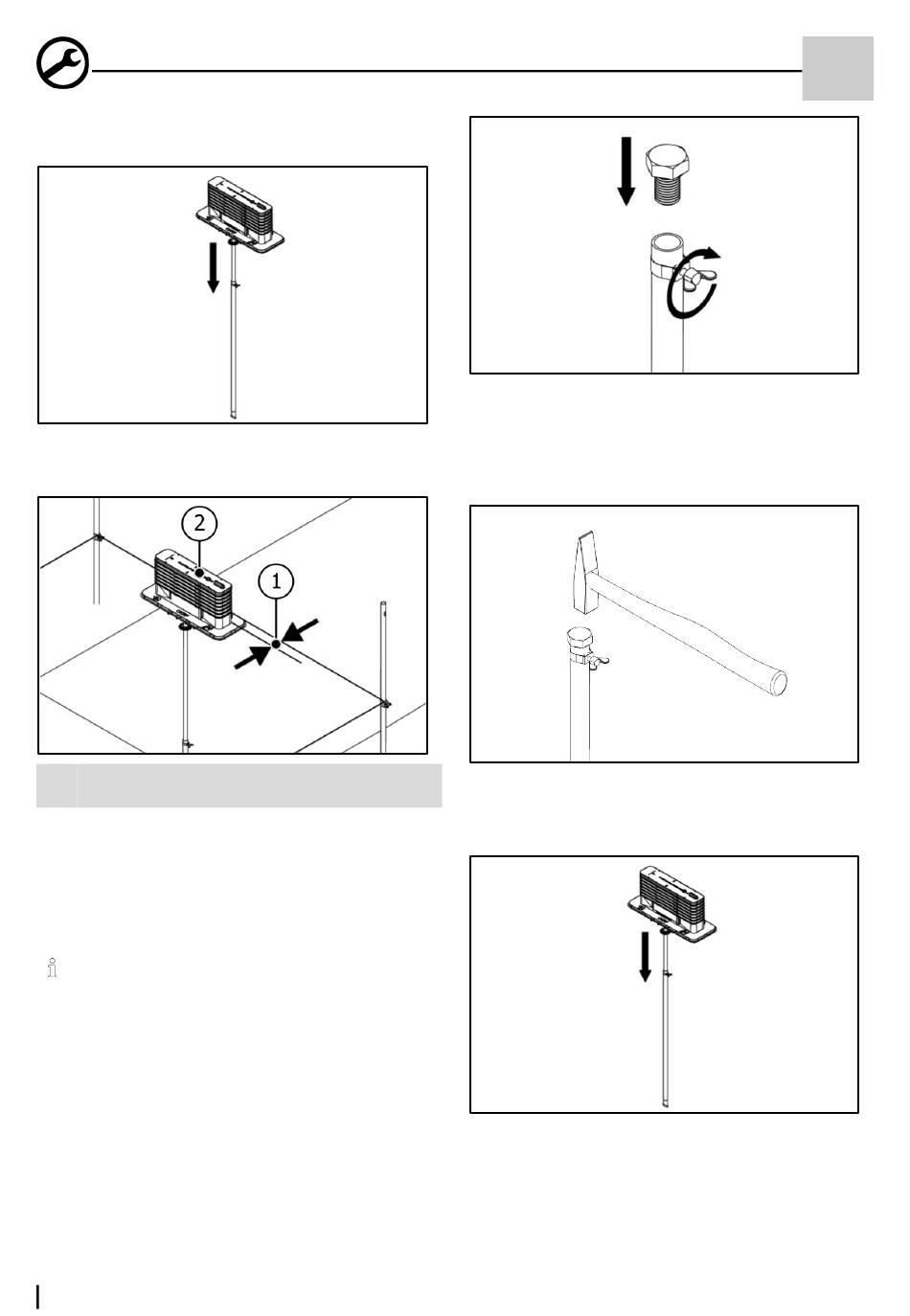

2 Push in the adjustable installation fixture into the ba-
sic unit.
3 Fit the basic unit and installation fixture together and
fasten with the wing screw.
1 Flange of basic unit corresponds to 5 cm
(clearance to wall inside surface incl. plasterwork)
2 Level
4 Longitudinally align the basic unit with the installation
fixture based on the placement on the batter board
and position. Align the basic unit level horizontally
with the spirit level and insert it into the ground. The
precise height is not yet important.
• Arrangement must be parallel to the wall.
• The flange of the basic unit corresponds preci-
sely to the minimum clearance
side surface (finished, plastered wall) of
• The position must be agreed upon with the
energy suppliers.
• The basic unit must not be covered by the in-
ner walls later (shell wall + plaster).
• When positioning the multi-line building entry,
care must be taken to ensure that the installa-
tion fixture does not hinder the empty conduit
route (spiral hose).
20
5
6
to the wall in-
5 cm
.
7
Art. Nr.: 3030476041 Rev.: 00/2022-10-26
Loosen the wing screw, hold the ground spike firmly
in place and detach the basic unit.
Take the impact screw included in the scope of
supply, insert it into the ground spike and fasten in
place using the wing screw.
Strike the ground spike to a depth of approx. 300
mm or until it firmly holds in place.
Then remove the impact screw.
Place the basic unit on the spike that has been driven
into the ground. Then align the upper edge of the
flange (see "OKRF" marking or yellow sticker) parallel
and in terms of height with the batter board (to the
upper edge of the unfinished floor). After the height
