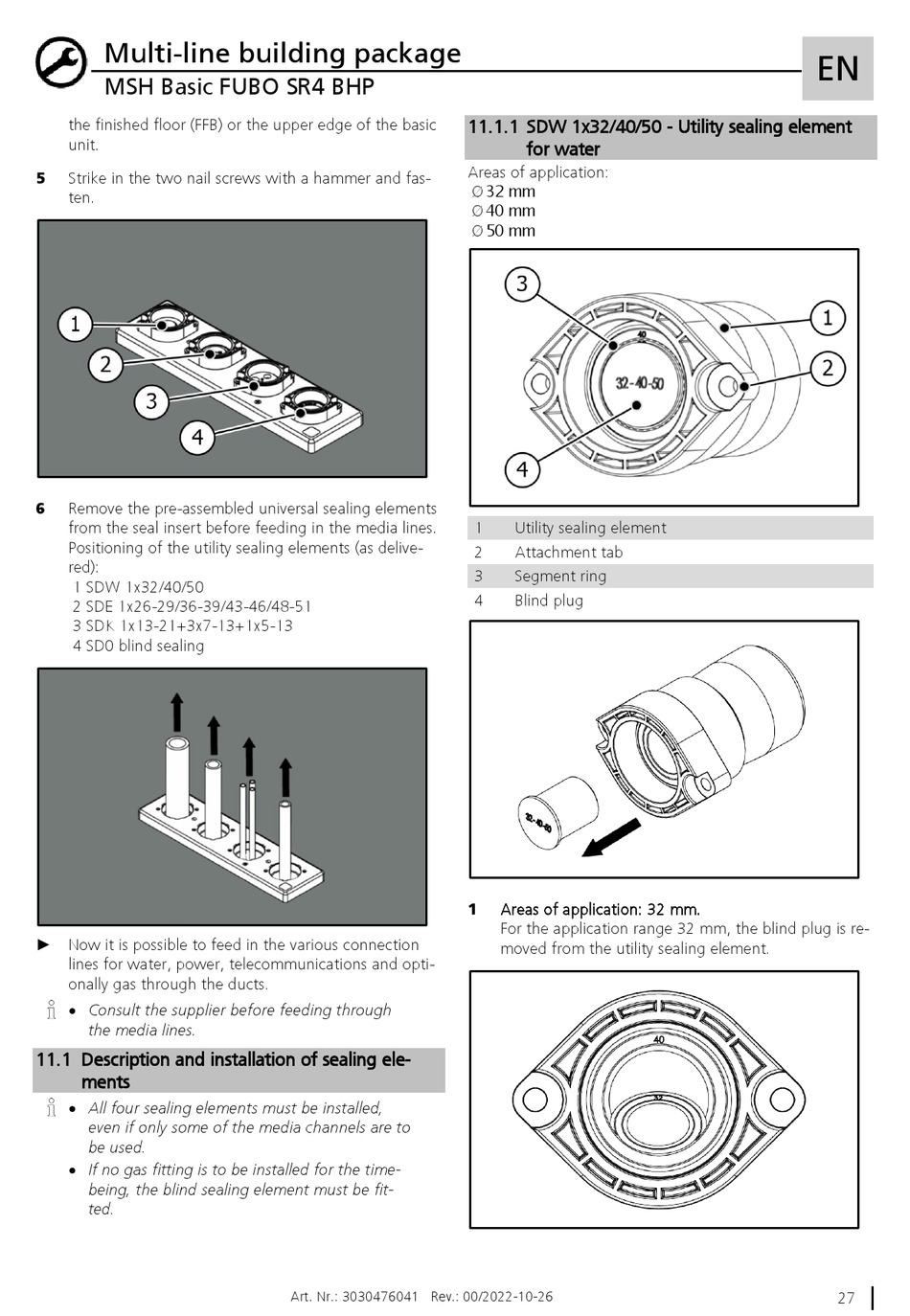

Multi-line building package
MSH Basic FUBO SR4 BHP
the finished floor (FFB) or the upper edge of the basic
unit.
5 Strike in the two nail screws with a hammer and fas-
ten.
6 Remove the pre-assembled universal sealing elements
from the seal insert before feeding in the media lines.
Positioning of the utility sealing elements (as delive-
red):
1 SDW 1x32/40/50
2 SDE 1x26-29/36-39/43-46/48-51
3 SDK 1x13-21+3x7-13+1x5-13
4 SD0 blind sealing
► Now it is possible to feed in the various connection
lines for water, power, telecommunications and opti-
onally gas through the ducts.
• Consult the supplier before feeding through
the media lines.
11.1 Description and installation of sealing ele-
ments
• All four sealing elements must be installed,
even if only some of the media channels are to
be used.
• If no gas fitting is to be installed for the time-
being, the blind sealing element must be fit-
ted.
Art. Nr.: 3030476041 Rev.: 00/2022-10-26
11.1.1 SDW 1x32/40/50 - Utility sealing element
for water
Areas of application:
Ø 32 mm
Ø 40 mm
Ø 50 mm
1 Utility sealing element
2 Attachment tab
3 Segment ring
4 Blind plug
1 Areas of application: 32 mm.
For the application range 32 mm, the blind plug is re-
moved from the utility sealing element.
