Inspection And Maintenance - Optimum OPTIdrill D 17Pro Betriebsanleitung

WARNING!
Before starting the machine you must be sure that
no dangers generated for persons,

the machine is not damaged.

6.2

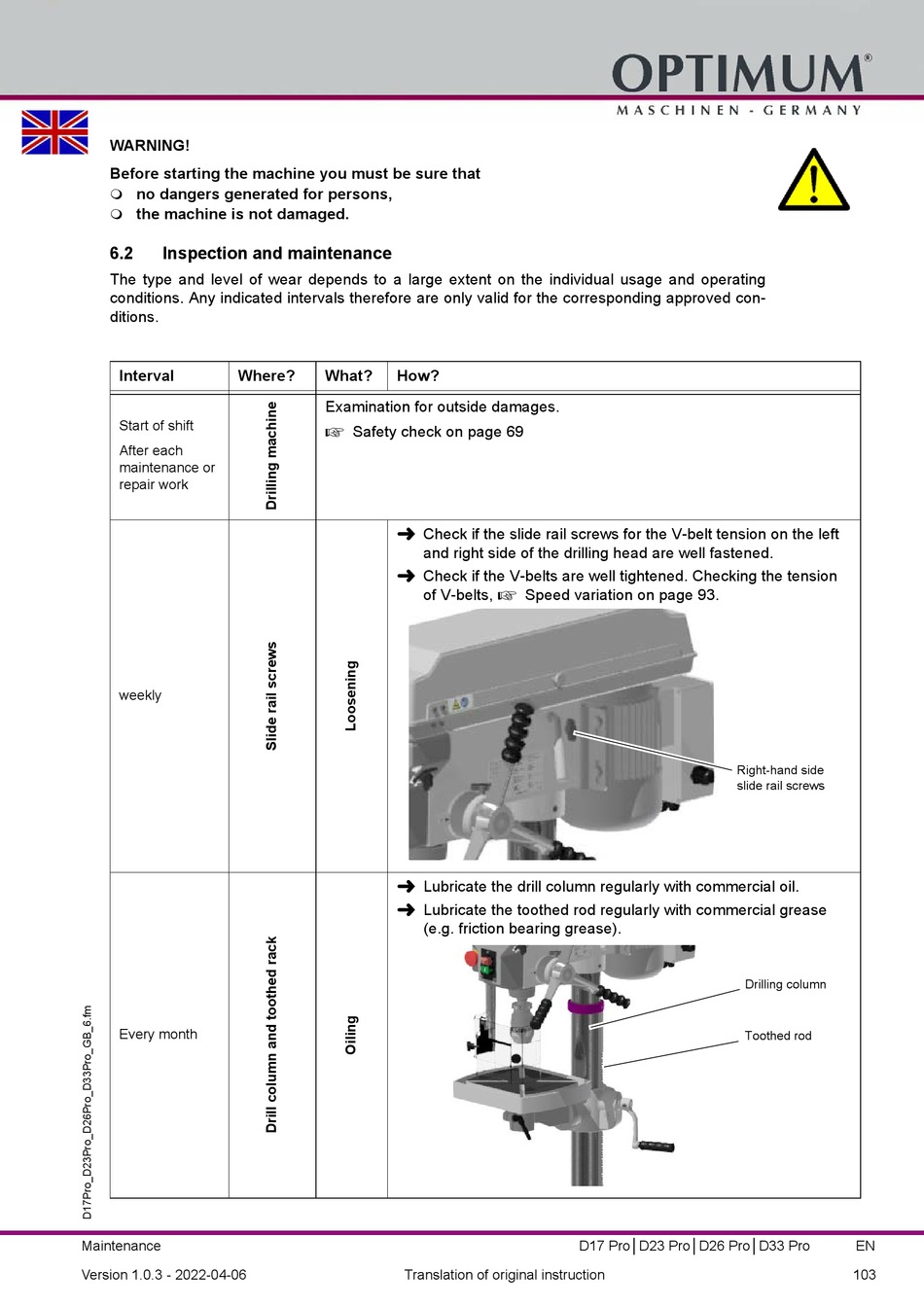

Inspection and maintenance

The type and level of wear depends to a large extent on the individual usage and operating
conditions. Any indicated intervals therefore are only valid for the corresponding approved con-
ditions.
Interval Where?
Start of shift
After each 
maintenance or
repair work
weekly
Every month
Maintenance
Version 1.0.3 - 2022-04-06
What? How?
Examination for outside damages.

Safety check on page 69

Check if the slide rail screws for the V-belt tension on the left
and right side of the drilling head are well fastened.

Check if the V-belts are well tightened. Checking the tension

of V-belts,

Lubricate the drill column regularly with commercial oil.

Lubricate the toothed rod regularly with commercial grease
(e.g. friction bearing grease).
Translation of original instruction
Speed variation on page 93.
D17 Pro│D23 Pro│D26 Pro│D33 Pro

Right-hand side
slide rail screws

Drilling column
Toothed rod
EN
103
