Mechanical installation

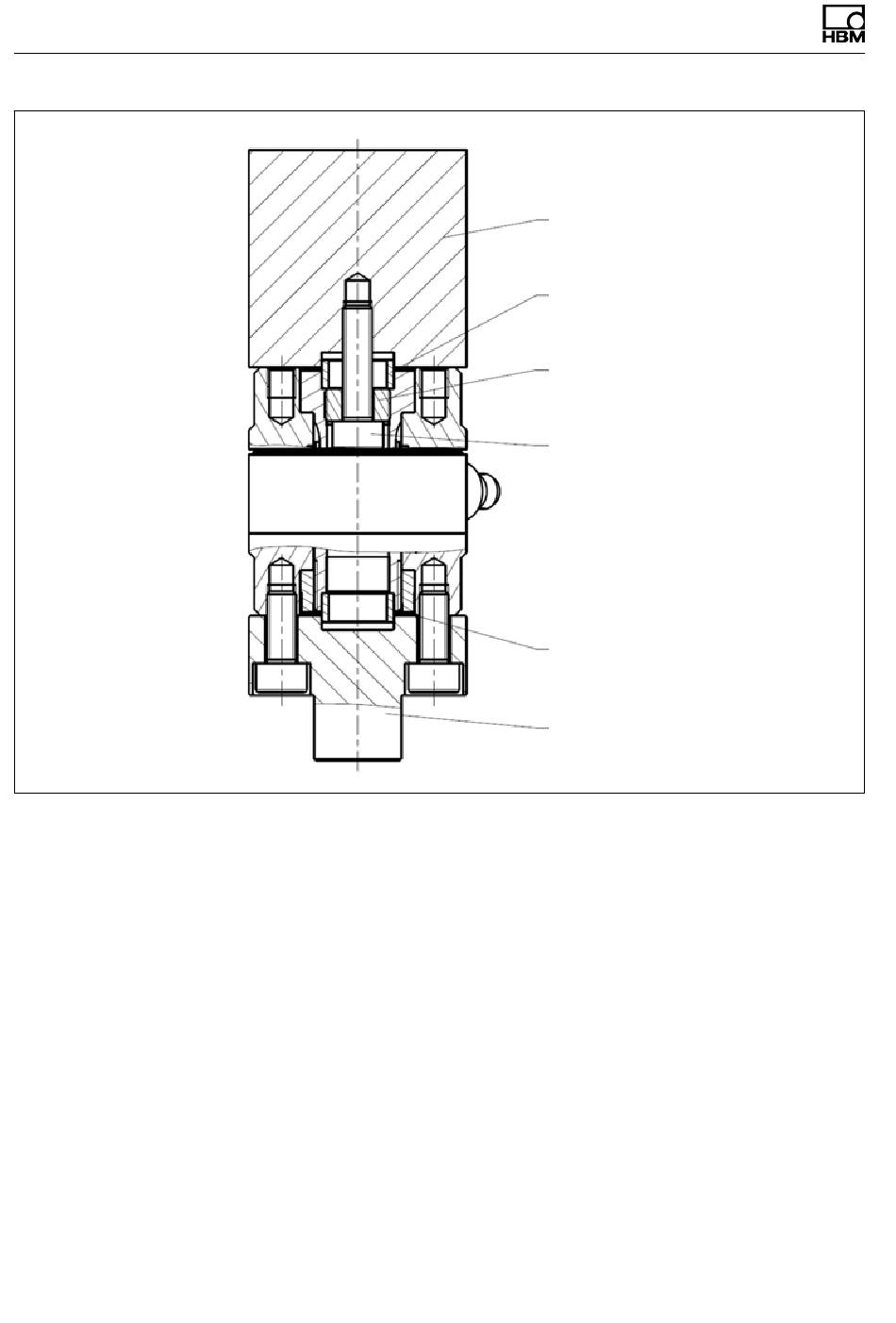

Fig. 7.3
Mounting the sensor on the structural element
20
A05101_01_YCI_02 HBM: public
Flange adapter (customer
side)
Centering ring
(scope of supply)
Threaded bushing
(scope of supply)
DIN 912 bolt
Centering ring (scope
of supply)
Flange adapter (customer side)
CFT+
