Scope Of Supply And Equipment Variants; Accessories - Hbm Cft+ Bedienungsanleitung

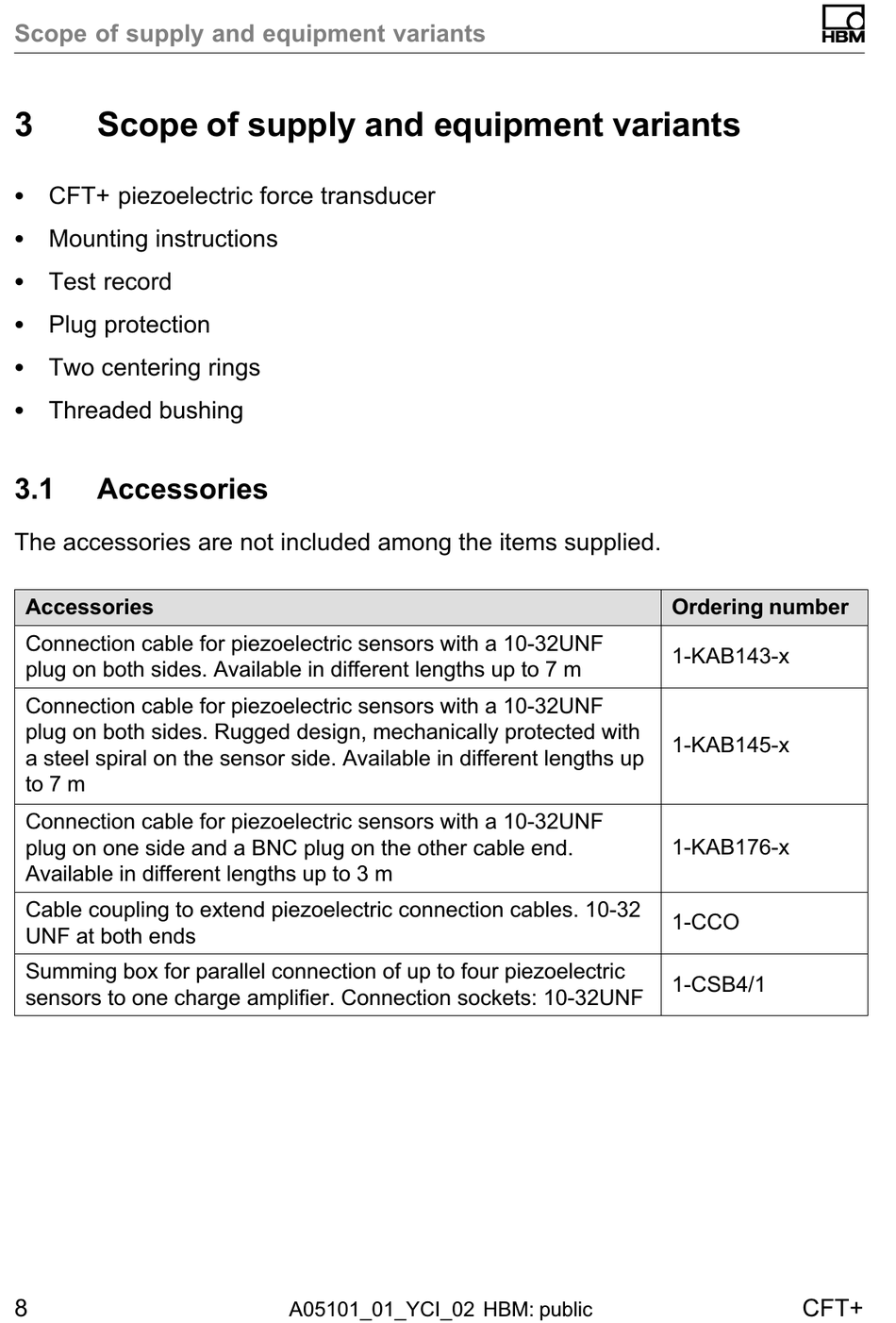

Scope of supply and equipment variants

3 Scope of supply and equipment variants
S CFT+ piezoelectric force transducer
S Mounting instructions
S Test record
S Plug protection
S Two centering rings
S Threaded bushing
3.1

Accessories

The accessories are not included among the items supplied.
Accessories
Connection cable for piezoelectric sensors with a 10-32UNF
plug on both sides. Available in different lengths up to 7 m
Connection cable for piezoelectric sensors with a 10-32UNF
plug on both sides. Rugged design, mechanically protected with
a steel spiral on the sensor side. Available in different lengths up
to 7 m
Connection cable for piezoelectric sensors with a 10-32UNF
plug on one side and a BNC plug on the other cable end.
Available in different lengths up to 3 m
Cable coupling to extend piezoelectric connection cables. 10-32
UNF at both ends
Summing box for parallel connection of up to four piezoelectric
sensors to one charge amplifier. Connection sockets: 10-32UNF
8
A05101_01_YCI_02 HBM: public
Ordering number
1-KAB143-x
1-KAB145-x
1-KAB176-x
1-CCO
1-CSB4/1
CFT+
