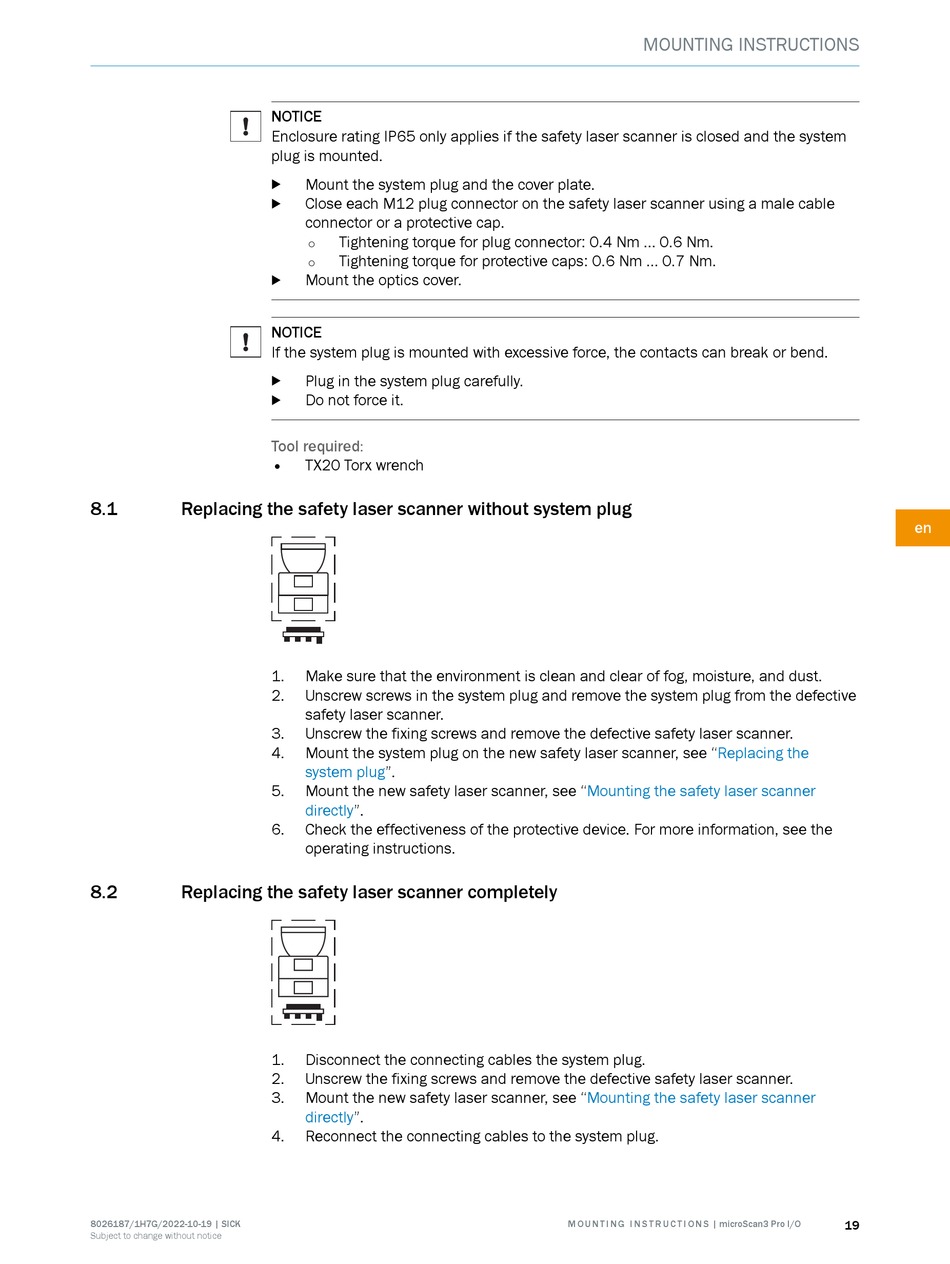

SICK microScan3 Pro I/O Montageanleitung Seite 19

8.1 Replacing the safety laser scanner without system plug
8.2 Replacing the safety laser scanner completely
8026187/1H7G/2022-10-19 | SICK
Subject to change without notice
NOTICE
Enclosure rating IP65 only applies if the safety laser scanner is closed and the system
plug is mounted.
Mount the system plug and the cover plate.
b
Close each M12 plug connector on the safety laser scanner using a male cable
b
connector or a protective cap.
Tightening torque for plug connector: 0.4 Nm ... 0.6 Nm.
°
Tightening torque for protective caps: 0.6 Nm ... 0.7 Nm.
°
Mount the optics cover.
b
NOTICE
If the system plug is mounted with excessive force, the contacts can break or bend.
Plug in the system plug carefully.
b
Do not force it.
b
Tool required:
• TX20 Torx wrench
1. Make sure that the environment is clean and clear of fog, moisture, and dust.
2. Unscrew screws in the system plug and remove the system plug from the defective
safety laser scanner.
3. Unscrew the fixing screws and remove the defective safety laser scanner.
4. Mount the system plug on the new safety laser scanner, see
system plug".
5. Mount the new safety laser scanner, see
directly".
6. Check the effectiveness of the protective device. For more information, see the
operating instructions.
1. Disconnect the connecting cables the system plug.
2. Unscrew the fixing screws and remove the defective safety laser scanner.
3. Mount the new safety laser scanner, see
directly".
4. Reconnect the connecting cables to the system plug.
MOUNTING INSTRUCTIONS
"Replacing the
"Mounting the safety laser scanner
"Mounting the safety laser scanner
M O U N T I N G I N S T R U C T I O N S | microScan3 Pro I/O
en
19
