MOUNTING INSTRUCTIONS
en
8
Replacing the safety laser scanner
18

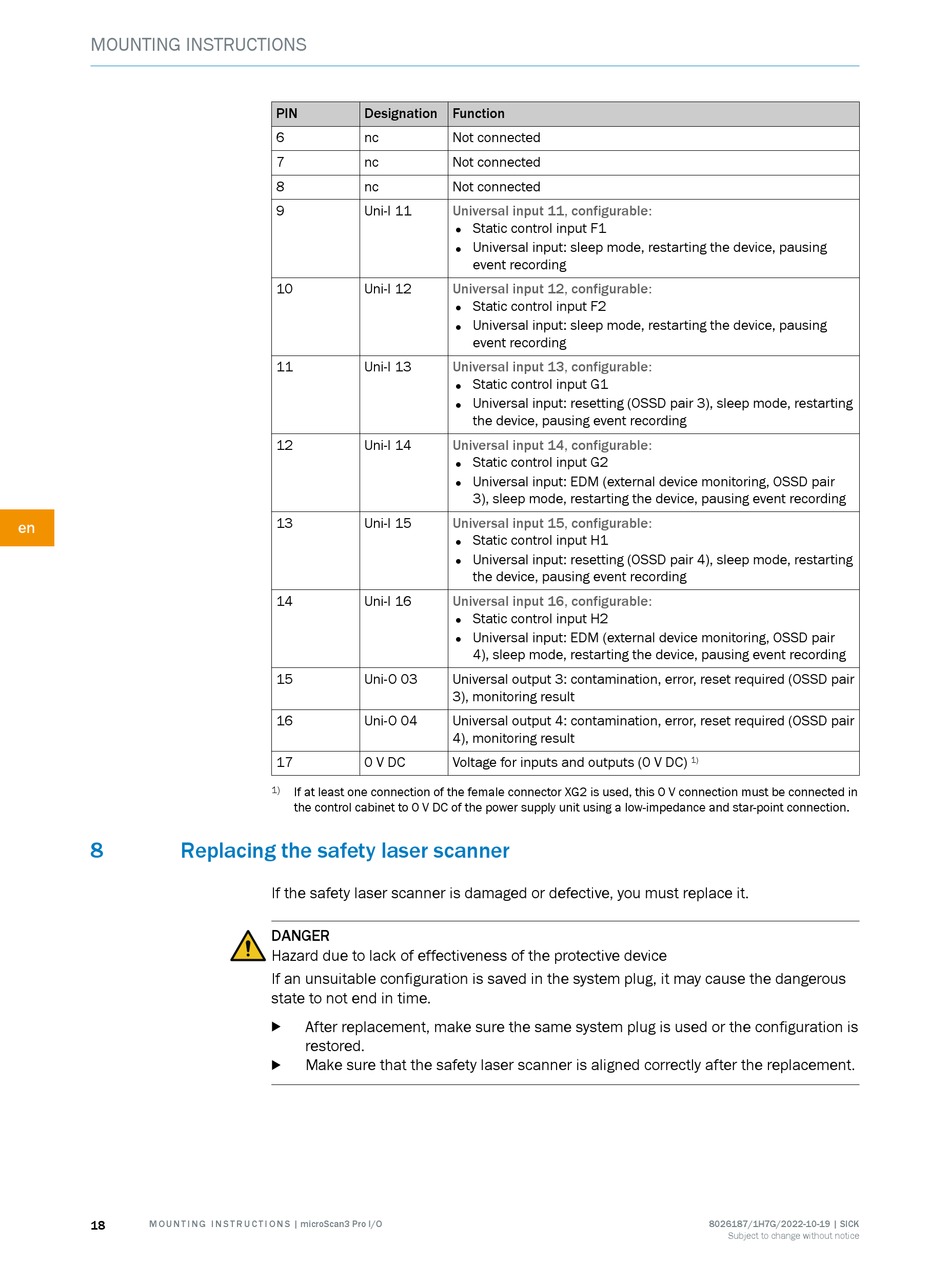

M O U N T I N G I N S T R U C T I O N S | microScan3 Pro I/O
PIN
Designation Function
6
nc
7
nc
8
nc
9
Uni-I 11
10
Uni-I 12
11
Uni-I 13
12
Uni-I 14
13
Uni-I 15
14
Uni-I 16
15
Uni-O 03
16
Uni-O 04
17
0 V DC
1)
If at least one connection of the female connector XG2 is used, this 0 V connection must be connected in
the control cabinet to 0 V DC of the power supply unit using a low-impedance and star-point connection.
If the safety laser scanner is damaged or defective, you must replace it.
DANGER
Hazard due to lack of effectiveness of the protective device
If an unsuitable configuration is saved in the system plug, it may cause the dangerous
state to not end in time.
After replacement, make sure the same system plug is used or the configuration is
b
restored.
Make sure that the safety laser scanner is aligned correctly after the replacement.
b
Not connected
Not connected
Not connected
Universal input 11, configurable:
•
Static control input F1
•
Universal input: sleep mode, restarting the device, pausing
event recording
Universal input 12, configurable:
•
Static control input F2
•
Universal input: sleep mode, restarting the device, pausing
event recording
Universal input 13, configurable:
•
Static control input G1
•
Universal input: resetting (OSSD pair 3), sleep mode, restarting
the device, pausing event recording
Universal input 14, configurable:
•
Static control input G2
•
Universal input: EDM (external device monitoring, OSSD pair
3), sleep mode, restarting the device, pausing event recording
Universal input 15, configurable:
•
Static control input H1
•
Universal input: resetting (OSSD pair 4), sleep mode, restarting
the device, pausing event recording
Universal input 16, configurable:
•
Static control input H2
•
Universal input: EDM (external device monitoring, OSSD pair
4), sleep mode, restarting the device, pausing event recording
Universal output 3: contamination, error, reset required (OSSD pair
3), monitoring result
Universal output 4: contamination, error, reset required (OSSD pair
4), monitoring result
Voltage for inputs and outputs (0 V DC)
1)
8026187/1H7G/2022-10-19 | SICK
Subject to change without notice
