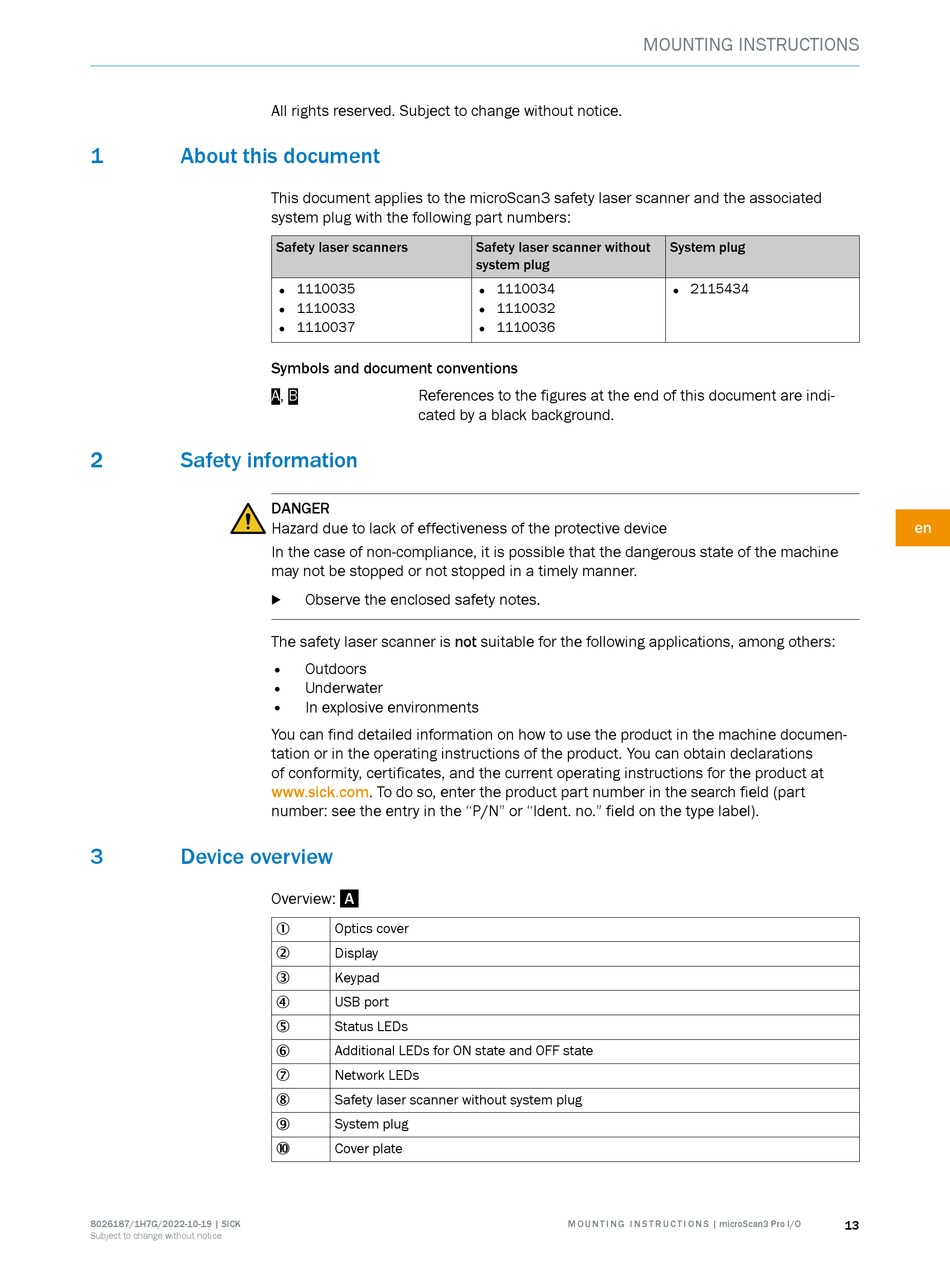

About This Document; Safety Information; Device Overview - SICK microScan3 Pro I/O Montageanleitung

1

About this document

2

Safety information

3

Device overview

8026187/1H7G/2022-10-19 | SICK
Subject to change without notice
All rights reserved. Subject to change without notice.
This document applies to the microScan3 safety laser scanner and the associated
system plug with the following part numbers:
Safety laser scanners
• 1110035
• 1110033
•
1110037
Symbols and document conventions
A, B References to the figures at the end of this document are indi‐
cated by a black background.
DANGER
Hazard due to lack of effectiveness of the protective device
In the case of non-compliance, it is possible that the dangerous state of the machine
may not be stopped or not stopped in a timely manner.
Observe the enclosed safety notes.
b
The safety laser scanner is not suitable for the following applications, among others:
• Outdoors
•
Underwater
•
In explosive environments
You can find detailed information on how to use the product in the machine documen‐
tation or in the operating instructions of the product. You can obtain declarations
of conformity, certificates, and the current operating instructions for the product at
www.sick.com. To do so, enter the product part number in the search field (part
number: see the entry in the "P/N" or "Ident. no." field on the type label).
Overview: A
Optics cover
1
Display
2
Keypad
3
USB port
4
Status LEDs
5
Additional LEDs for ON state and OFF state
6
Network LEDs
7
Safety laser scanner without system plug
8
System plug
9
Cover plate
ß
MOUNTING INSTRUCTIONS
Safety laser scanner without
system plug
• 1110034
• 1110032
•
1110036
M O U N T I N G I N S T R U C T I O N S | microScan3 Pro I/O
System plug
• 2115434
