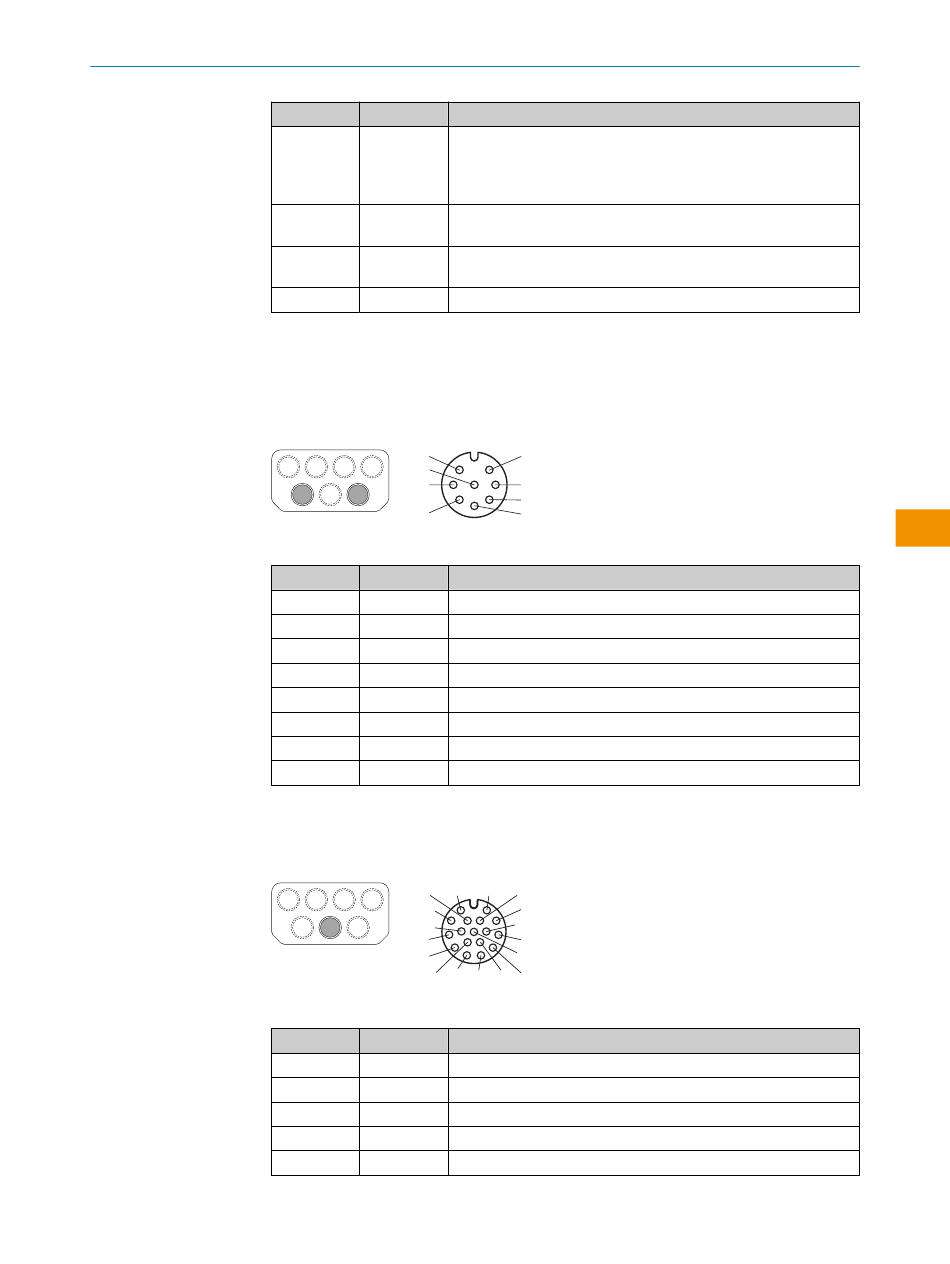

7.5 Dynamic control input (XG2, XG3)
7.6 Local inputs and outputs 2 (XG4)
8026187/1H7G/2022-10-19 | SICK
Subject to change without notice
PIN Designation Function
14 Uni-I 10
15 Uni-O 01
16 Uni-O 02
17 0 V DC
1) If at least one connection of the female connector XG1 is used, this 0 V connection must be connected in
the control cabinet to 0 V DC of the power supply unit using a low-impedance and star-point connection.
Female connector, M12, 8-pin, A-coded.
1
8
7
6
Pin assignment for dynamic control input
PIN Designation Function
1 nc
2 Inc 0°
3 nc
4 Inc 90°
5 nc
6 nc
7 0 V Inc
8 24 V DC Inc
Female connector, M12, 17-pin, A-coded.
11
10
16
9
8
15
Pin assignment for local inputs and outputs 2
PIN Designation Function
1 OSSD 3.A
2 OSSD 3.B
3 OSSD 4.A
4 OSSD 4.B
5 nc
Universal input 10, configurable:
• Static control input E2
• Universal input: EDM (external device monitoring, OSSD pair
2), sleep mode, restarting the device, pausing event recording
Universal output 1: contamination, error, reset required (OSSD pair
1), monitoring result
Universal output 2: contamination, error, reset required (OSSD pair
2), monitoring result
Voltage for inputs and outputs (0 V DC)
2
3
4
5
Not connected
Incremental encoder signal (0°)
Not connected
Incremental encoder signal (90°)
Not connected
Not connected
Supply voltage for incremental encoder (0 V DC)
Supply voltage for incremental encoder (+24 V DC)
1 2 12
3
13
4
17
7 6 14 5
OSSD pair 3, OSSD A
OSSD pair 3, OSSD B
OSSD pair 4, OSSD A
OSSD pair 4, OSSD B
Not connected
