7.4 Local inputs and outputs 1 (XG1)
en
16 M O U N T I N G I N S T R U C T I O N S | microScan3 Pro I/O

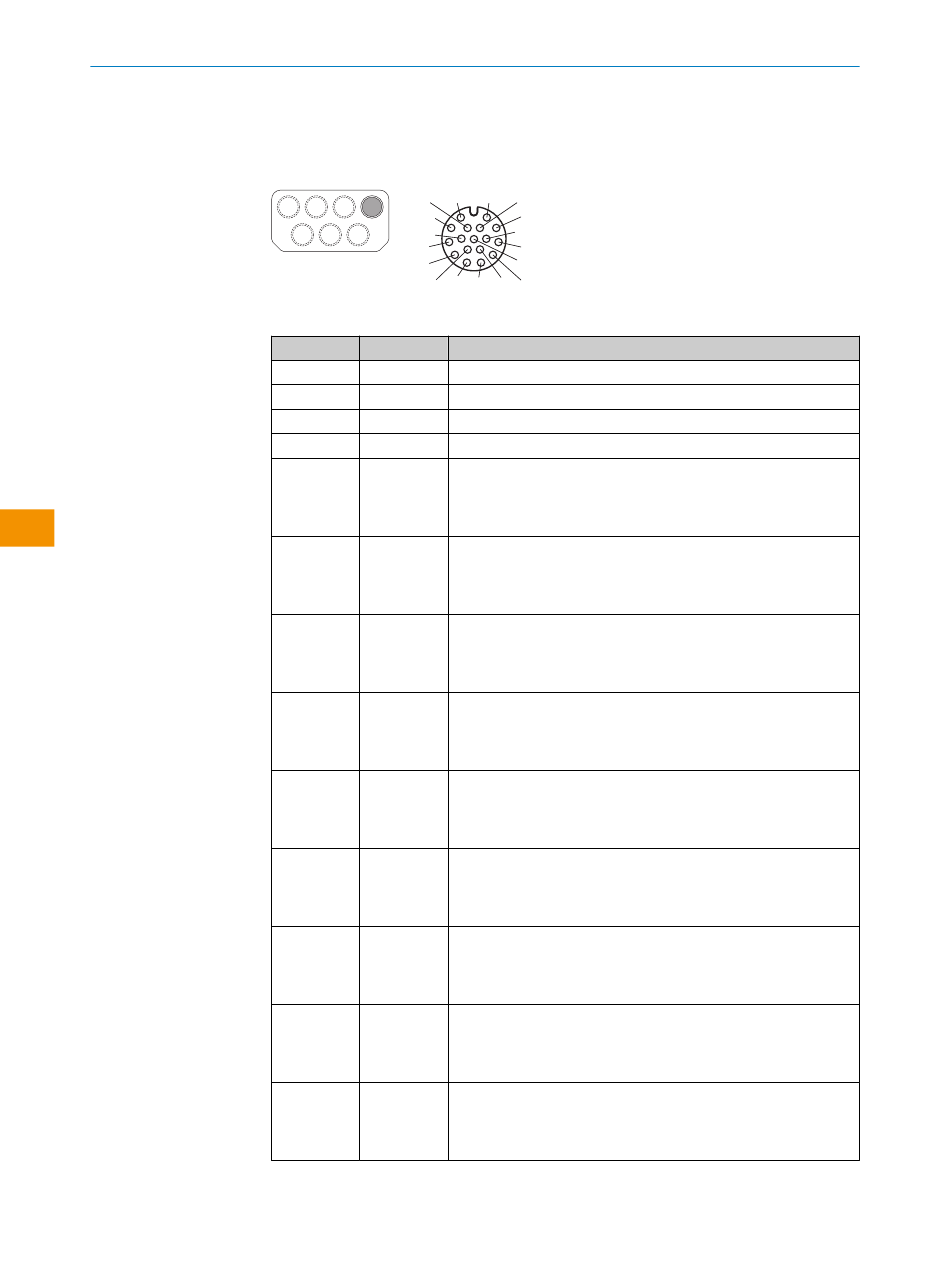

Female connector, M12, 17-pin, A-coded.
11
10
16
9
8
15
Pin assignment for local inputs and outputs 1
PIN Designation Function
1 OSSD 1.A
2 OSSD 1.B
3 OSSD 2.A
4 OSSD 2.B
5 Uni-I 01
6 Uni-I 02
7 Uni-I 03
8 Uni-I 04
9 Uni-I 05
10 Uni-I 06
11 Uni-I 07
12 Uni-I 08
13 Uni-I 09
1 2 12
3
13
4
17
7 6 14 5
OSSD pair 1, OSSD A
OSSD pair 1, OSSD B
OSSD pair 2, OSSD A
OSSD pair 2, OSSD B
Universal input 1, configurable:
• Static control input A1
• Universal input: sleep mode, restarting the device, pausing
event recording
Universal input 2, configurable:
• Static control input A2
• Universal input: sleep mode, restarting the device, pausing
event recording
Universal input 3, configurable:
• Static control input B1
• Universal input: sleep mode, restarting the device, pausing
event recording
Universal input 4, configurable:
• Static control input B2
• Universal input: sleep mode, restarting the device, pausing
event recording
Universal input 5, configurable:
• Static control input C1
• Universal input: sleep mode, restarting the device, pausing
event recording
Universal input 6, configurable:
• Static control input C2
• Universal input: sleep mode, restarting the device, pausing
event recording
Universal input 7, configurable:
• Static control input D1
• Universal input: resetting (OSSD pair 1), sleep mode, restarting
the device, pausing event recording
Universal input 8, configurable:
• Static control input D2
• Universal input: EDM (external device monitoring, OSSD pair
1), sleep mode, restarting the device, pausing event recording
Universal input 9, configurable:
• Static control input E1
•
Universal input: resetting (OSSD pair 2), sleep mode, restarting
the device, pausing event recording
