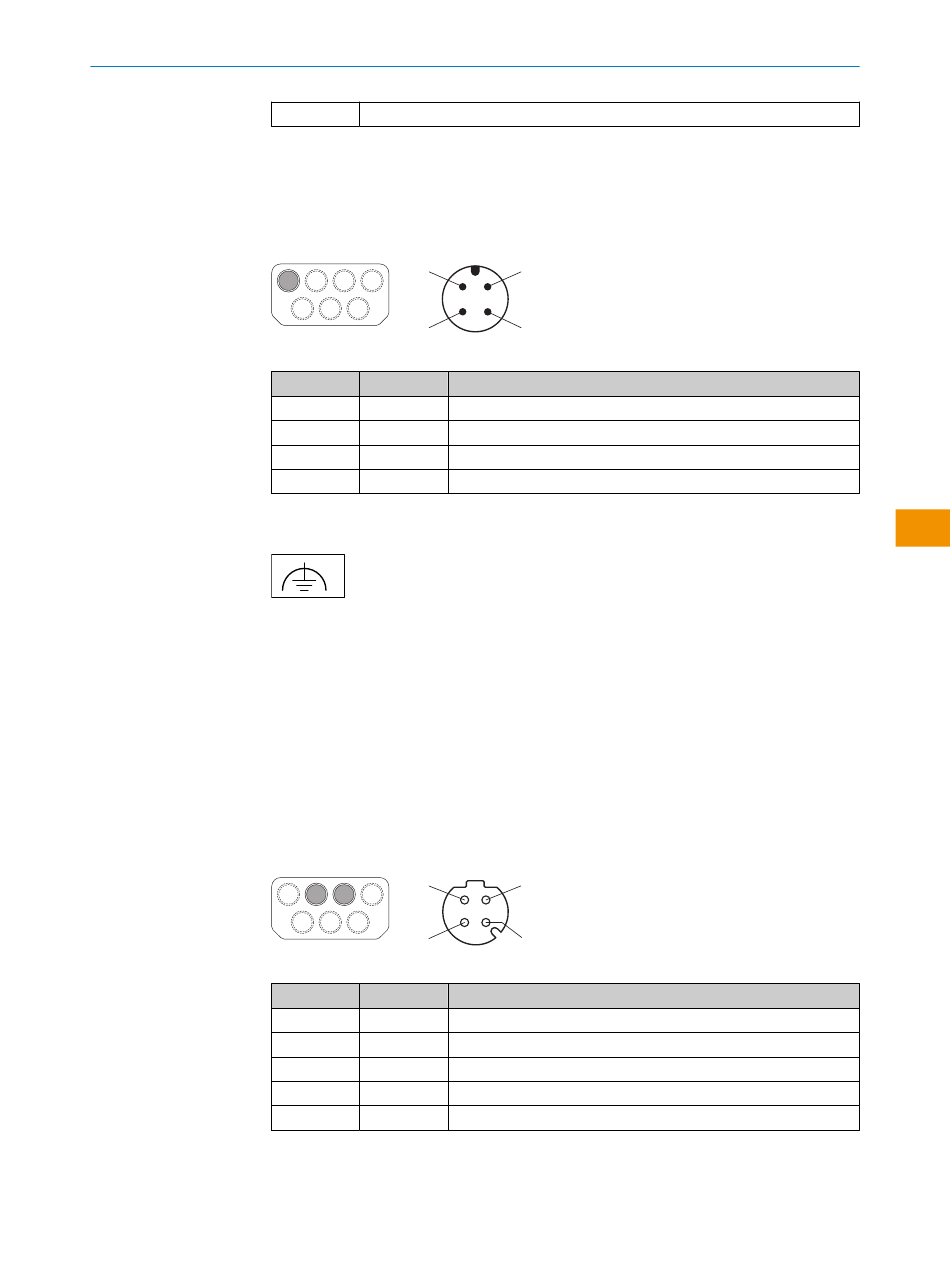

Pin assignment

7.1 Voltage supply (XD1)
7.2 Alternative FE connection
7.3 Ethernet (XF1, XF2)
8026187/1H7G/2022-10-19 | SICK
Subject to change without notice
XG4 Local inputs and outputs 2
Male connector, M12, 4-pin, A-coded.
2
3
Pin assignment of the voltage supply
Pin Designation Function
1 24 V DC
2 nc
3 0 V DC
4 FE
Figure 1: Alternative FE connection
Screw connection of the alternative FE connection
• Screw: M5 × 12
•
Tightening torque: 3.5 Nm to 5.0 Nm
Suitable cable lugs
• Forked cable lug or ring cable lug
• Width ≤ 10 mm
• Hole diameter for screw: typically 5.2 mm
Female connector, M12, 4-pin, D-coded.
1
4
Network pin assignment
Pin Designation Function
1 TX+
2 RX+
3 TX–
4 RX–
Thread SH
For the function of the connections, see
1
4
24 V DC supply voltage
Not connected
Supply voltage 0 V DC
Functional earth/shield
2
3
Send data +
Receive data +
Send data -
Receive data -
Shielding
"Connection overview".
