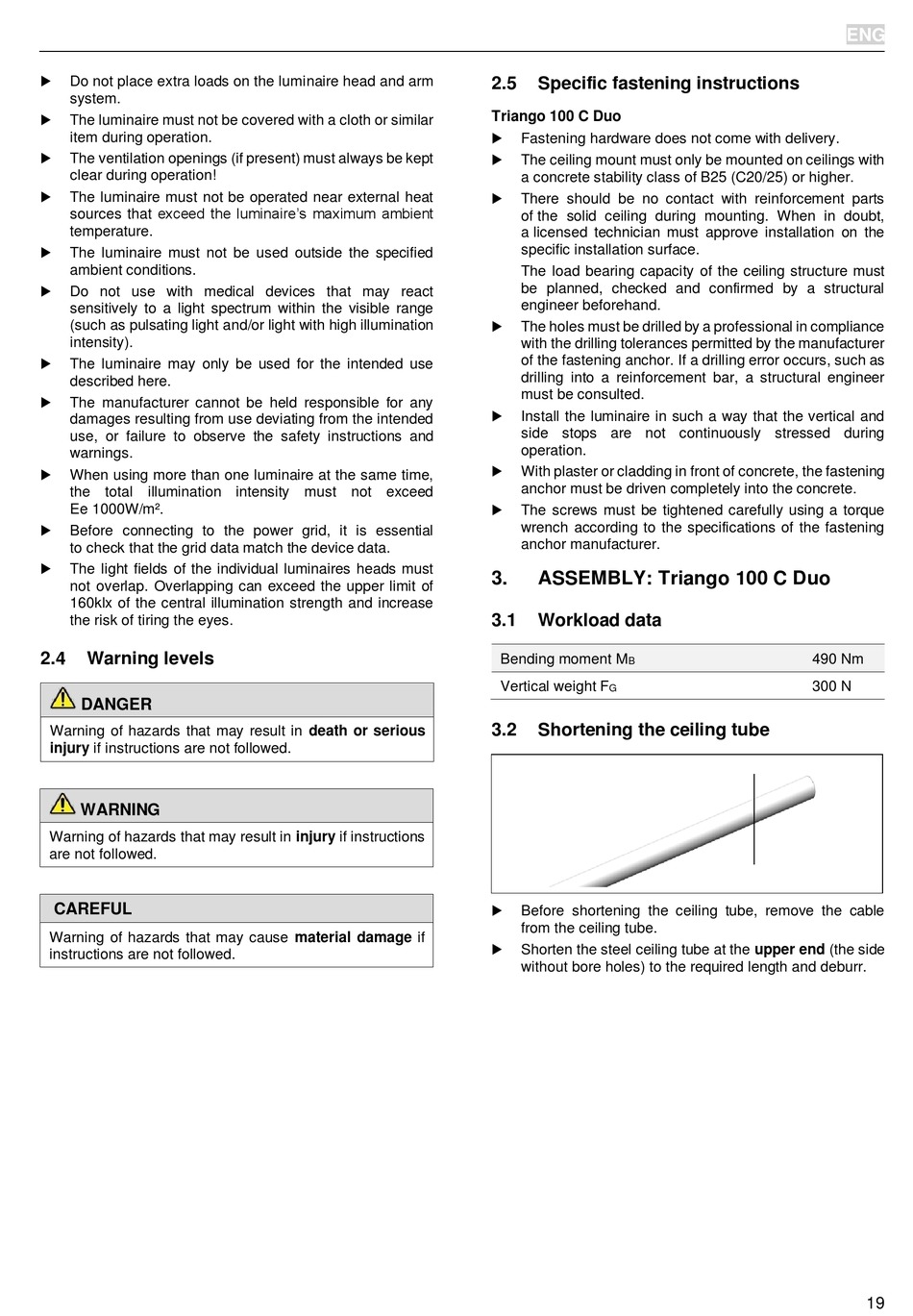

Do not place extra loads on the luminaire head and arm
system.

The luminaire must not be covered with a cloth or similar
item during operation.

The ventilation openings (if present) must always be kept
clear during operation!

The luminaire must not be operated near external heat
sources that exceed the luminaire's maximum ambient
temperature.

The luminaire must not be used outside the specified
ambient conditions.

Do not use with medical devices that may react
sensitively to a light spectrum within the visible range
(such as pulsating light and/or light with high illumination
intensity).

The luminaire may only be used for the intended use
described here.

The manufacturer cannot be held responsible for any
damages resulting from use deviating from the intended
use, or failure to observe the safety instructions and
warnings.

When using more than one luminaire at the same time,
the total illumination intensity must not exceed
Ee 1000W/m².

Before connecting to the power grid, it is essential
to check that the grid data match the device data.

The light fields of the individual luminaires heads must
not overlap. Overlapping can exceed the upper limit of
160klx of the central illumination strength and increase
the risk of tiring the eyes.
2.4

Warning levels

DANGER
Warning of hazards that may result in death or serious
injury if instructions are not followed.
WARNING
Warning of hazards that may result in injury if instructions
are not followed.
CAREFUL
Warning of hazards that may cause material damage if
instructions are not followed.
2.5

Specific fastening instructions

Triango 100 C Duo

Fastening hardware does not come with delivery.

The ceiling mount must only be mounted on ceilings with
a concrete stability class of B25 (C20/25) or higher.

There should be no contact with reinforcement parts
of the solid ceiling during mounting. When in doubt,
a licensed technician must approve installation on the
specific installation surface.
The load bearing capacity of the ceiling structure must
be planned, checked and confirmed by a structural
engineer beforehand.

The holes must be drilled by a professional in compliance
with the drilling tolerances permitted by the manufacturer
of the fastening anchor. If a drilling error occurs, such as
drilling into a reinforcement bar, a structural engineer
must be consulted.

Install the luminaire in such a way that the vertical and
side stops are not continuously stressed during
operation.

With plaster or cladding in front of concrete, the fastening
anchor must be driven completely into the concrete.

The screws must be tightened carefully using a torque
wrench according to the specifications of the fastening
anchor manufacturer.
3.

ASSEMBLY: Triango 100 C Duo

3.1

Workload data

Bending moment M
B
Vertical weight F
G
3.2

Shortening the ceiling tube


Before shortening the ceiling tube, remove the cable
from the ceiling tube.

Shorten the steel ceiling tube at the upper end (the side
without bore holes) to the required length and deburr.
ENG
490 Nm
300 N
