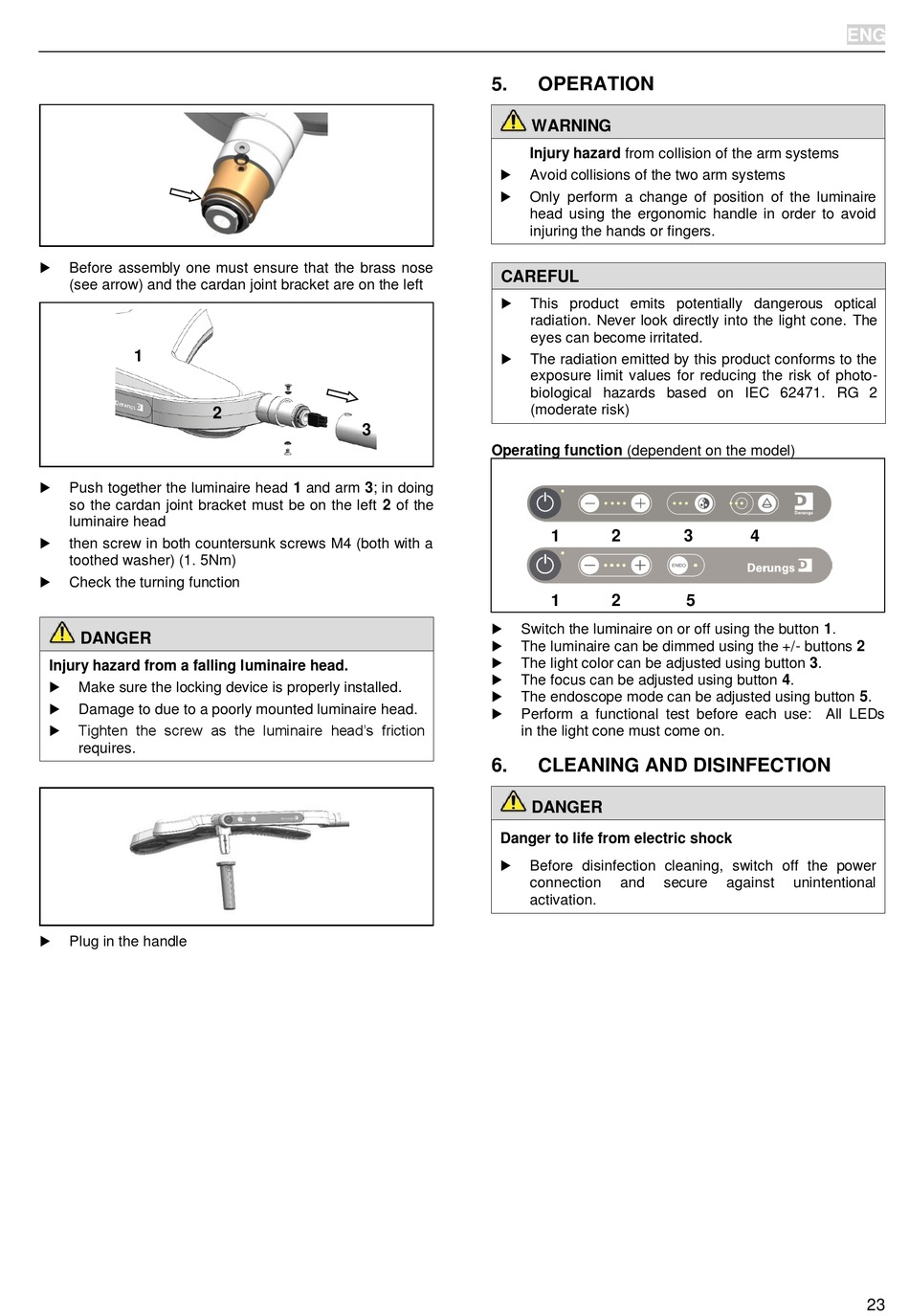

Before assembly one must ensure that the brass nose
(see arrow) and the cardan joint bracket are on the left
1
2

Push together the luminaire head 1 and arm 3; in doing
so the cardan joint bracket must be on the left 2 of the
luminaire head

then screw in both countersunk screws M4 (both with a
toothed washer) (1. 5Nm)

Check the turning function
DANGER
Injury hazard from a falling luminaire head.

Make sure the locking device is properly installed.

Damage to due to a poorly mounted luminaire head.
Tighten the screw as the luminaire head's friction

requires.

Plug in the handle
5.
WARNING
Injury hazard from collision of the arm systems

Avoid collisions of the two arm systems

Only perform a change of position of the luminaire
head using the ergonomic handle in order to avoid
injuring the hands or fingers.
CAREFUL

This product emits potentially dangerous optical
radiation. Never look directly into the light cone. The
eyes can become irritated.

The radiation emitted by this product conforms to the
exposure limit values for reducing the risk of photo-
biological hazards based on IEC 62471. RG 2
(moderate risk)
3
Operating function (dependent on the model)

Switch the luminaire on or off using the button 1.

The luminaire can be dimmed using the +/- buttons 2

The light color can be adjusted using button 3.

The focus can be adjusted using button 4.

The endoscope mode can be adjusted using button 5.

Perform a functional test before each use: All LEDs
in the light cone must come on.
6.
DANGER
Danger to life from electric shock

Before disinfection cleaning, switch off the power
connection
activation.

OPERATION

1 2 3
1 2 5

CLEANING AND DISINFECTION

and secure
ENG
4
against unintentional
23
