ENG

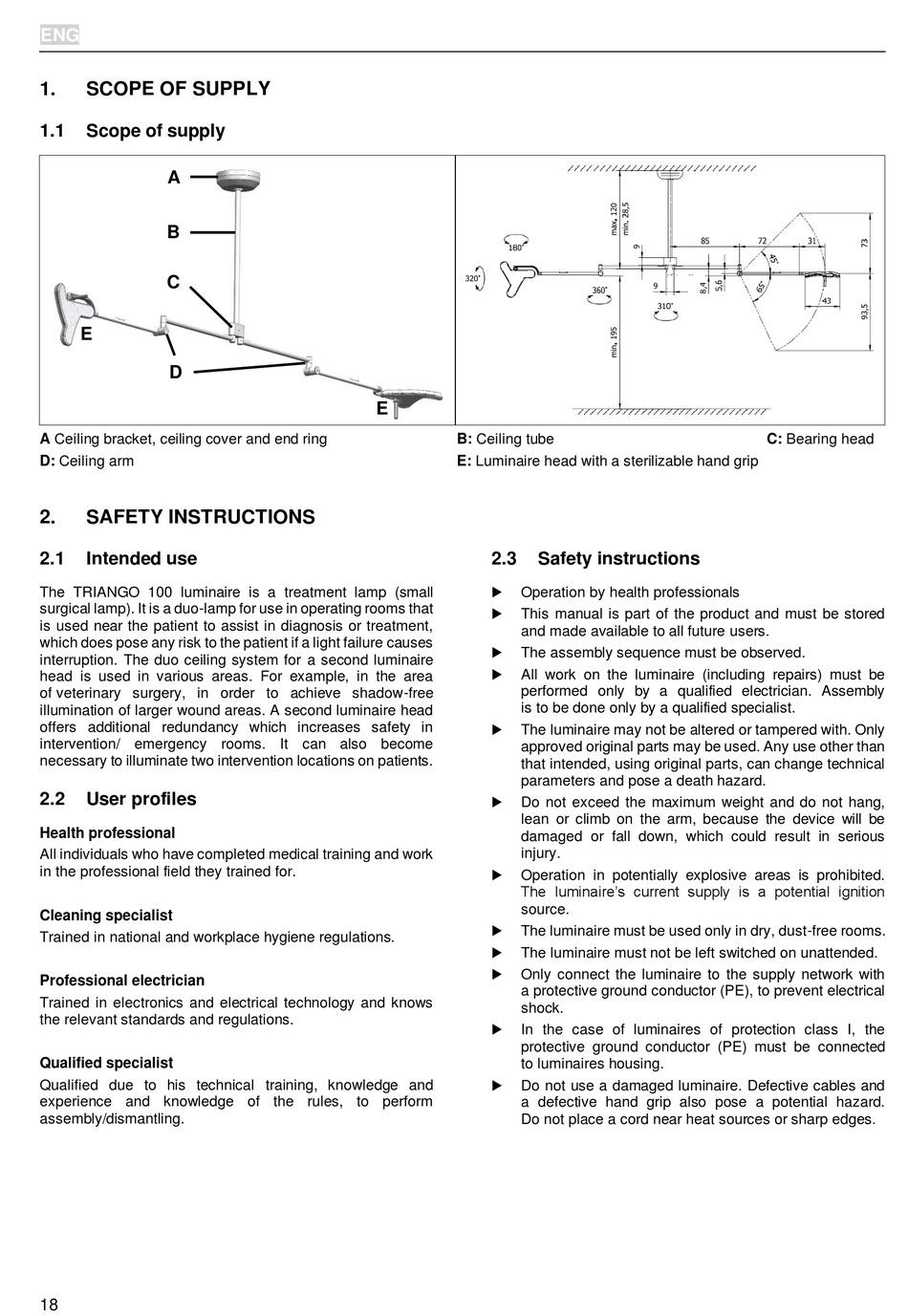

1.

SCOPE OF SUPPLY

1.1 Scope of supply
A
B
C
E
D
A Ceiling bracket, ceiling cover and end ring
D: Ceiling arm
2.

SAFETY INSTRUCTIONS

2.1

Intended use

The TRIANGO 100 luminaire is a treatment lamp (small
surgical lamp). It is a duo-lamp for use in operating rooms that
is used near the patient to assist in diagnosis or treatment,
which does pose any risk to the patient if a light failure causes
interruption. The duo ceiling system for a second luminaire
head is used in various areas. For example, in the area
of veterinary surgery, in order to achieve shadow-free
illumination of larger wound areas. A second luminaire head
offers additional redundancy which increases safety in
intervention/ emergency rooms. It can also become
necessary to illuminate two intervention locations on patients.
2.2

User profiles

Health professional
All individuals who have completed medical training and work
in the professional field they trained for.
Cleaning specialist
Trained in national and workplace hygiene regulations.
Professional electrician
Trained in electronics and electrical technology and knows
the relevant standards and regulations.
Qualified specialist
Qualified due to his technical training, knowledge and
experience and knowledge of the rules, to perform
assembly/dismantling.
18
E
B: Ceiling tube
E: Luminaire head with a sterilizable hand grip
2.3 Safety instructions

Operation by health professionals

This manual is part of the product and must be stored
and made available to all future users.

The assembly sequence must be observed.

All work on the luminaire (including repairs) must be
performed only by a qualified electrician. Assembly
is to be done only by a qualified specialist.

The luminaire may not be altered or tampered with. Only
approved original parts may be used. Any use other than
that intended, using original parts, can change technical
parameters and pose a death hazard.

Do not exceed the maximum weight and do not hang,
lean or climb on the arm, because the device will be
damaged or fall down, which could result in serious
injury.

Operation in potentially explosive areas is prohibited.
The luminaire's current supply is a potential ignition
source.

The luminaire must be used only in dry, dust-free rooms.

The luminaire must not be left switched on unattended.

Only connect the luminaire to the supply network with
a protective ground conductor (PE), to prevent electrical
shock.

In the case of luminaires of protection class I, the
protective ground conductor (PE) must be connected
to luminaires housing.

Do not use a damaged luminaire. Defective cables and
a defective hand grip also pose a potential hazard.
Do not place a cord near heat sources or sharp edges.
C: Bearing head
