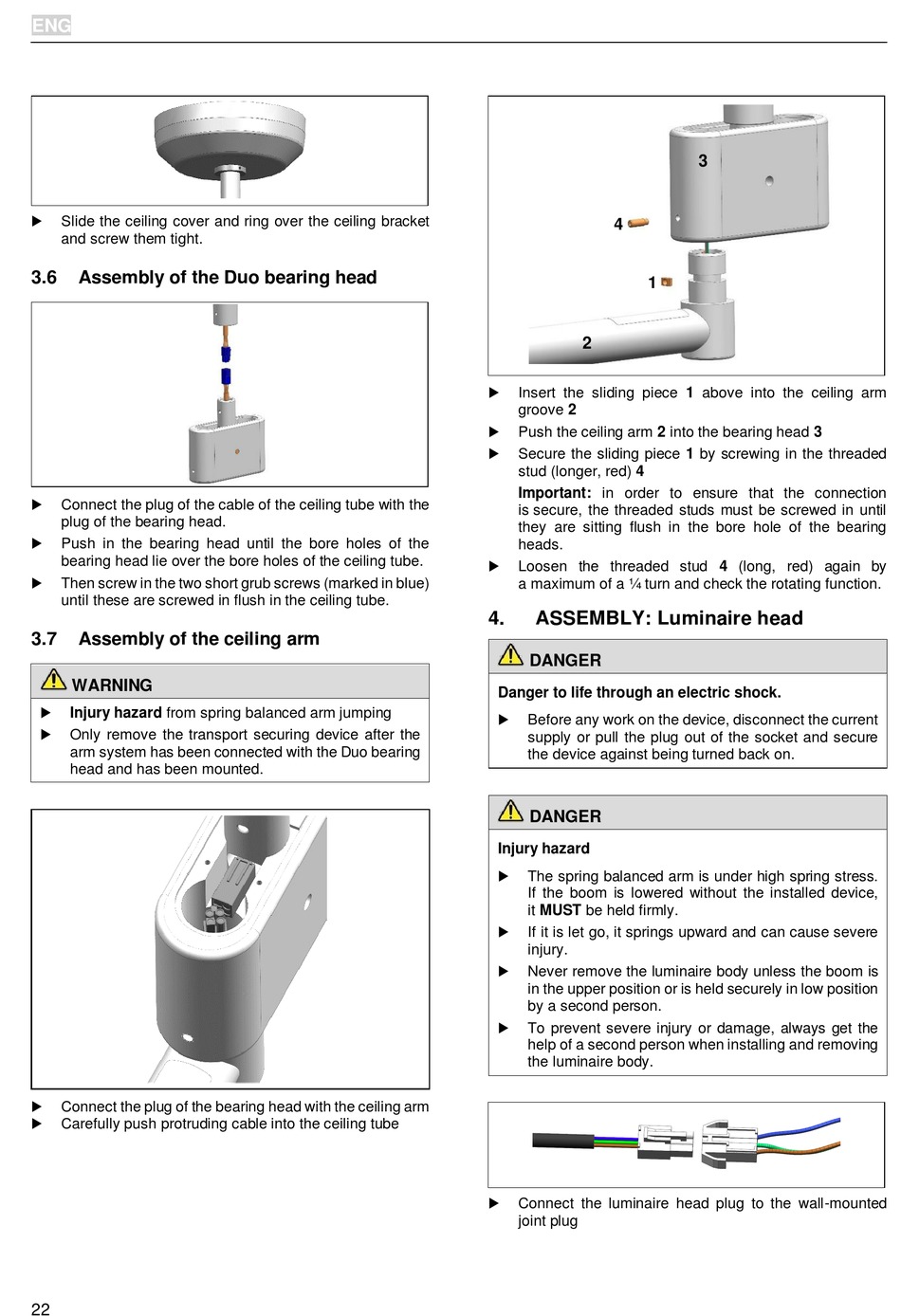

Slide the ceiling cover and ring over the ceiling bracket
and screw them tight.
3.6

Assembly of the Duo bearing head


Connect the plug of the cable of the ceiling tube with the
plug of the bearing head.

Push in the bearing head until the bore holes of the
bearing head lie over the bore holes of the ceiling tube.

Then screw in the two short grub screws (marked in blue)
until these are screwed in flush in the ceiling tube.
3.7

Assembly of the ceiling arm

WARNING

Injury hazard from spring balanced arm jumping

Only remove the transport securing device after the
arm system has been connected with the Duo bearing
head and has been mounted.

Connect the plug of the bearing head with the ceiling arm

Carefully push protruding cable into the ceiling tube
22
4
1
2

Insert the sliding piece 1 above into the ceiling arm
groove 2

Push the ceiling arm 2 into the bearing head 3

Secure the sliding piece 1 by screwing in the threaded
stud (longer, red) 4
Important: in order to ensure that the connection
is secure, the threaded studs must be screwed in until
they are sitting flush in the bore hole of the bearing
heads.

Loosen the threaded stud 4 (long, red) again by
a maximum of a ¼ turn and check the rotating function.
4.

ASSEMBLY: Luminaire head

DANGER
Danger to life through an electric shock.

Before any work on the device, disconnect the current
supply or pull the plug out of the socket and secure
the device against being turned back on.
DANGER
Injury hazard

The spring balanced arm is under high spring stress.
If the boom is lowered without the installed device,
it MUST be held firmly.

If it is let go, it springs upward and can cause severe
injury.

Never remove the luminaire body unless the boom is
in the upper position or is held securely in low position
by a second person.

To prevent severe injury or damage, always get the
help of a second person when installing and removing
the luminaire body.

Connect the luminaire head plug to the wall-mounted
joint plug
3
