Fixvent Mono AK/UT
®

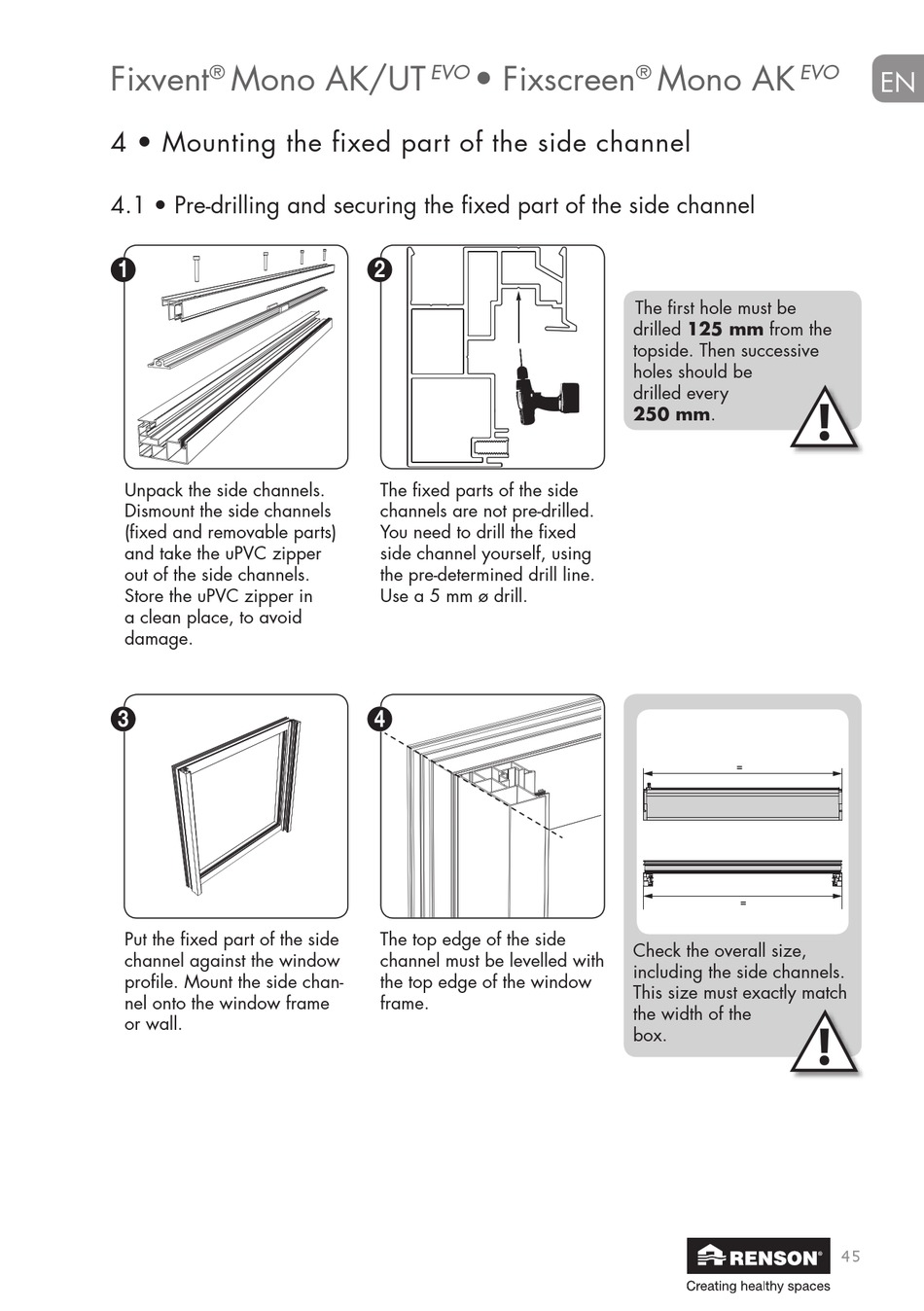

4 • Mounting the fixed part of the side channel
4.1 • Pre-drilling and securing the fixed part of the side channel
1
Unpack the side channels.
Dismount the side channels
(fixed and removable parts)
and take the uPVC zipper
out of the side channels.
Store the uPVC zipper in
a clean place, to avoid
damage.
3
Put the fixed part of the side
channel against the window
profile. Mount the side chan-
nel onto the window frame
or wall.
• Fixscreen
EVO
2
The fixed parts of the side
channels are not pre-drilled.
You need to drill the fixed
side channel yourself, using
the pre-determined drill line.
Use a 5 mm ø drill.
4
The top edge of the side
channel must be levelled with
the top edge of the window
frame.
Mono AK
®
EVO
The first hole must be
drilled 125 mm from the
topside. Then successive
holes should be
drilled every
250 mm.
=
=
Check the overall size,
including the side channels.
This size must exactly match
the width of the
box.
en
45
