Securing The Box Horizontally; Installing The Interior Profile - Renson Fixvent Mono AK/UT EVO Montageanleitung

Fixvent Mono AK/UT
®
en

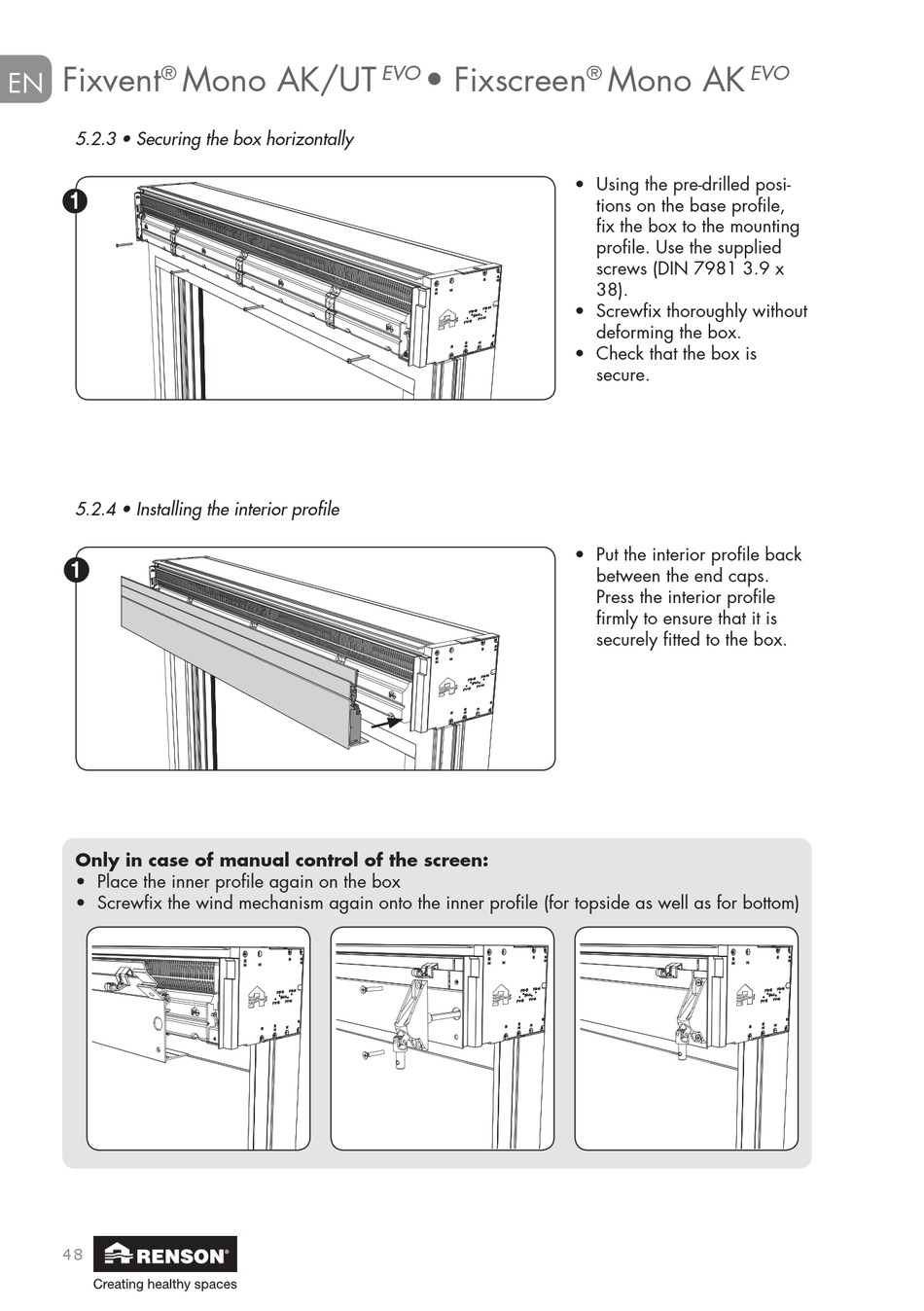

5.2.3 • Securing the box horizontally
1
5.2.4 • Installing the interior profile
➊
Only in case of manual control of the screen:
• Place the inner profile again on the box
• Screwfix the wind mechanism again onto the inner profile (for topside as well as for bottom)
48
• Fixscreen
EVO
Mono AK
®
• Using the pre-drilled posi-
tions on the base profile,
fix the box to the mounting
profile. Use the supplied
screws (DIN 7981 3.9 x
38).
• Screwfix thoroughly without
deforming the box.
• Check that the box is
secure.
• Put the interior profile back
between the end caps.
Press the interior profile
firmly to ensure that it is
securely fitted to the box.
EVO
