Fixvent Mono AK/UT
®
en

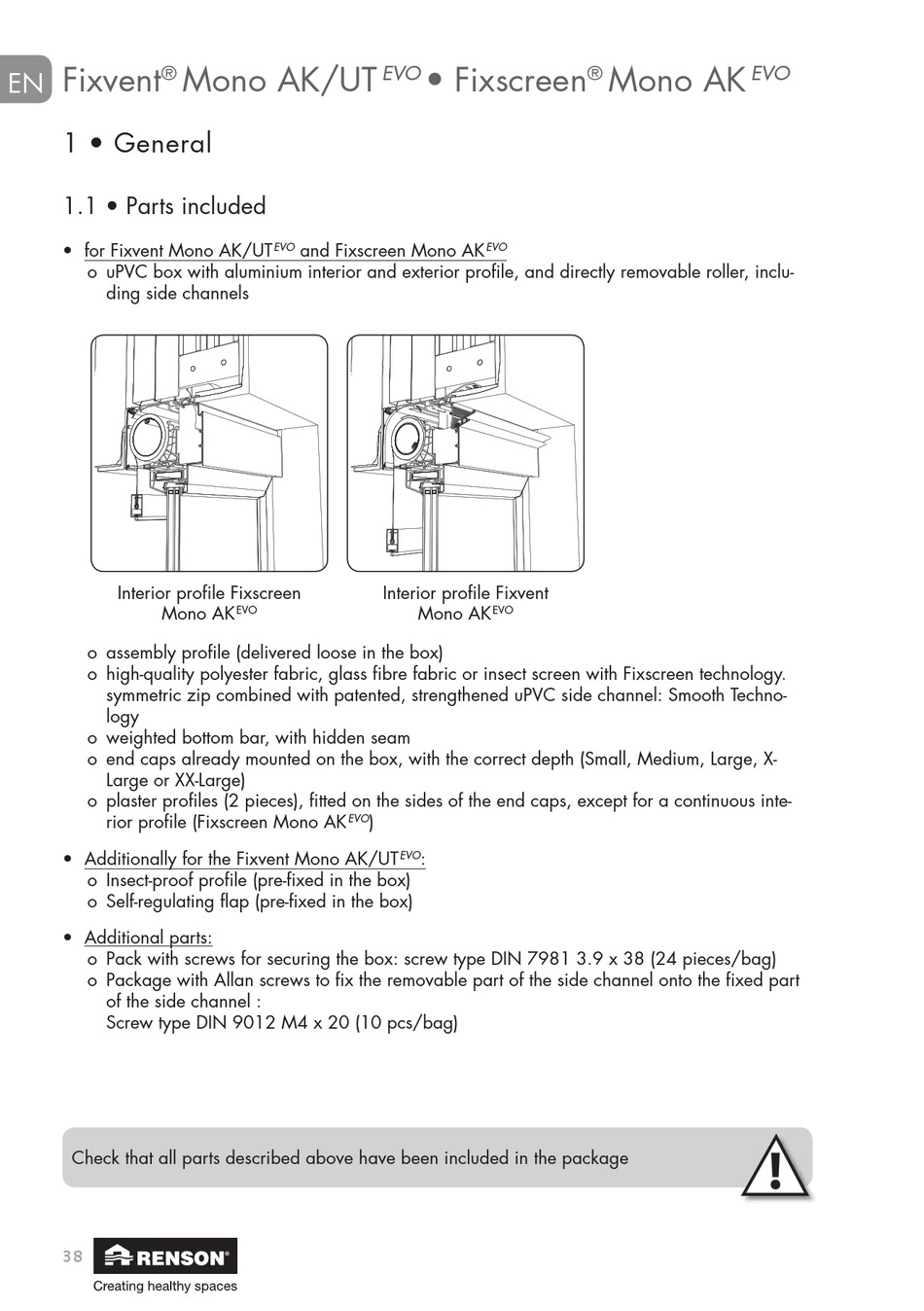

1 • General
1.1 • Parts included
• for Fixvent Mono AK/UT
o uPVC box with aluminium interior and exterior profile, and directly removable roller, inclu-
ding side channels
Interior profile Fixscreen
Mono AK
o assembly profile (delivered loose in the box)
o high-quality polyester fabric, glass fibre fabric or insect screen with Fixscreen technology.
symmetric zip combined with patented, strengthened uPVC side channel: Smooth Techno-
logy
o weighted bottom bar, with hidden seam
o end caps already mounted on the box, with the correct depth (Small, Medium, Large, X-
Large or XX-Large)
o plaster profiles (2 pieces), fitted on the sides of the end caps, except for a continuous inte-
rior profile (Fixscreen Mono AK
• Additionally for the Fixvent Mono AK/UT
o Insect-proof profile (pre-fixed in the box)
o Self-regulating flap (pre-fixed in the box)
• Additional parts:
o Pack with screws for securing the box: screw type DIN 7981 3.9 x 38 (24 pieces/bag)
o Package with Allan screws to fix the removable part of the side channel onto the fixed part
of the side channel :
Screw type DIN 9012 M4 x 20 (10 pcs/bag)
Check that all parts described above have been included in the package
38
EVO
and Fixscreen Mono AK
EVO
Interior profile Fixvent
EVO
)
EVO
EVO
• Fixscreen
®
EVO
Mono AK
EVO
:
Mono AK
EVO
