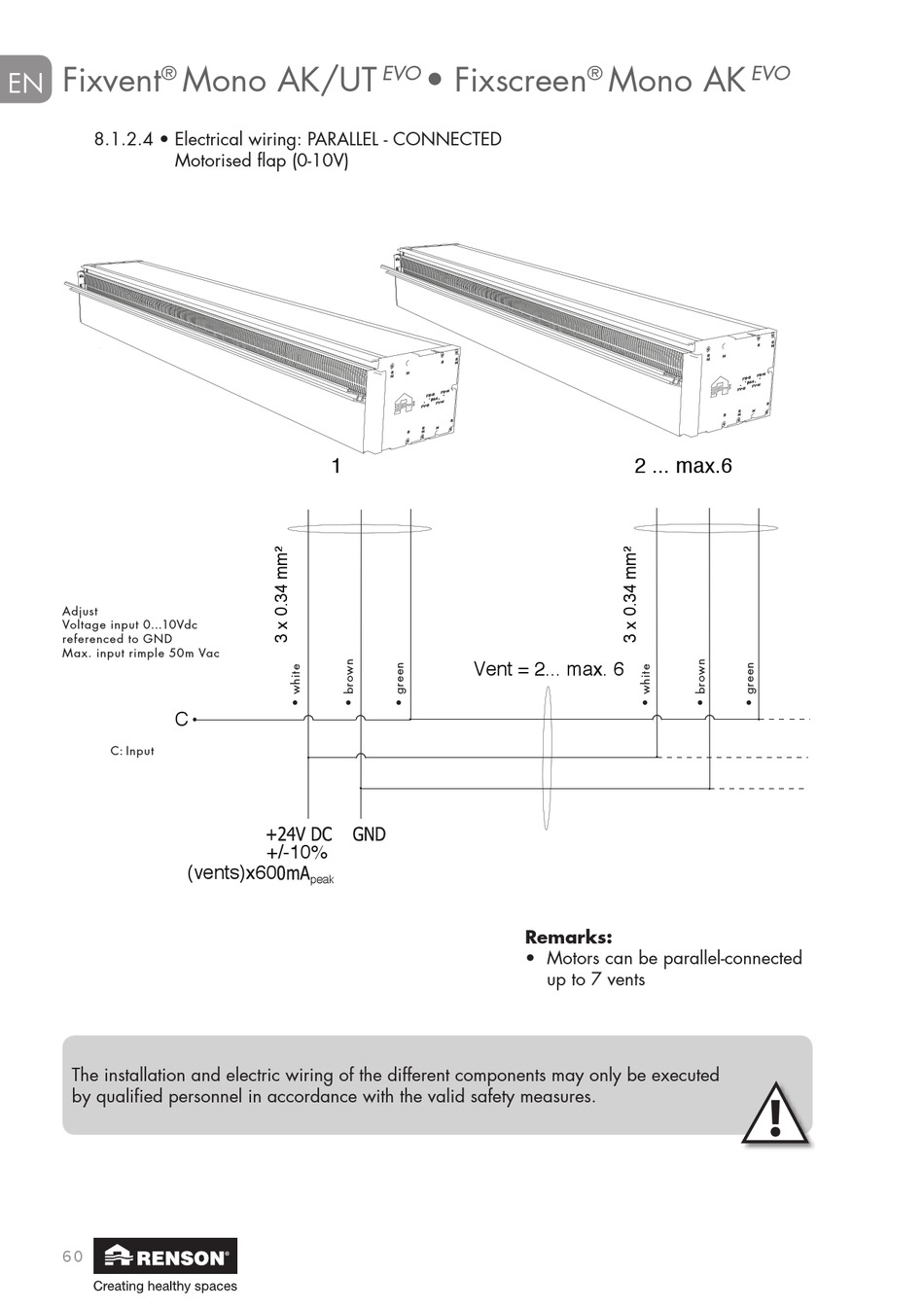

8.1.2.4 • Electrical wiring: PARALLEL - CONNECTED
Motorised flap (0-10V)
Adjust
Voltage input 0...10Vdc
referenced to GND
Max. input rimple 50m Vac
C
C: Input
The installation and electric wiring of the different components may only be executed
by qualified personnel in accordance with the valid safety measures.
6 0
1
+/-10%
(vents)x60
peak
• Fixscreen
EVO
Vent = 2... max. 6
Remarks:
• Motors can be parallel-connected
up to 7 vents
Mono AK
®
EVO
2 ... max.6
