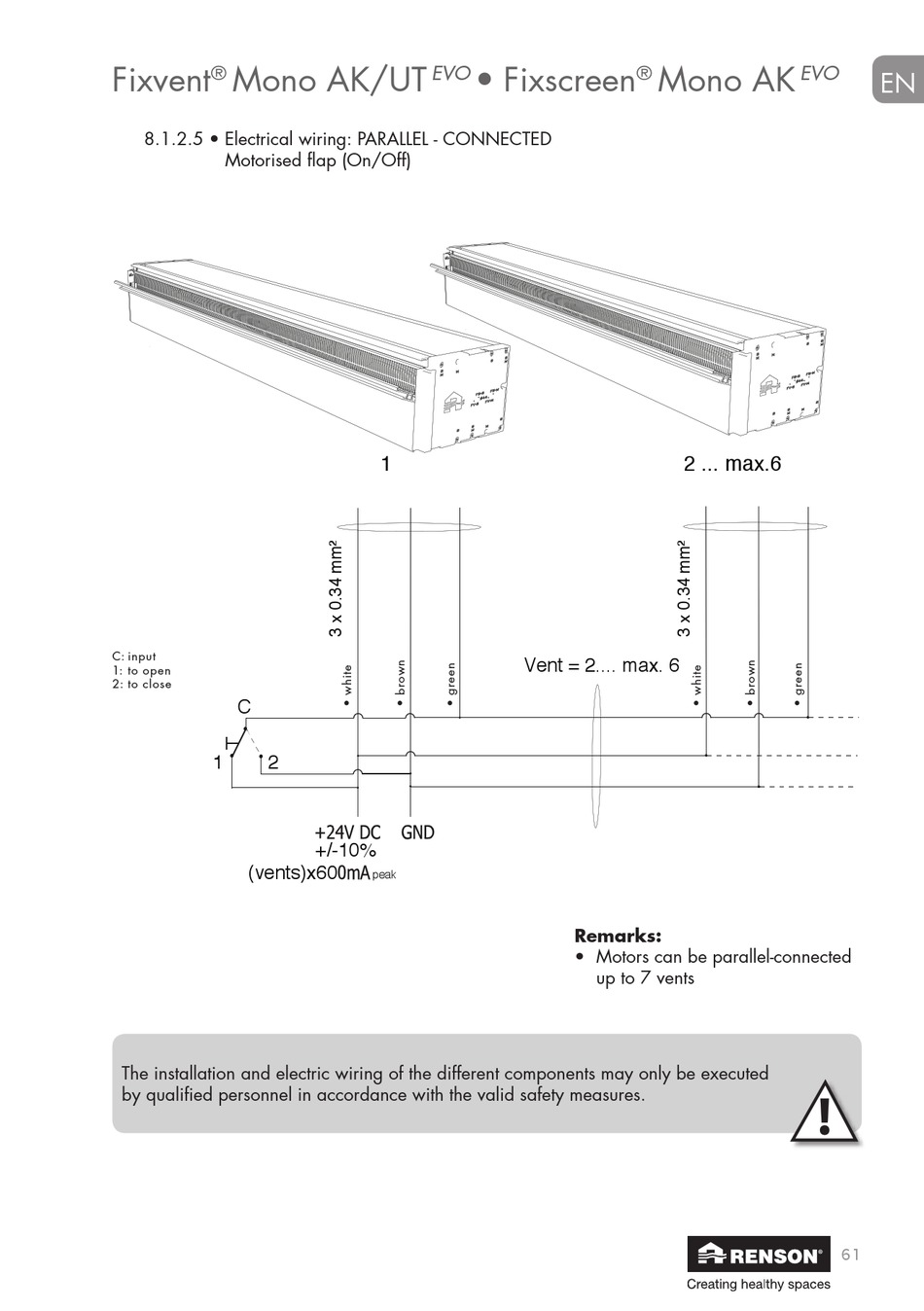

8.1.2.5 • Electrical wiring: PARALLEL - CONNECTED
Motorised flap (On/Off)
C: input
1: to open
2: to close
C
1 2
(vents)x60
The installation and electric wiring of the different components may only be executed
by qualified personnel in accordance with the valid safety measures.
• Fixscreen
EVO
1
+/-10%
peak
Mono AK
®
2 ... max.6
Vent = 2.... max. 6
Remarks:
• Motors can be parallel-connected
up to 7 vents
