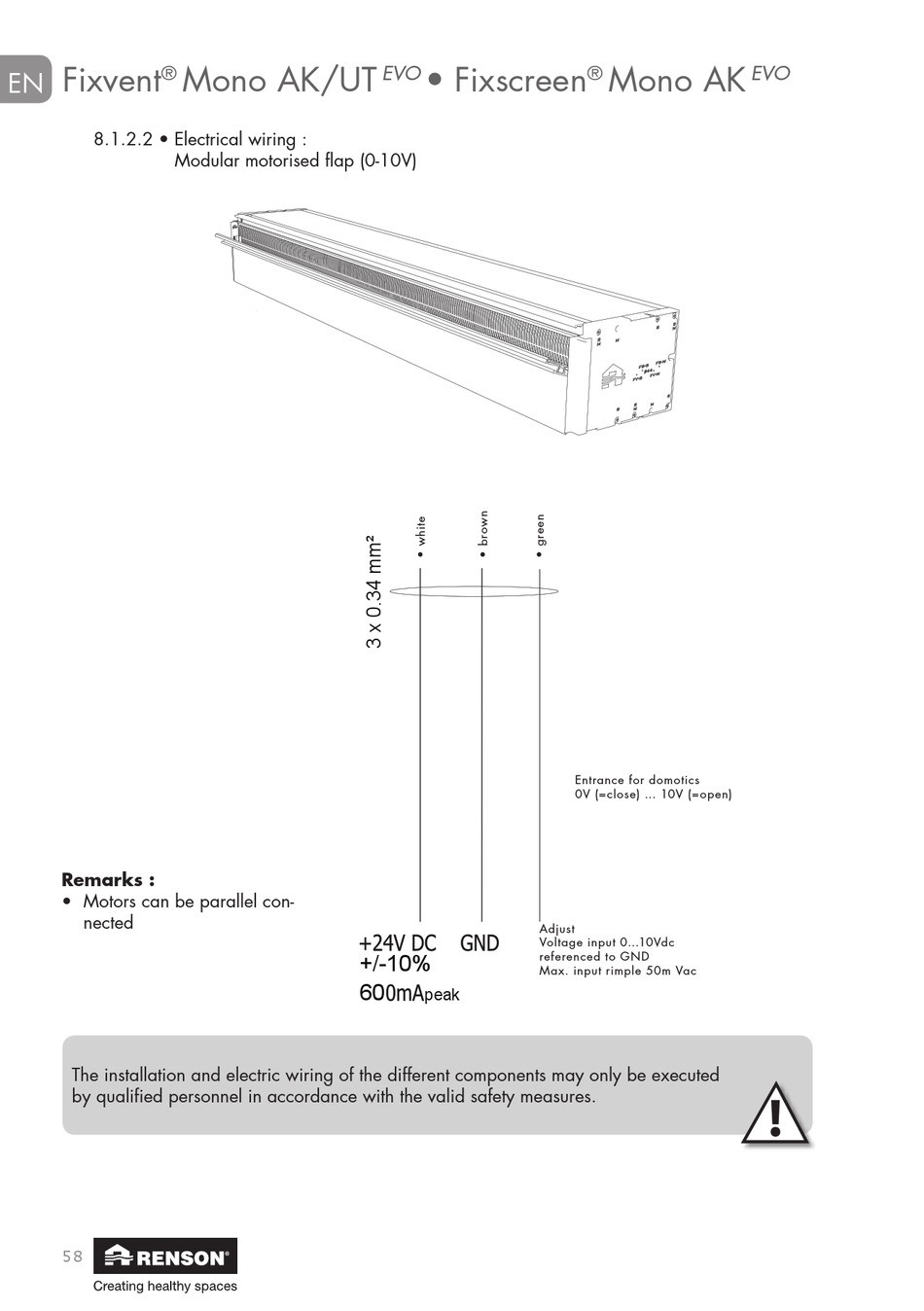

8.1.2.2 • Electrical wiring :
Modular motorised flap (0-10V)
Remarks :
• Motors can be parallel con-
nected
The installation and electric wiring of the different components may only be executed
by qualified personnel in accordance with the valid safety measures.
58
• Fixscreen
EVO
+/-10%
60
peak
Mono AK
®
Entrance for domotics
0V (=close) ... 10V (=open)
Adjust
Voltage input 0...10Vdc
referenced to GND
Max. input rimple 50m Vac
EVO
