Fixvent Mono AK/UT
®

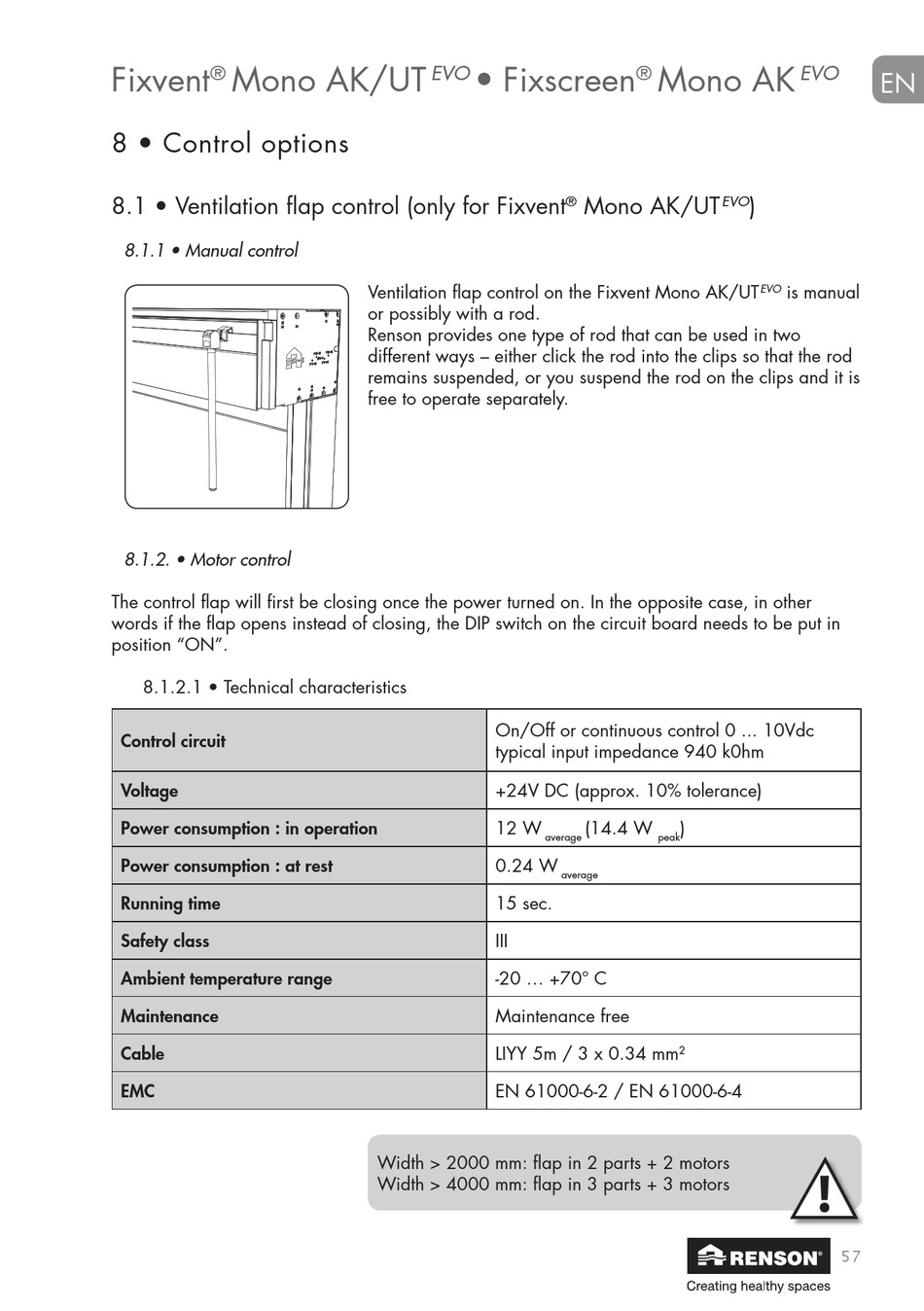

8 • Control options
8.1 • Ventilation flap control (only for Fixvent
8.1.1 • Manual control
8.1.2. • Motor control
The control flap will first be closing once the power turned on. In the opposite case, in other
words if the flap opens instead of closing, the DIP switch on the circuit board needs to be put in
position "ON".
8.1.2.1 • Technical characteristics
Control circuit
Voltage
Power consumption : in operation
Power consumption : at rest
Running time
Safety class
Ambient temperature range
Maintenance
Cable
EMC
• Fixscreen
EVO
Ventilation flap control on the Fixvent Mono AK/UT
or possibly with a rod.
Renson provides one type of rod that can be used in two
different ways – either click the rod into the clips so that the rod
remains suspended, or you suspend the rod on the clips and it is
free to operate separately.
On/Off or continuous control 0 ... 10Vdc
typical input impedance 940 k0hm
+24V DC (approx. 10% tolerance)
12 W
0.24 W
15 sec.
III
-20 ... +70° C
Maintenance free
LIYY 5m / 3 x 0.34 mm
EN 61000-6-2 / EN 61000-6-4
Width > 2000 mm: flap in 2 parts + 2 motors
Width > 4000 mm: flap in 3 parts + 3 motors
Mono AK
®
Mono AK/UT
®
(14.4 W )
average peak
average
2
EVO
en
)
EVO
is manual
EVO
57
