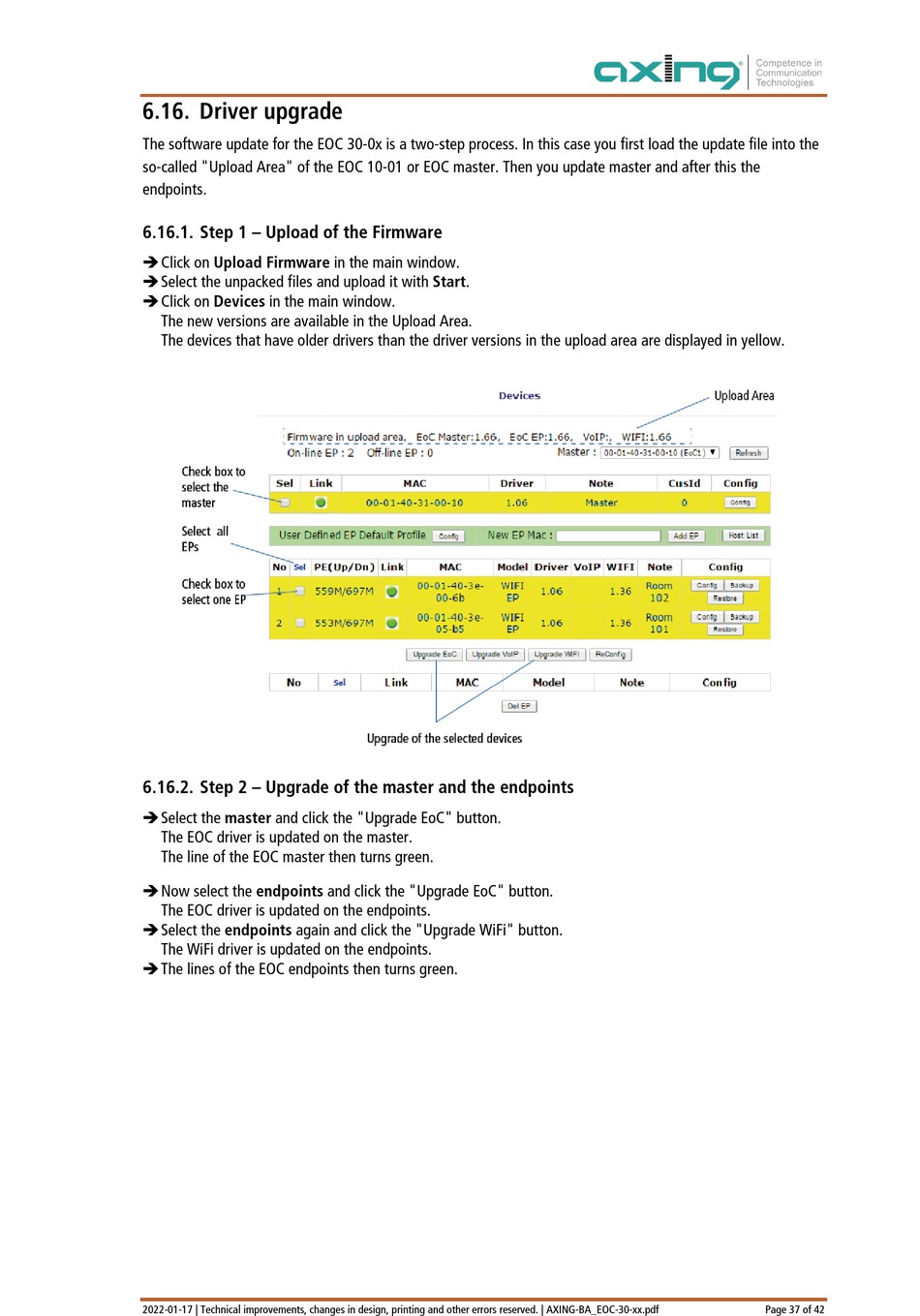

6.16. Driver upgrade
The software update for the EOC 30-0x is a two-step process. In this case you first load the update file into the
so-called "Upload Area" of the EOC 10-01 or EOC master. Then you update master and after this the
endpoints.
6.16.1. Step 1 – Upload of the Firmware
 Click on Upload Firmware in the main window.
 Select the unpacked files and upload it with Start.
 Click on Devices in the main window.
The new versions are available in the Upload Area.
The devices that have older drivers than the driver versions in the upload area are displayed in yellow.
6.16.2. Step 2 – Upgrade of the master and the endpoints
 Select the master and click the "Upgrade EoC" button.
The EOC driver is updated on the master.
The line of the EOC master then turns green.
 Now select the endpoints and click the "Upgrade EoC" button.
The EOC driver is updated on the endpoints.
 Select the endpoints again and click the "Upgrade WiFi" button.
The WiFi driver is updated on the endpoints.
 The lines of the EOC endpoints then turns green.
