Operation Instructions | Ethernet over Coax Master/Endpoint

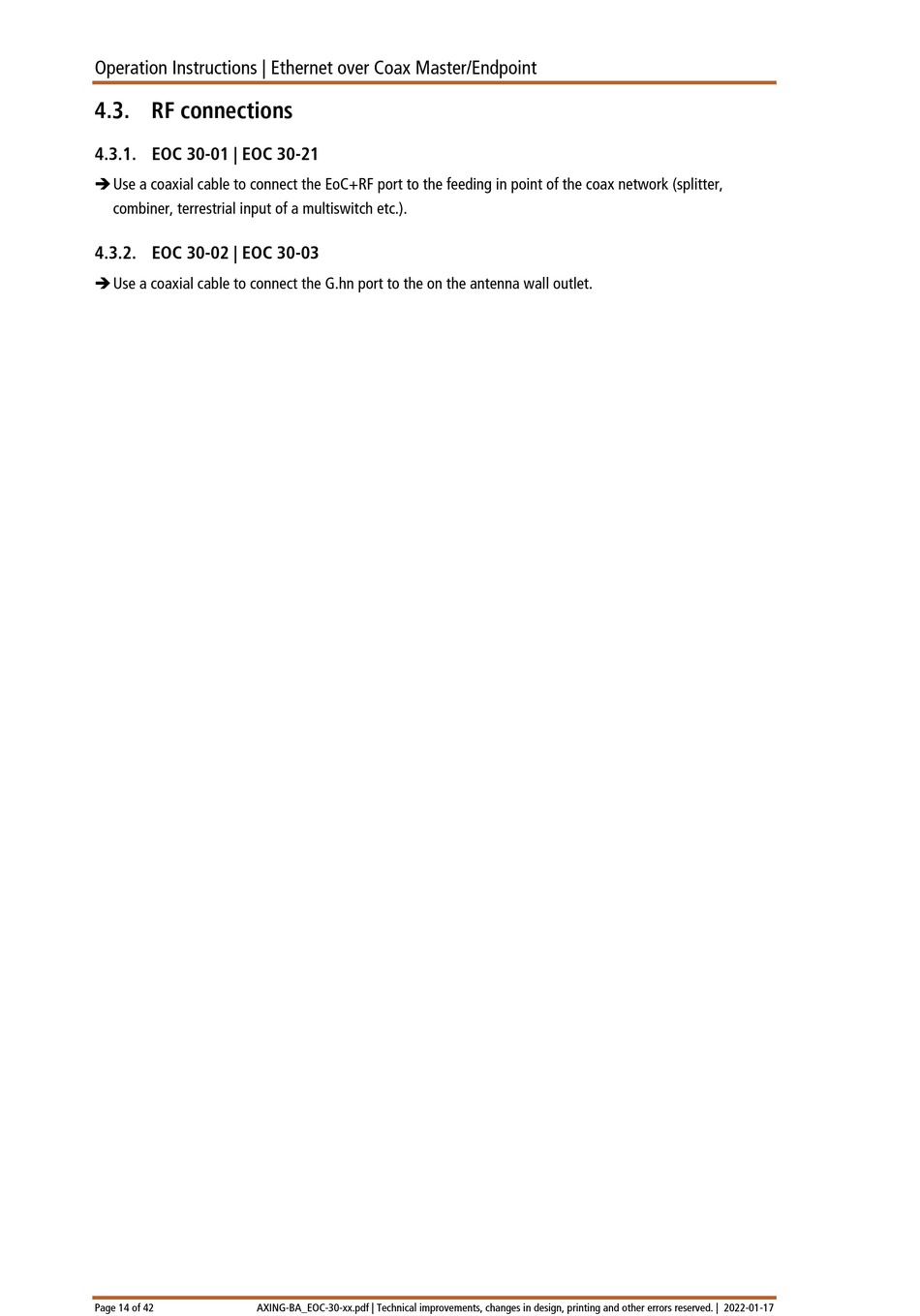

4.3. RF connections
4.3.1. EOC 30-01 | EOC 30-21
 Use a coaxial cable to connect the EoC+RF port to the feeding in point of the coax network (splitter,
combiner, terrestrial input of a multiswitch etc.).
4.3.2. EOC 30-02 | EOC 30-03
 Use a coaxial cable to connect the G.hn port to the on the antenna wall outlet.
