Green: Endpoint is active – on-line. For master device, Green always unless master's EOC driver is
broken.
Yellow: Endpoint is active – in-configuring. EOC master NMU is initializing the endpoint, turns to Green
while the endpoint initialization has been completed.
Red: Endpoint is active – unrecognized, and cannot be configured by EOC master NMU.
Gray: Endpoint is not active – off-line, either user powers it off or cabling has trouble.
MAC: EOC MAC address.
Model: the current queried EOC endpoint model name
Driver: the current queried working (running) EOC master or endpoint driver version.
WiFi: the current queried working (running) endpoint WiFi driver version.
Note: used to denote master for EOC coax network; to denote endpoint end-user for recording info
like user name or address.
Config: 1. configure EOC master
2. configure EOC endpoints
3. configure the "User Defined EP Default Profile"
Upgrade EoC upgrades the selected master/endpoint(s) EOC driver with new driver resides at the
Full Flash: EOC master upload area .
Upgrade WiFi: upgrades the selected endpoint(s) WiFi driver with the new one resides at the EOC master
upload area.
ReConfig: forcees to configure endpoint G.hn (Ethernet)/WiFi settings (stored in EOC master) again, sync
the endpoint internal settings to what EOC master has. endpoint will reboot then.
Add EP : add the off-line endpoint setting profile, setup in advance endpoint G.hn (Ethernet)/WiFi setting
profile before it goes on-line.
Del EP: delete the off-line endpoint setting profile, to save the endpoint setting profile space in EOC
master NMU.

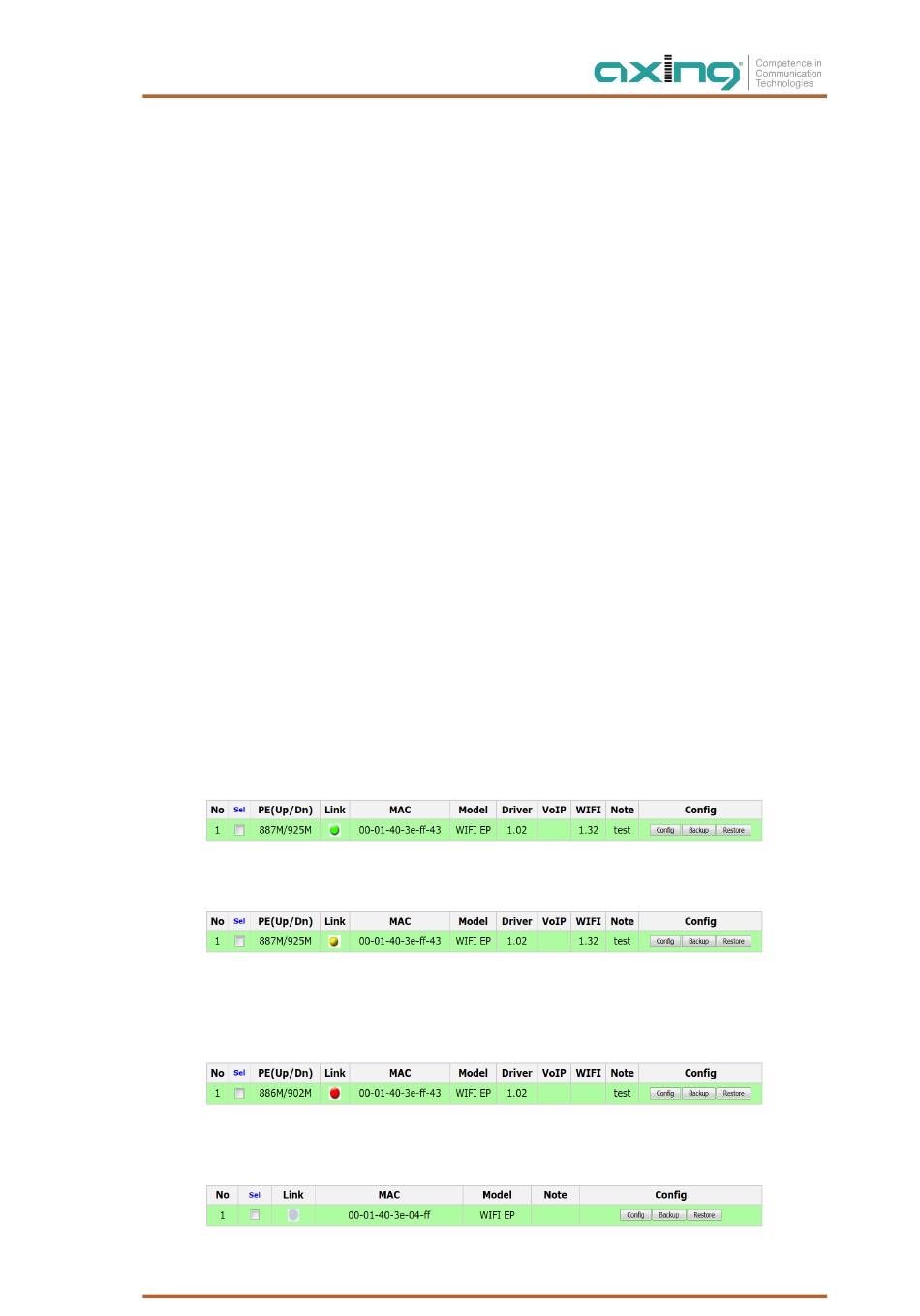

Link in Green – endpoint is ready
Endpoint has been configured properly by EOC master.
Link in Yellow – endpoint is being configuring
Then turns into Green while EOC master finishes the initializing/configuring of endpoint.
Link in Red – unrecognized/configure-failed endpoint
It is a broken, unauthorized or configure-failed endpoint, and may degrade the whole EOC connection quality.
The endpoint should be checked.
Link in Gray – endpoint is power off
