6.8. Endpoint Diagnosis (Config:Diag)
master and endpoint must be in the same subnet for the diagnostic function (master = 192.168.1.2, endpoint 1
= 192.168.1.12, endpoint 1 = 192.168.1.13, ...). Proceed to click on each endpoint's 'Config' button on the
'Devices' Window, then click on 'Measure' button in the 'Diag' Window to run the built-in on-line diagnostic
tool.

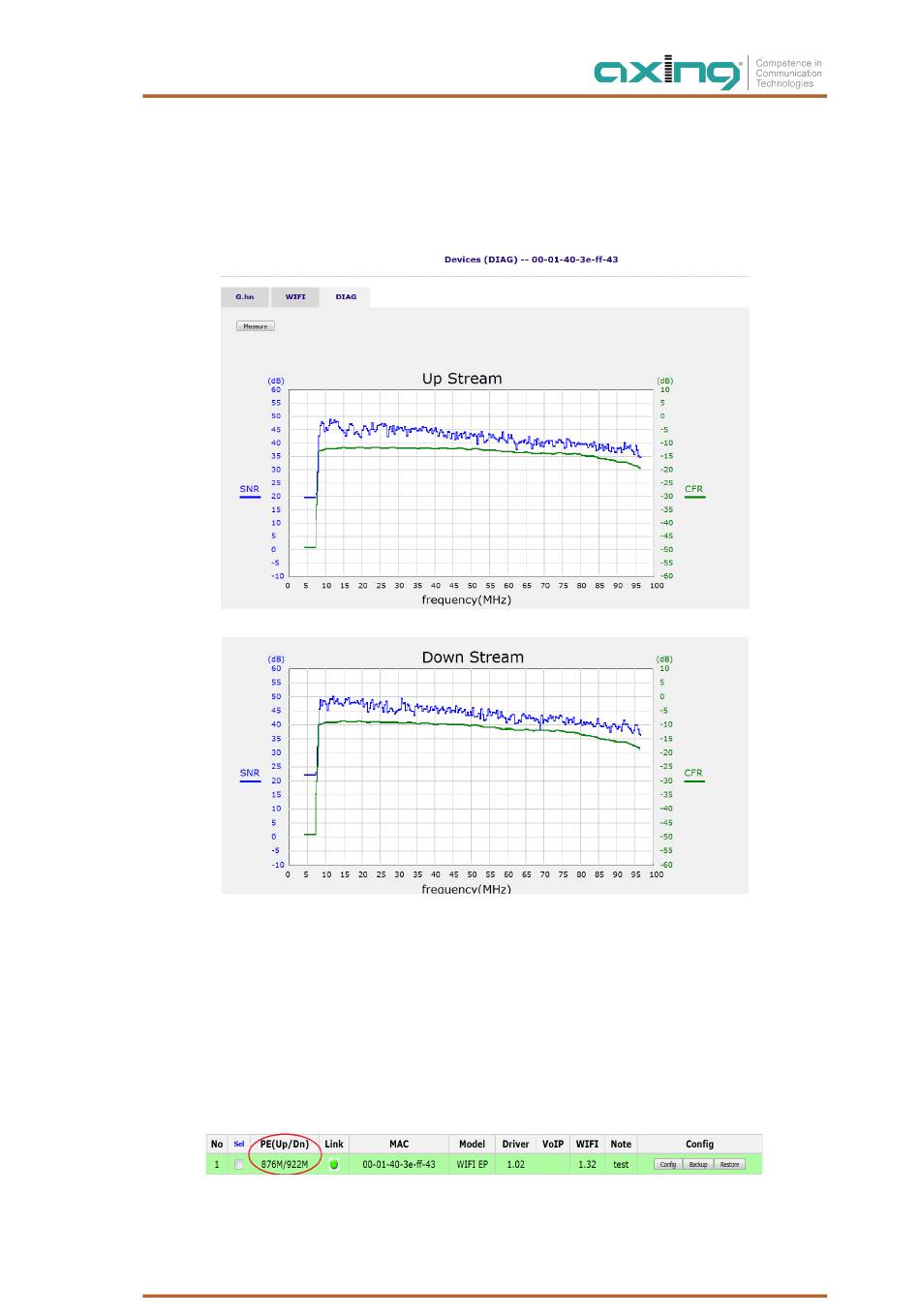

On-line Diagnosis – between master and endpoint
Diagnose the physical connection quality. Measure the connection factors 'SNR', 'CFR' and 'PE' between
targeted endpoint and master without interrupting service,
Up: Upstream, endpoint toward master direction
Dn: Downstream, master toward endpoint direction
SNR: Signal to Noise Ratio, frequency vs dB
CFR: Channel Frequency Response, frequency vs dB
PE: Payload Encoding states line/carrier speed between master and endpoint
