Loading Material

4 Loading Material
4.1

Loading Media from Roll

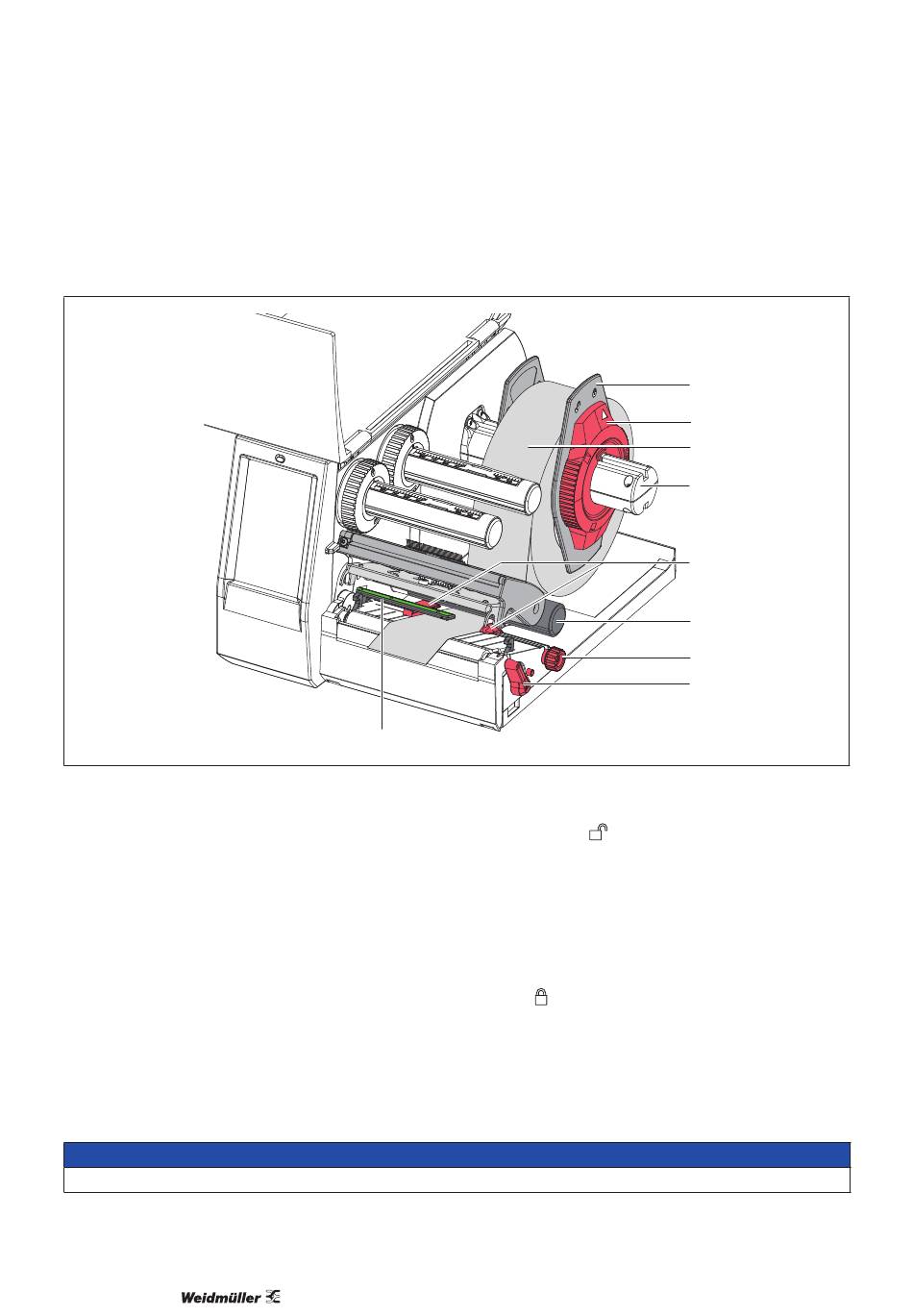

Figure 9 Loading Media from Roll
f Turn ring (2) counterclockwise, so that the arrow points to the symbol
stop (1).
f Remove the margin stop (1) from the roll retainer (4).
f Load label roll (3) on the roll retainer in such a way that the labels can be inserted into the printhead in the
right position. The printing side of the labels must be visible from above.
f Re-mount the margin stop (1) onto the roll retainer (4). Push the margin stop (1) to the roll (3) until the roll
touches both margin stops and a clear resistance is encountered.
f Turn ring (2) clockwise, so that the arrow points to the symbol , and thus fix the margin stop (1) on the
roll retainer (3).
f Turn lever (8) counterclockwise to open printhead.
f Position guides (5) by turning the knob (7) so that they are several millimeters wider than the material.
f Position material below the roller (6) and guide it through the print unit.
Guide material through the print unit below the label sensor (9).
