Touchscreen display
In the headline several information are displayed as widgets depending on the configuration:

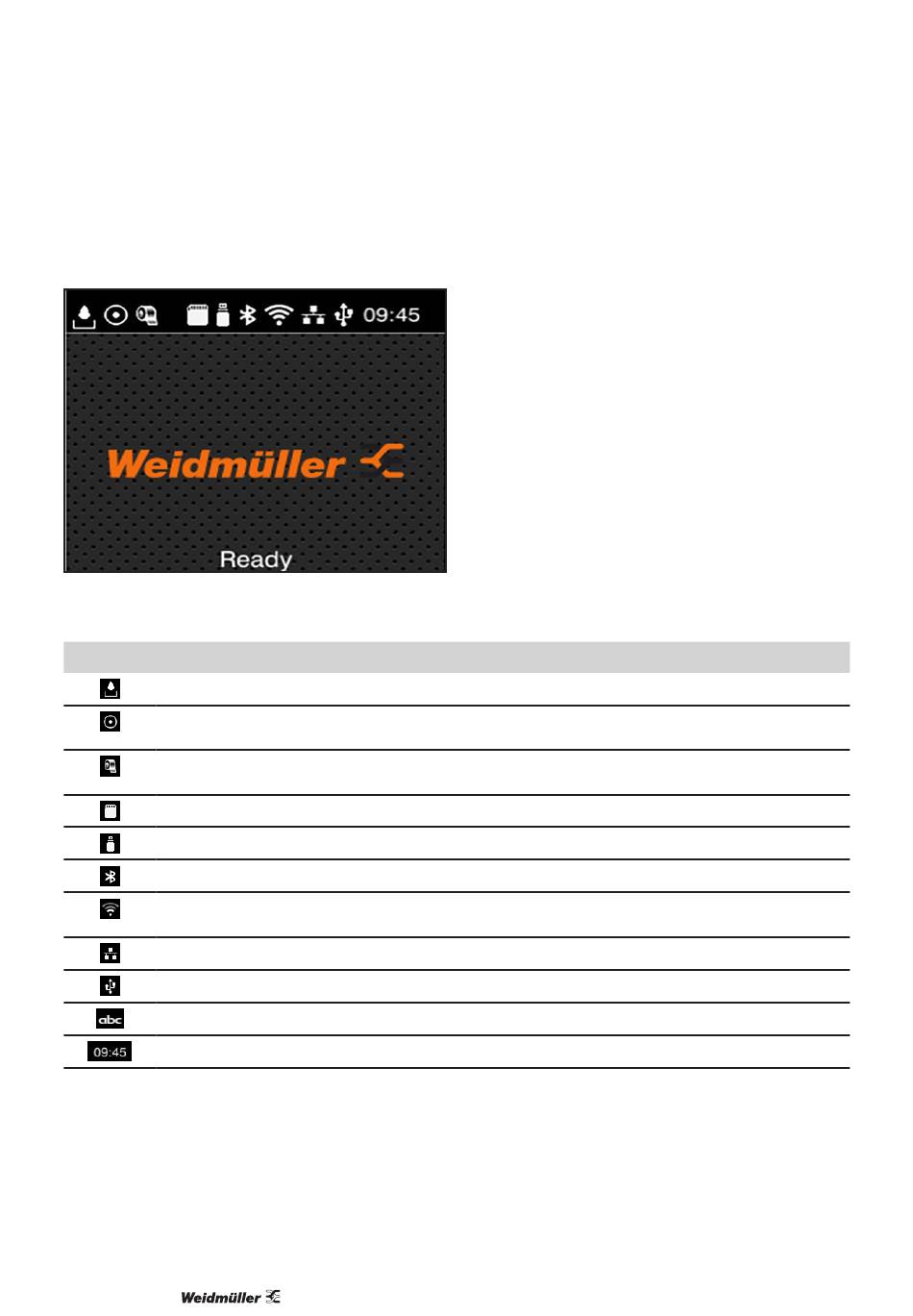

Figure 6 Widgets in the start screen
Symbol Function
Displays the current data transfer in the form of a falling drop.
The Save data stream function is active →Configuration manual
All received data are stored in a .lbl file.
Warning ribbon end → Configuration manual
The remaining diameter of the ribbon supply roll undershoots the set value.
SD card installed
USB memory installed
gray: Bluetooth adapter installed, white: Bluetooth connection active
WiFi connection active
The WiFi strength is displayed by the number of white arcs.
Ethernet connection active
USB connection active
abc program active
Clock time
Table 3 Widgets in the start screen
