Controller to Pump Connection

A ten-meter long cable is to connect the controller to the pump. The
following figures show the controller output connector configuration
where pins:

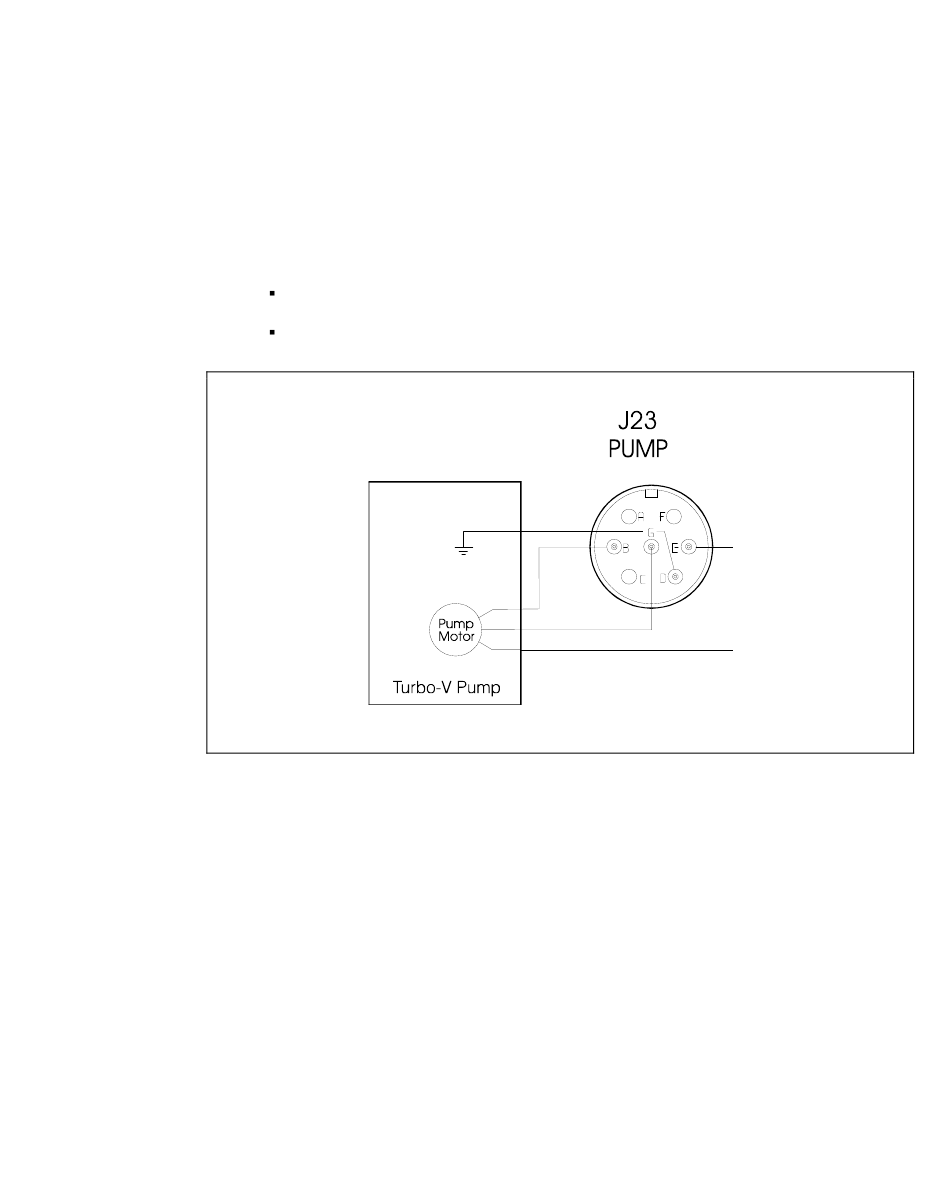

Figure 11
Turbo-V 6000 Controller User Manual / 87-900-855-01
B-G-E = 100 Vac 3-phase output to pump motor stator
D = ground
Controller-to-pump connector (applicable to model 969-9491 and
969-9591)
Connection P1 Logic Input Interconnections
(F)
