Connection J1 Remote I/O Interconnections

Controller-to-Pump Connection

A five-meter long cable is provided to connect the controller to the
pump. The following figures show the pump connector configuration

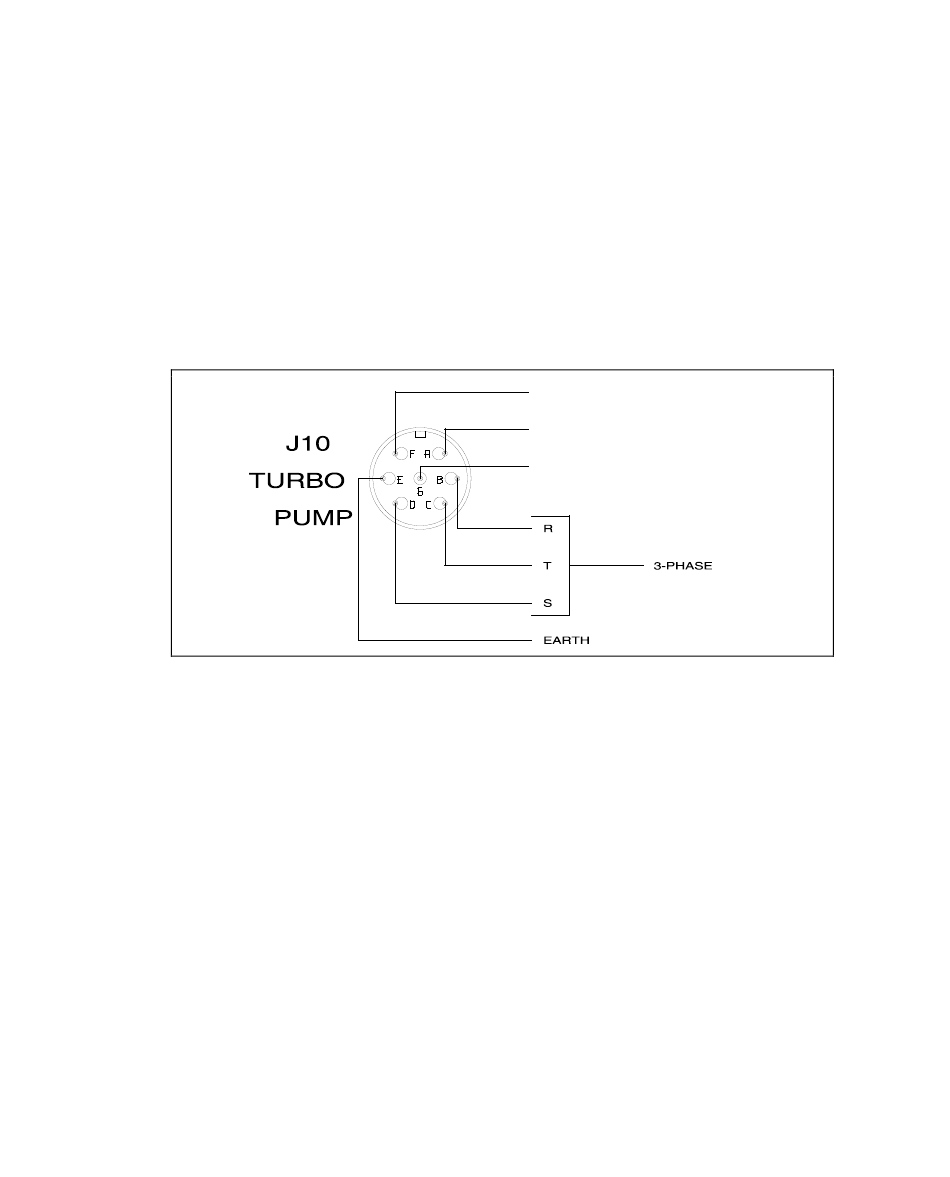

where pins:
B-C-D = 3-phase output to pump motor
E = ground
A-F-G = Reserved for AGILENT use
Figure 16
The pump cable can be extended by means of an optional extension
cable (see Orderable Parts table).
224/284
Pump connector
TwisTorr Medium-TMP Rack Controller User Manual / 87-901-049-01
Reserved
For AGILENT use
