Pin 3-8 must be shorted to allow the Turbo-V 550 pump to start if no interlock
NOTE
contact is connected. if, after starting the pump, the interlock contact opens, it
has no effect on the operation and the pump continues to turn.

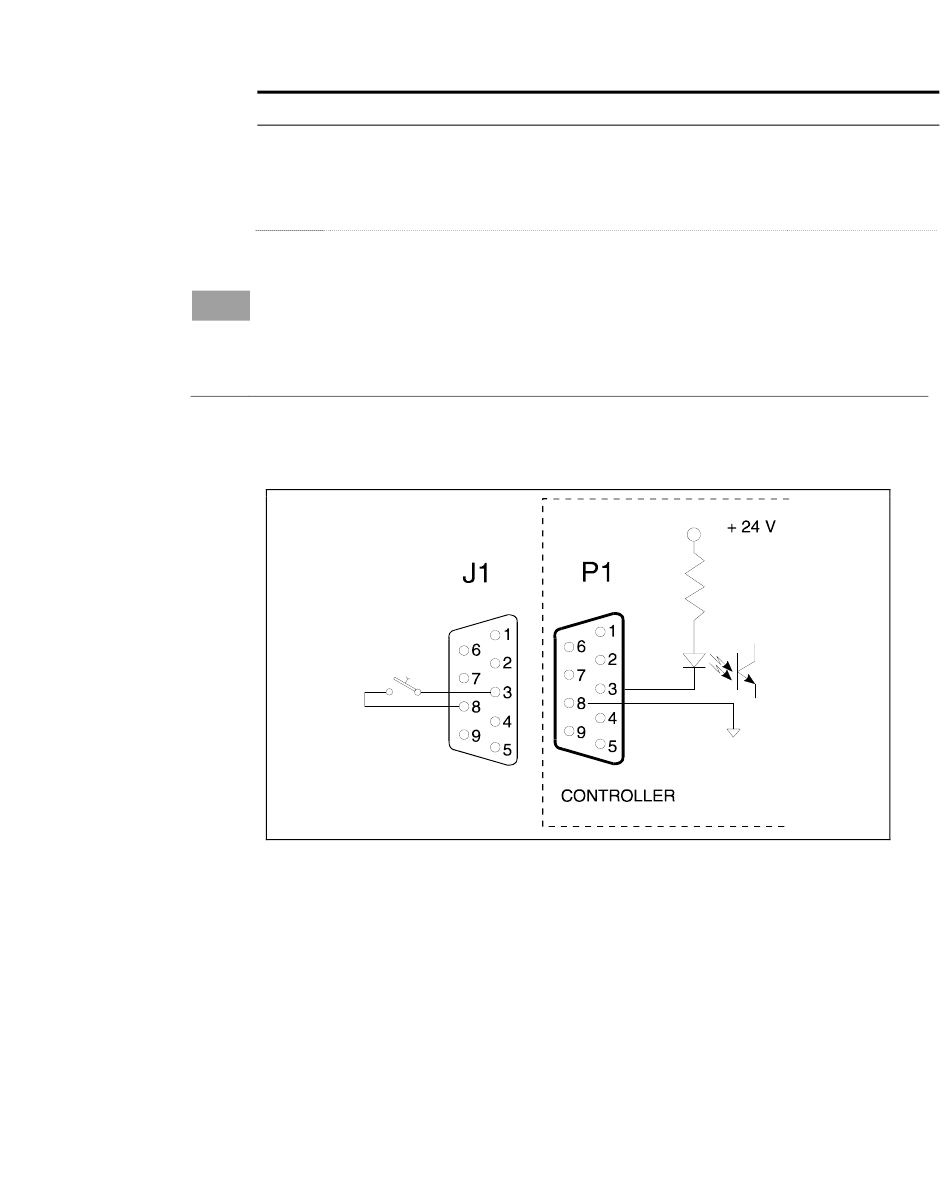

The following figure shows a typical contact logic input connection
and the related simplified circuit of the controller.
Figure 8
Turbo-V 6000 Controller User Manual / 87-900-855-01
Connection P1 Logic Input Interconnections
DESCRIPTION
SYSTEM OVERRIDE optically isolated from the internal circuit, this signal is
used to stop the pump in emergency condition, requires a closed contact.
When the contact is closed, the turbopump and the interconnected devices are
stopped.
Typical logic input connection
Technical Information
