Temporary Mounting - ARB ELEMENTS Bedienungs- Und Serviceanleitung

Base of fridge
Drain plug
Front of
fridge freezer
Fridge Capacity
60/63qz (mm/in)
Rubber mounting foot
Mounting bolt
5.2.2

Temporary mounting

ARB recommends that the ARB Tie Down Kit be used to mount the fridge to solid
anchorage points. This kit includes a quick release feature to allow the fridge to be
quickly and easily released from its mounting position.
D E
182/7.2 182/7.2

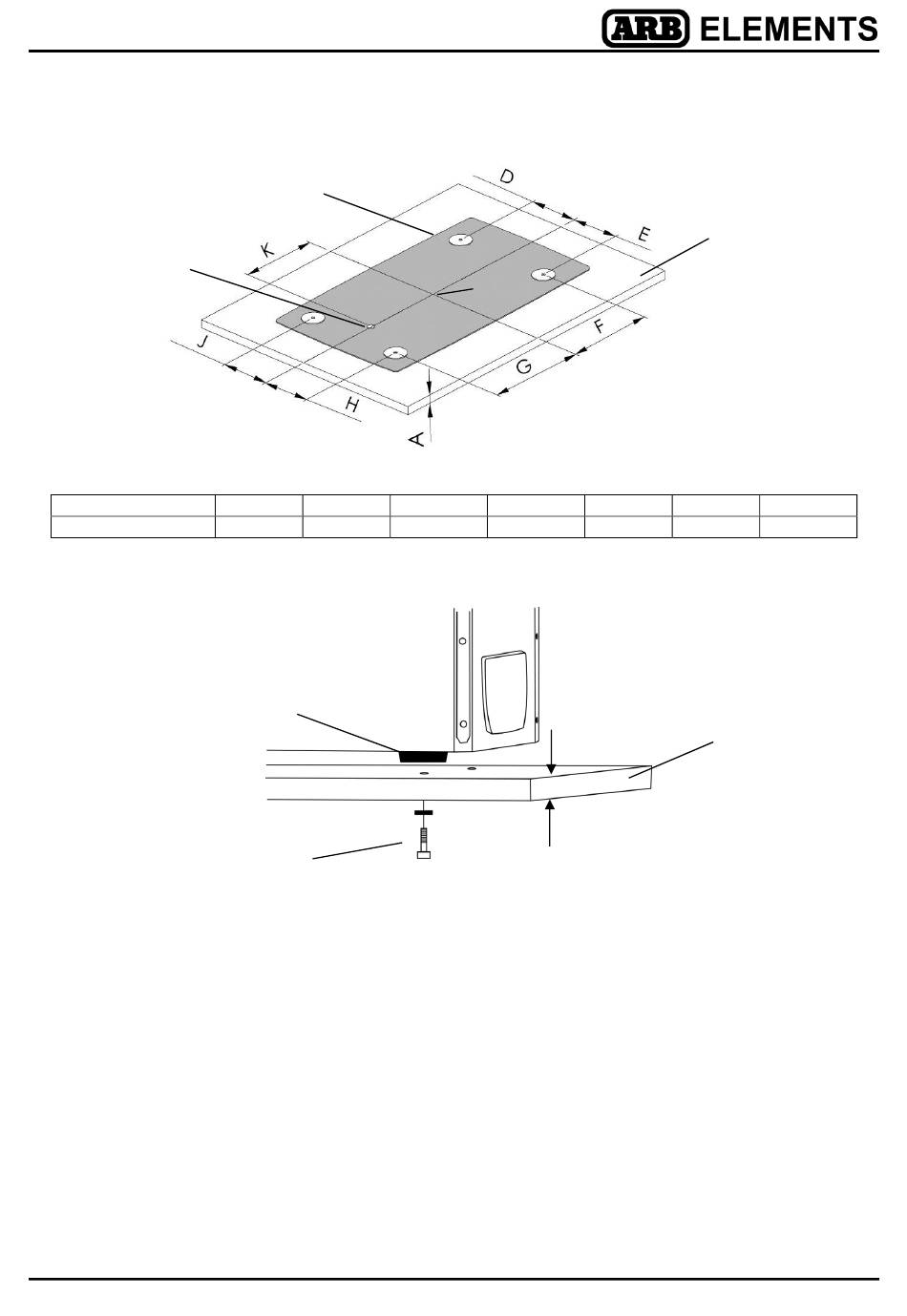

Figure 5a
C
A = Thickness of mounting surface
F G
365/14.4 365/14.4
Figure 5b
A
Mounting
surface
Dimensions in mm
H J
182/7.2 182 7.2
Mounting surface
of thickness 'A' mm
K
266/10.5
8
