To change the battery protection level:
 Open lid and turn the fridge on.
 Press
three times to display current battery protection setting.
 Press or
Medium (nEd) and Low (Lo).
 After 5 to 6 seconds of inactivity, the display will flash and return to displaying the
current cabinet temperature.
High

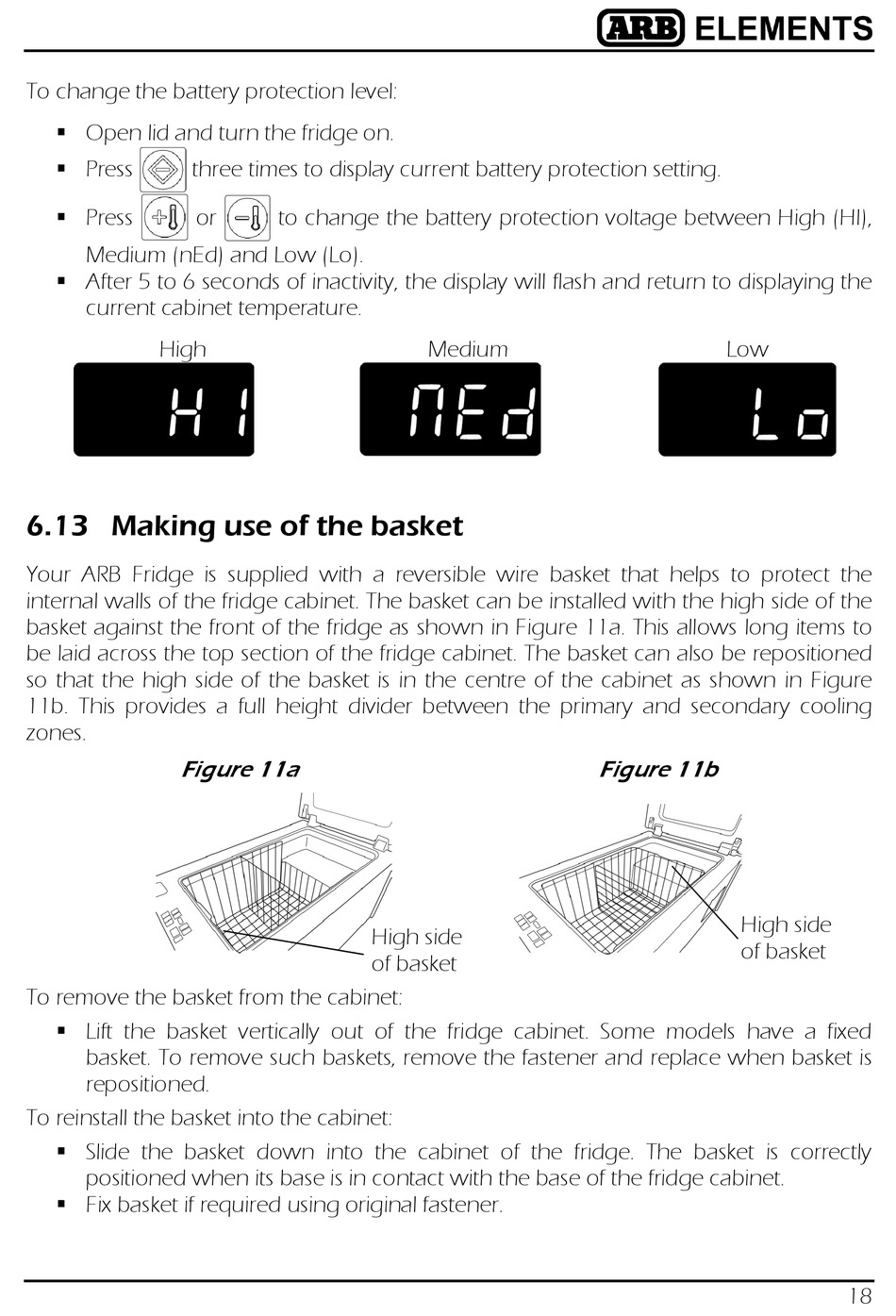

6.13 Making use of the basket

Your ARB Fridge is supplied with a reversible wire basket that helps to protect the
internal walls of the fridge cabinet. The basket can be installed with the high side of the
basket against the front of the fridge as shown in Figure 11a. This allows long items to
be laid across the top section of the fridge cabinet. The basket can also be repositioned
so that the high side of the basket is in the centre of the cabinet as shown in Figure
11b. This provides a full height divider between the primary and secondary cooling
zones.
Figure 11a
To remove the basket from the cabinet:
 Lift the basket vertically out of the fridge cabinet. Some models have a fixed
basket. To remove such baskets, remove the fastener and replace when basket is
repositioned.
To reinstall the basket into the cabinet:
 Slide the basket down into the cabinet of the fridge. The basket is correctly
positioned when its base is in contact with the base of the fridge cabinet.
 Fix basket if required using original fastener.
to change the battery protection voltage between High (HI),
Medium
High side
of basket
Low
Figure 11b
High side
of basket
18
