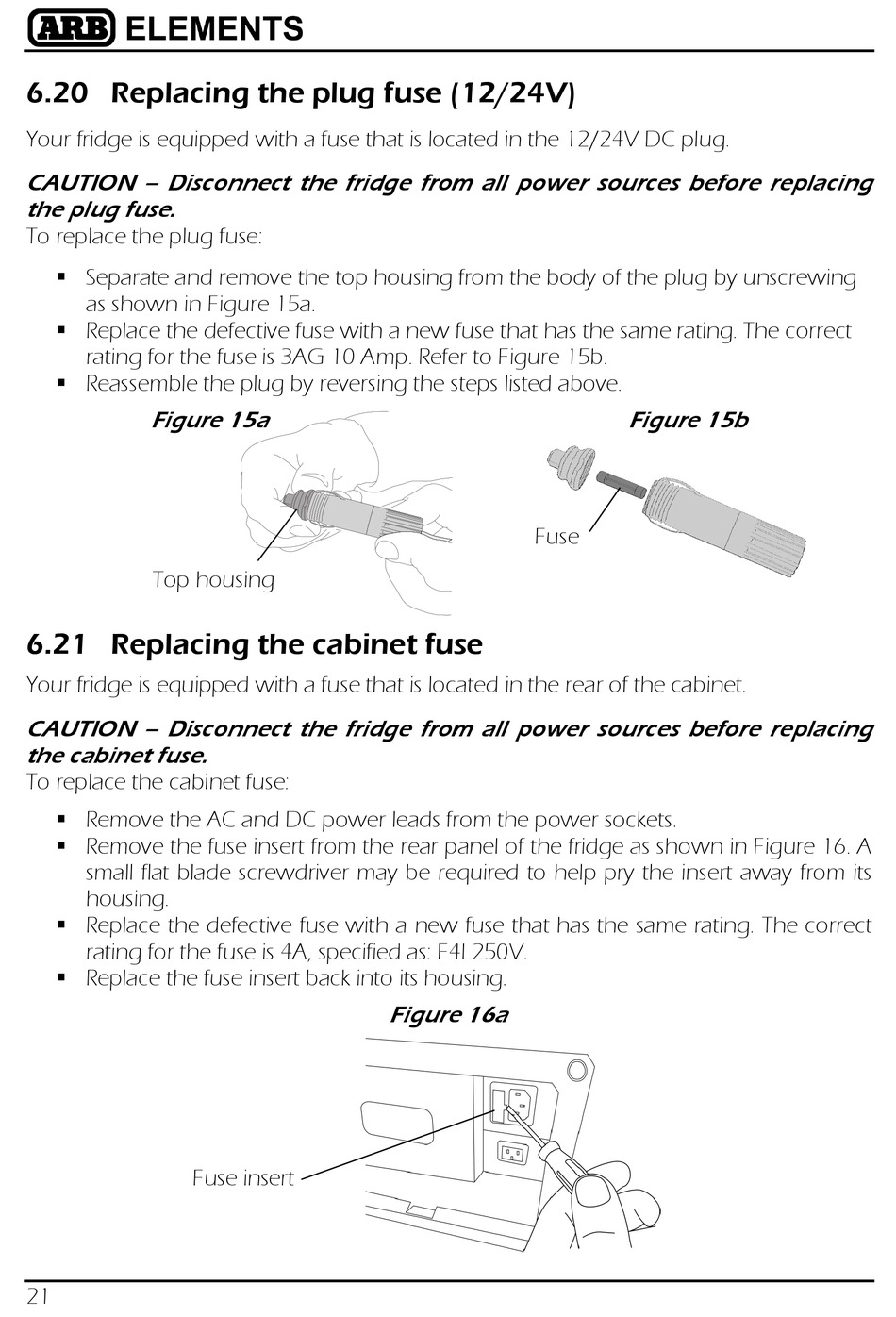

6.20 Replacing the plug fuse (12/24V)

Your fridge is equipped with a fuse that is located in the 12/24V DC plug.
CAUTION – Disconnect the fridge from all power sources before replacing
the plug fuse.
To replace the plug fuse:
 Separate and remove the top housing from the body of the plug by unscrewing
as shown in Figure 15a.
 Replace the defective fuse with a new fuse that has the same rating. The correct
rating for the fuse is 3AG 10 Amp. Refer to Figure 15b.
 Reassemble the plug by reversing the steps listed above.
Figure 15a
Top housing

6.21 Replacing the cabinet fuse

Your fridge is equipped with a fuse that is located in the rear of the cabinet.
CAUTION – Disconnect the fridge from all power sources before replacing
the cabinet fuse.
To replace the cabinet fuse:
 Remove the AC and DC power leads from the power sockets.
 Remove the fuse insert from the rear panel of the fridge as shown in Figure 16. A
small flat blade screwdriver may be required to help pry the insert away from its
housing.
 Replace the defective fuse with a new fuse that has the same rating. The correct
rating for the fuse is 4A, specified as: F4L250V.
 Replace the fuse insert back into its housing.
Fuse insert
21
Fuse
Figure 16a
Figure 15b
