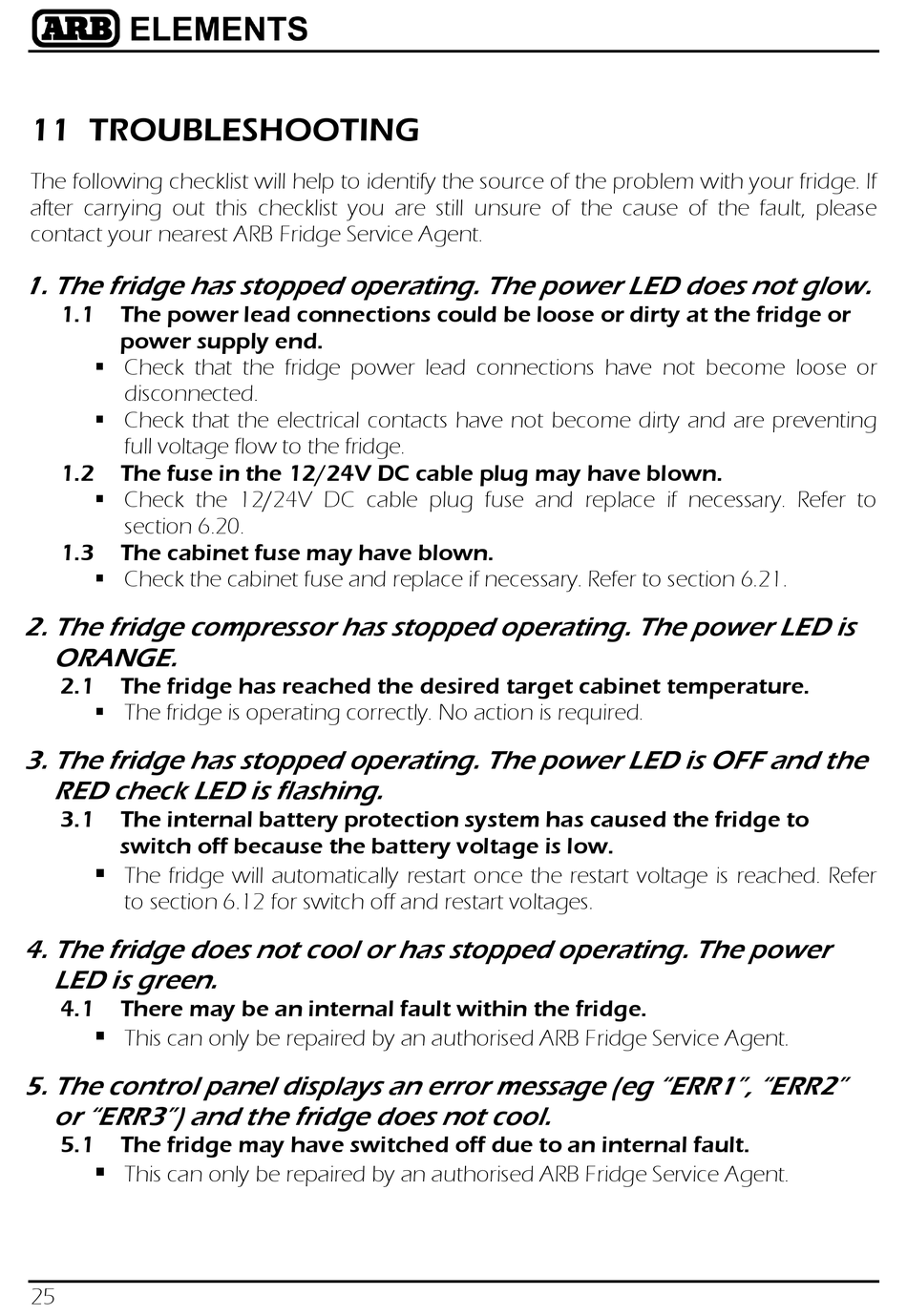

11 TROUBLESHOOTING

The following checklist will help to identify the source of the problem with your fridge. If
after carrying out this checklist you are still unsure of the cause of the fault, please
contact your nearest ARB Fridge Service Agent.
1. The fridge has stopped operating. The power LED does not glow.
1.1 The power lead connections could be loose or dirty at the fridge or
power supply end.
 Check that the fridge power lead connections have not become loose or
disconnected.
 Check that the electrical contacts have not become dirty and are preventing
full voltage flow to the fridge.
1.2 The fuse in the 12/24V DC cable plug may have blown.
 Check the 12/24V DC cable plug fuse and replace if necessary. Refer to
section 6.20.
1.3 The cabinet fuse may have blown.
 Check the cabinet fuse and replace if necessary. Refer to section 6.21.
2. The fridge compressor has stopped operating. The power LED is
ORANGE.
2.1 The fridge has reached the desired target cabinet temperature.
 The fridge is operating correctly. No action is required.
3. The fridge has stopped operating. The power LED is OFF and the
RED check LED is flashing.
3.1 The internal battery protection system has caused the fridge to
switch off because the battery voltage is low.

The fridge will automatically restart once the restart voltage is reached. Refer
to section 6.12 for switch off and restart voltages.
4. The fridge does not cool or has stopped operating. The power
LED is green.
4.1 There may be an internal fault within the fridge.

This can only be repaired by an authorised ARB Fridge Service Agent.
5. The control panel displays an error message (eg "ERR1", "ERR2"
or "ERR3") and the fridge does not cool.
5.1 The fridge may have switched off due to an internal fault.

This can only be repaired by an authorised ARB Fridge Service Agent.
