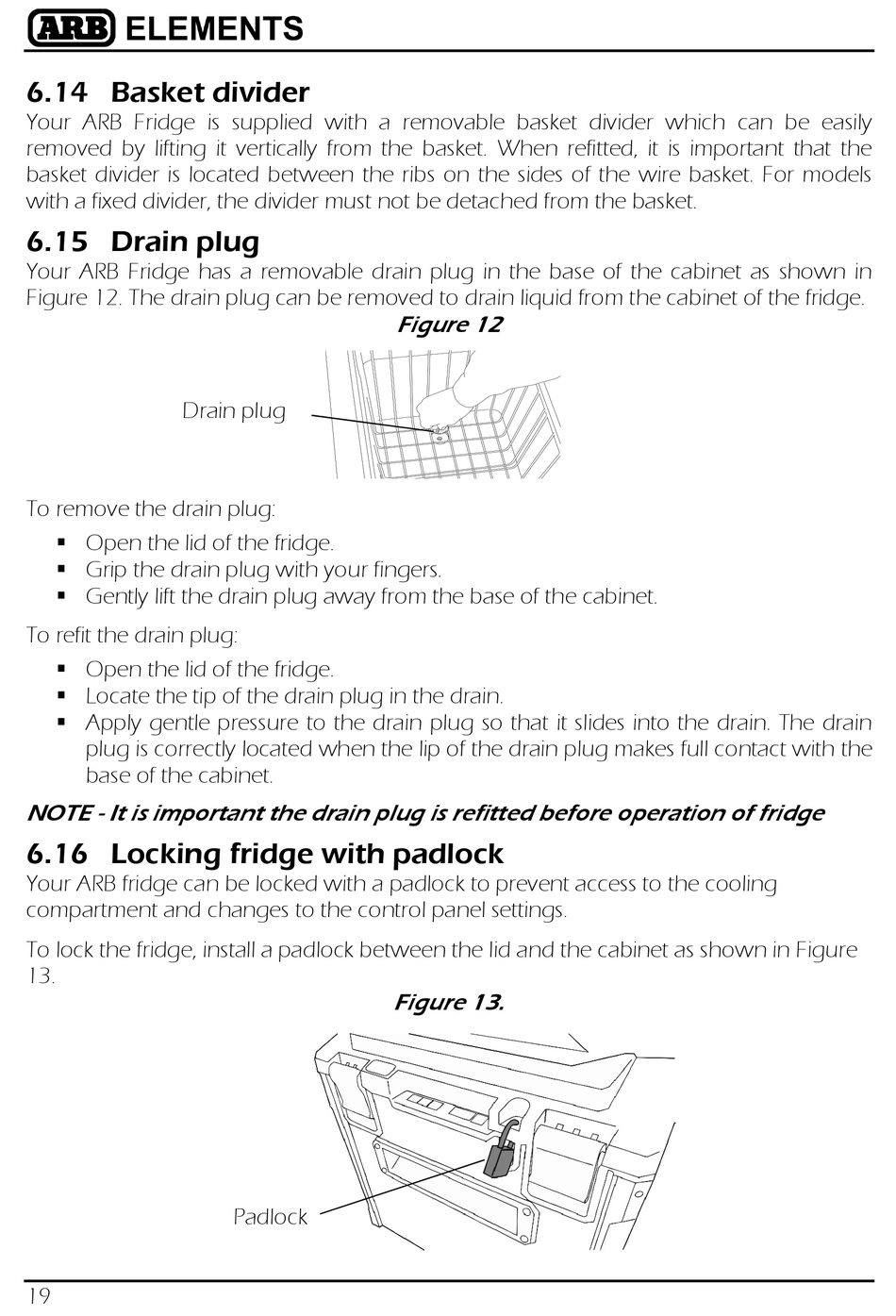

Basket Divider; Drain Plug; Locking Fridge With Padlock - ARB ELEMENTS Bedienungs- Und Serviceanleitung

6.14 Basket divider

Your ARB Fridge is supplied with a removable basket divider which can be easily
removed by lifting it vertically from the basket. When refitted, it is important that the
basket divider is located between the ribs on the sides of the wire basket. For models
with a fixed divider, the divider must not be detached from the basket.

6.15 Drain plug

Your ARB Fridge has a removable drain plug in the base of the cabinet as shown in
Figure 12. The drain plug can be removed to drain liquid from the cabinet of the fridge.
Drain plug
To remove the drain plug:
 Open the lid of the fridge.
 Grip the drain plug with your fingers.
 Gently lift the drain plug away from the base of the cabinet.
To refit the drain plug:
 Open the lid of the fridge.
 Locate the tip of the drain plug in the drain.
 Apply gentle pressure to the drain plug so that it slides into the drain. The drain
plug is correctly located when the lip of the drain plug makes full contact with the
base of the cabinet.
NOTE - It is important the drain plug is refitted before operation of fridge

6.16 Locking fridge with padlock

Your ARB fridge can be locked with a padlock to prevent access to the cooling
compartment and changes to the control panel settings.
To lock the fridge, install a padlock between the lid and the cabinet as shown in Figure
13.
19
Figure 12
Figure 13.
Padlock
