Last Image
6

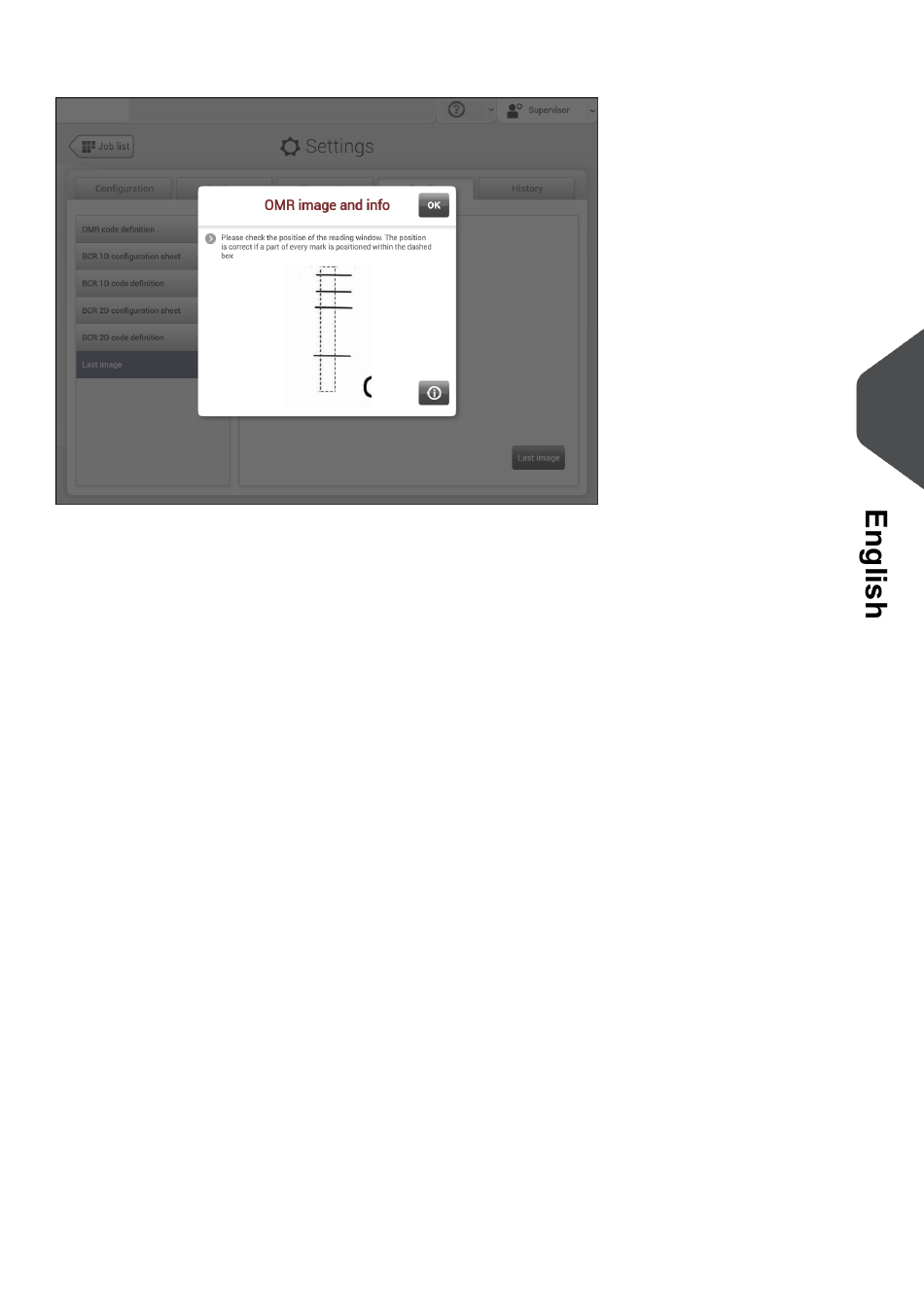

The Last image screen shows the result of the last code that the system read. The figure
shows an example of the image of an OMR code. You can use this image to see if the read
code fits within the reading window.
When you click on the Information button of an image of OMR code, the screen shows a
graphical representation of the marks read from the last OMR document (oscilloscope
function). It shows the time-dependant OMR output voltage.
