FP FPi 6600-2 Betriebsanleitung Seite 160

Test run
Thickness
detection
Tray
V-fold
versaFeeder
Vertical transport
12
Z-fold
154
A test run is intended to validate the settings of the Inserting System:
• Inspect and adjust the stop position of the envelope.
• Check the fold settings for one set.
• Check if the address is correctly positioned behind the envelope
window.
Checks the thickness of the document set. If the thickness is less or
more than the set value an error message is displayed.
Contains a stack of paper for a printer or inserter. This paper is supplied
to the machine for further processing.

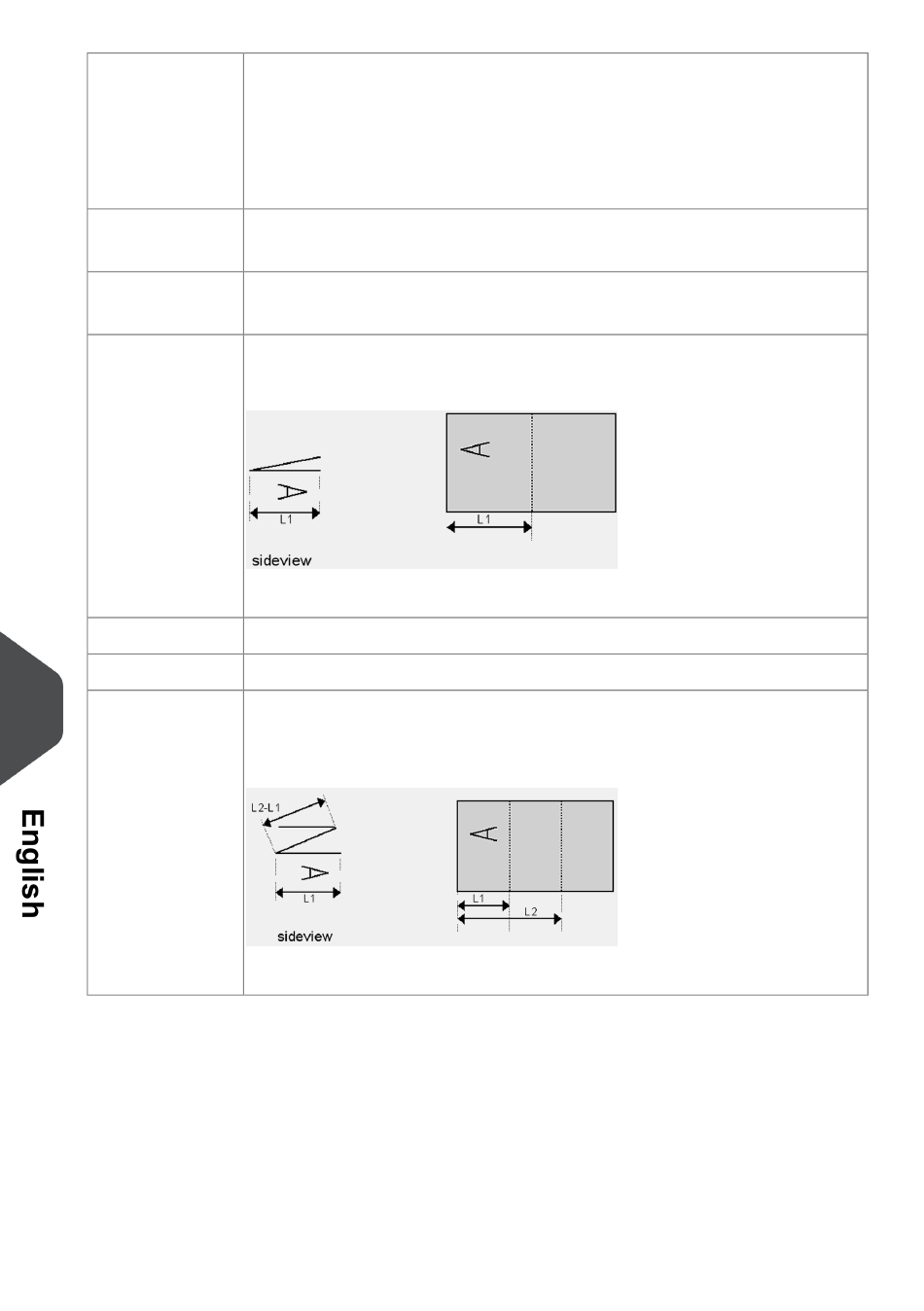

A V-fold implies the document/set is folded once. The fold-position is
adjustable. This fold is illustrated in the picture below:
Synonym: Single fold.
Booklet feeding device.
The vertical transport section between feeders and collator.
A Z-fold means that a document is folded twice in such a way that each
folded flap is on a different size of the folded document, resulting in a
Z-shape. This fold is illustrated in the picture below.
The position of both folds is adjustable. Synonyms: zigzag fold
