PLANUNG

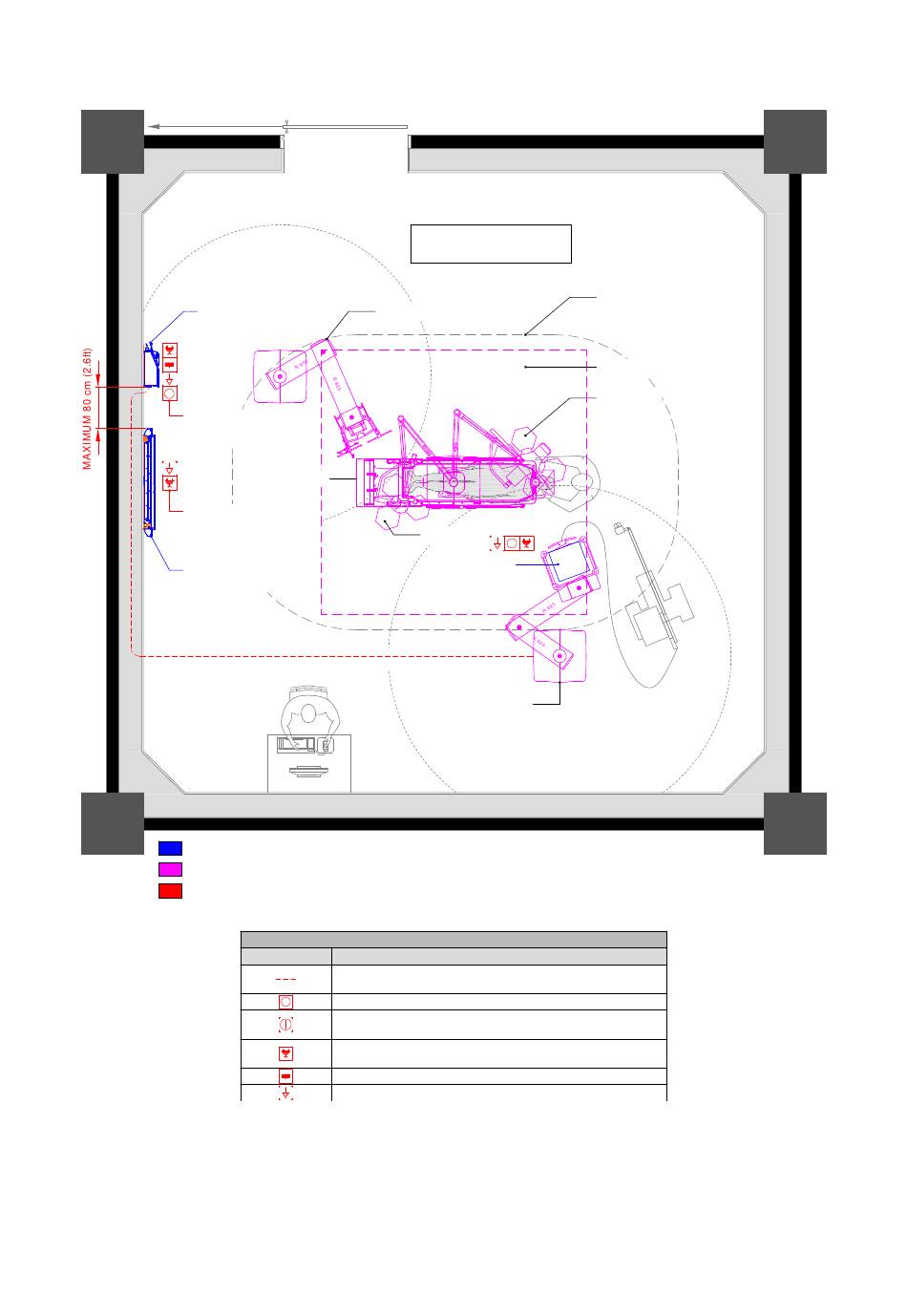

Grundriss mit seitenverkehrter Buzz-Installation:
BUZZ WORKSTATION
1x BLANKPLATE
Mandatory when connection
with VEU
1x ADDITIONAL POWER
SUPPLY
(to be considered if touch
display is not powered from
workstation )
BUZZ 42" TOUCH
DISPLAY ON-WALL
VEU OPTION: PROVIDE 1x CONDUIT FROM CSU TO BUZZ WORKSTATION
MAX. TOTAL CABLE LENGTH: 50m
NURSE STATION
(i.e. Imaging target)
BRAINLAB COMPONENTS
3RD PARTY COMPONENTS
COSTUMER INSTALLATION
Technisches Planungshandbuch Aufl. 1.3 Buzz Version 1.0
CSU ANESTHESIA
OR TABLE
OR LIGHT
VIDEO EXTENSION UNIT
FOR BUZZ (optional)
ELECTRICAL ONSITE PREPARATION
SYMBOL DESCRIPTION
CONDUITS WITH PULL WIRE
BLANKPLATE FOR CABLE FEED THROUGH
POWER SWITCH, INSTALLATION ACCORDING TO NATIONAL
GUIDELINES
STANDARD POWER OUTLET - ACCORDING TO LOCAL NORMS,
RECOMMENDED GENERATOR AND UPS BACKED UP
RJ45 NETWORK SOCKET (HOSPITAL NETWORK)
POTENTIAL EQUALIZATION (OPTIONAL)
OPERATING ROOM
PATIENT ENVIRONMENT
LAMINAR AIRFLOW FIELD
OR LIGHT
1.03
CSU SURGERY
Abbildung 23
